TEKLECTRIC LA-YK04 Operation Instruction

Operation Instruction
SPECIFICATION
Pug-in Remote Control
Model: LA-YK04+LA-RC02
Voltage: 125VAC, 60Hz
Max.load: 15A Resistive or General purpose, 10A/1250W Tungsten, 1/2HP
Remote battery: 1PC CR2032 3V
Radio frequency: 433.92MHz
Operation distance:about 80 feet in open area.
For indoor use only.
OPERATION
1.Put battery in the remote.
Open battery cover of the remote and put 1PC CR2032 3V battery in it.Then press button of remote once to check whether it
can work. If LED indicator turns on, it means this remote works well.

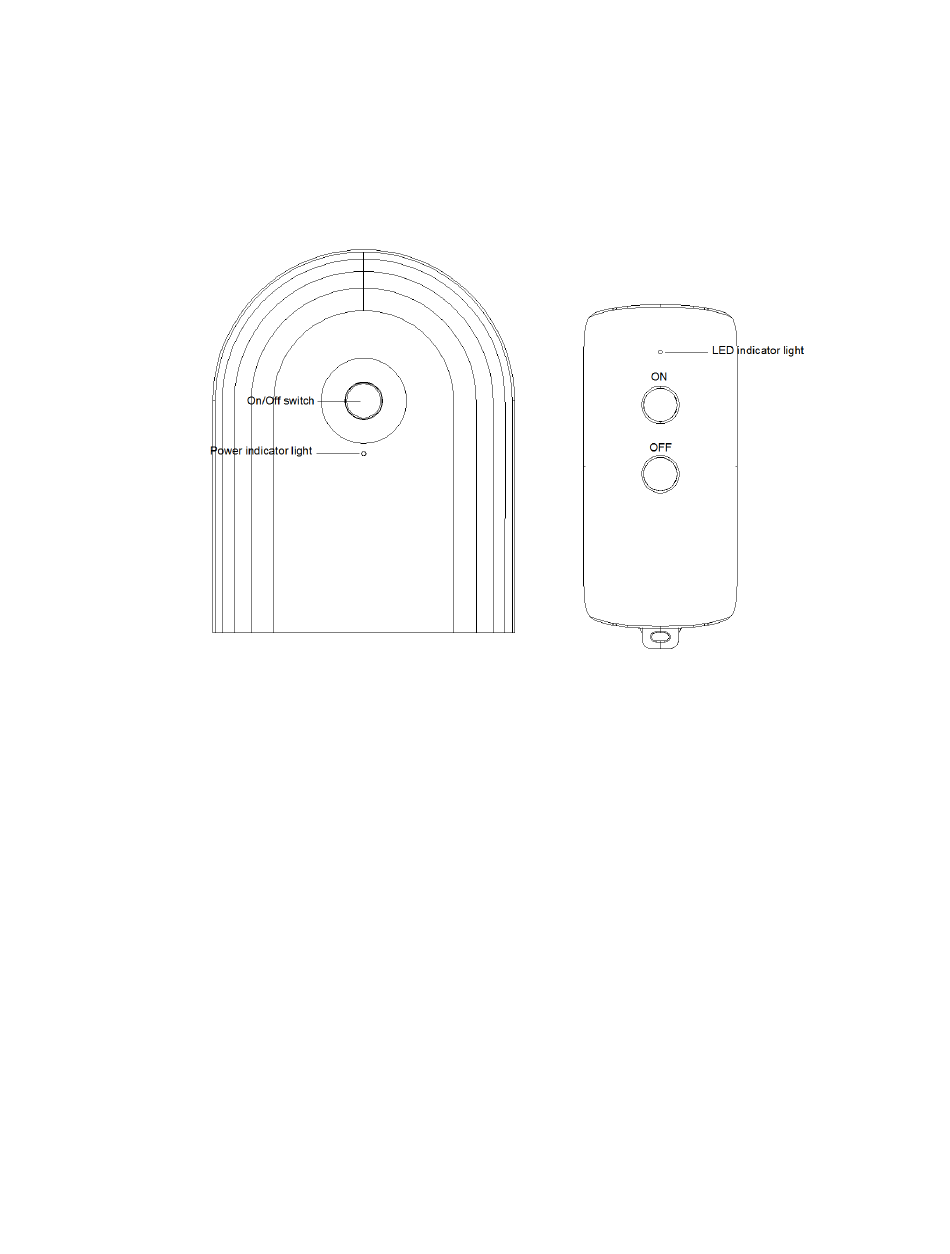

2.Plug the timer into a GFCI protected receptacle. Press the remote control socket ON/OFF switch, and the power indicator
light will light up.
3.Pairing with remote (remote function)
a.Press hold ON/OFF Switch for at least 5 seconds, Power indicator light of the Remote Control Socket is slowly flash. Enter
into learning mode.(Please note: The timer will exit learning mode after 20 seconds without any operation).
b.Press ON button of the remote once to pair with the timer. Once successfully, LED indicator of the timer stops flash and keeps
on.
c.Now you can turn on/off Remote Control Socket.
Power indicator light of the timer turns on, it means power is on. In contrast, power is off.
4.Clear the pairing
a.Press hold ON/OFF Switch for at least 5 seconds, Power indicator light of the Remote Control Socket is slowly flash, Enter
into learning mode.
Please note: The timer will exit learning mode after 20 seconds without any operation.
b.Press On/Off switch of the Remote Control Socket once to clear the pairing. Once successfully, LED indicator of the
Remote Control Socket stop flashing。
WARNINGS
Risk of Electric Shock
- Keep children away.
