Equator ECR 244 Owner's Manual

Electric cooking range
Hide thumbs

Advertisement

Table of Contents

Electric Cooking Range
Model - ECR 244

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECR 244 and is the answer not in the manual?

Questions and answers

Summary of Contents for Equator ECR 244

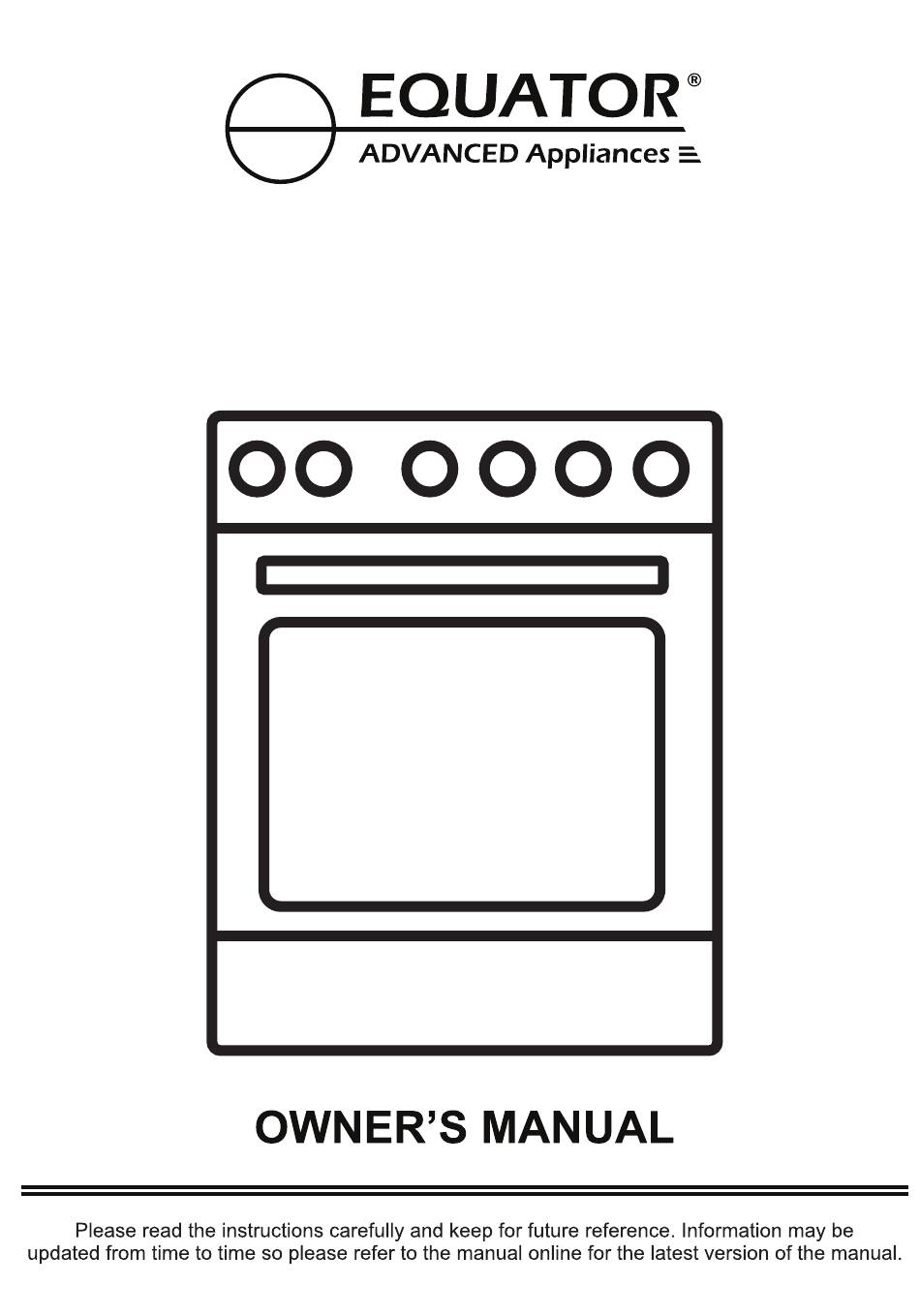

  • Page 1 Electric Cooking Range Model - ECR 244...
  • Page 2 Installation - e.g. Insufficient spacing around appliance...
  • Page 4 Congratulations on your new Electric Cooking Range! In addition to its contemporary design, this is a highly sophisticated engineered product that will give you many years of satisfaction. Here are some of the best reasons for buying your appliance for the ultimate cooking experience: •...
  • Page 5 Safety Read and follow all safety instructions before installing and using this appliance. WARNING or CAUTION statements and important instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating your appliance.
  • Page 6 Do not use an adapter plug, use an extension cord, or remove grounding prong from the power cord. Failure to follow this warning may cause serious injury, fire, or death. Technical Specifications Model ECR 244 Electrical 240V / 60 Hz No. / Type of Burners 4 / Ceramic Oven Capacity 2.4 cu.
  • Page 7 Electrical Connection Effective January 1, 1996 the National Electric Code requires that new construction (not existing) utilize a 4-conductor connection to an electric range. Use only a 3-conductor or a 4-conductor UL-listed range cord. These cords may be provided with ring terminals on wire and a strain relief device. A range cord rated at 40 amps with 125 / 250 minimum volt range is required.
  • Page 8 3-Wire Power Cord Installation WARNING: The neutral or ground wire of the power cord must be connected to the neutral terminal located in the center of the connector block. The power leads must be connected to the outside (brass colored) terminals. Remove the 3 wire terminal screws from the connector block.
  • Page 9 Installation WARNING: This appliance must be installed by an authorised technician, according to the instructions in this manual and in compliance with the current local regulations. • Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid. •...

  • Page 10: Space Requirements For Installation

    Space Requirements for Installation For safety and proper ventilation, ensure that adequate space is provided around and above the Cooking Range. Please note the space requirements in the diagram below. • The range hood should extend 5" (12.7 cm) beyond the front of the cabinets. •...

  • Page 11: Tip Over Hazard

    Tip Over Hazard A child or adult can tip the cooking range and be injured or killed. An Anti-Tilting Kit (bracket and screw) is provided with the cooking range which must be installed in order to prevent the appliance from tipping over. •...
  • Page 12 Instructions For Use • Do not clean or operate a broken cooktop. If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact customer service. • Clean cooktop glass with caution. If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn.

  • Page 13: Operation

    Operation Keep children and pets away from the cooking range while using the cooktop or oven and until the appliance has fully cooled. Control Panel BURNER OVEN BROIL GRILL BAKE AIR FRY Oven Oven Clock and Hob Control Knobs Function Temperature Timer Display Knob...

  • Page 14: Oven Operation

    Oven Operation OVEN BROIL GRILL BAKE AIR FRY Oven Oven Function Temperature Knob Knob The oven is equipped with 2 wire racks, which can be placed at 5 different levels. Before using the oven, adjust or remove one of the racks as needed. Clean the racks with warm water and a soft cloth before use.
  • Page 15 Clock and Timer Before using the oven, the clock must be set. • Press “Mode” on the timer panel for 2 seconds until the dot in the middle of the time display starts to flash. • Using the + and – keys adjust the clock to the current time. •...
  • Page 16 Set duration of cooking time Place food in the oven and select the duration of time for cooking, which can range up to 10 hours. 1. Use the Oven Function and Oven Temperature Knobs to turn on the oven. 2. Press “Mode” until “dur” and “A” appear and flash on the Timer Panel. 3.
  • Page 17 Set duration of cooking time with delay start Place food in the oven and select the duration of time for cooking and also the delay time for when you want the cooking to start. Program the duration and end of cooking: 1.

  • Page 18: Troubleshooting

    Troubleshooting In most cases, when your Cooking Range fails to work, the problems arising can be easily solved without having to call for a technician. Before calling for assistance, always check these points. Problem Possible Cause Solution The hob does not There is no power supply.
  • Page 19 Equator Advanced Appliances USA, founded in 1991, offers Efcient, High-Quality, and Innovative household appliances. Our Mission is to simplify domestic chores and save Time, Space, and Energy. Our Vision is to enhance our Customer’s Quality of Life!
