MOD7CE ™
,
http://www.mod7ce.fr/auto
(Marque déposée)
e-mail : mod7ce@gmail.com
Company 1 UNIQUE
bat.10, Parc club du Millénaire, 1025 Rue Henri Becquerel
F-34000 MONTPELLIER - France
RCS Montpellier n°540063997 - APE 7112B

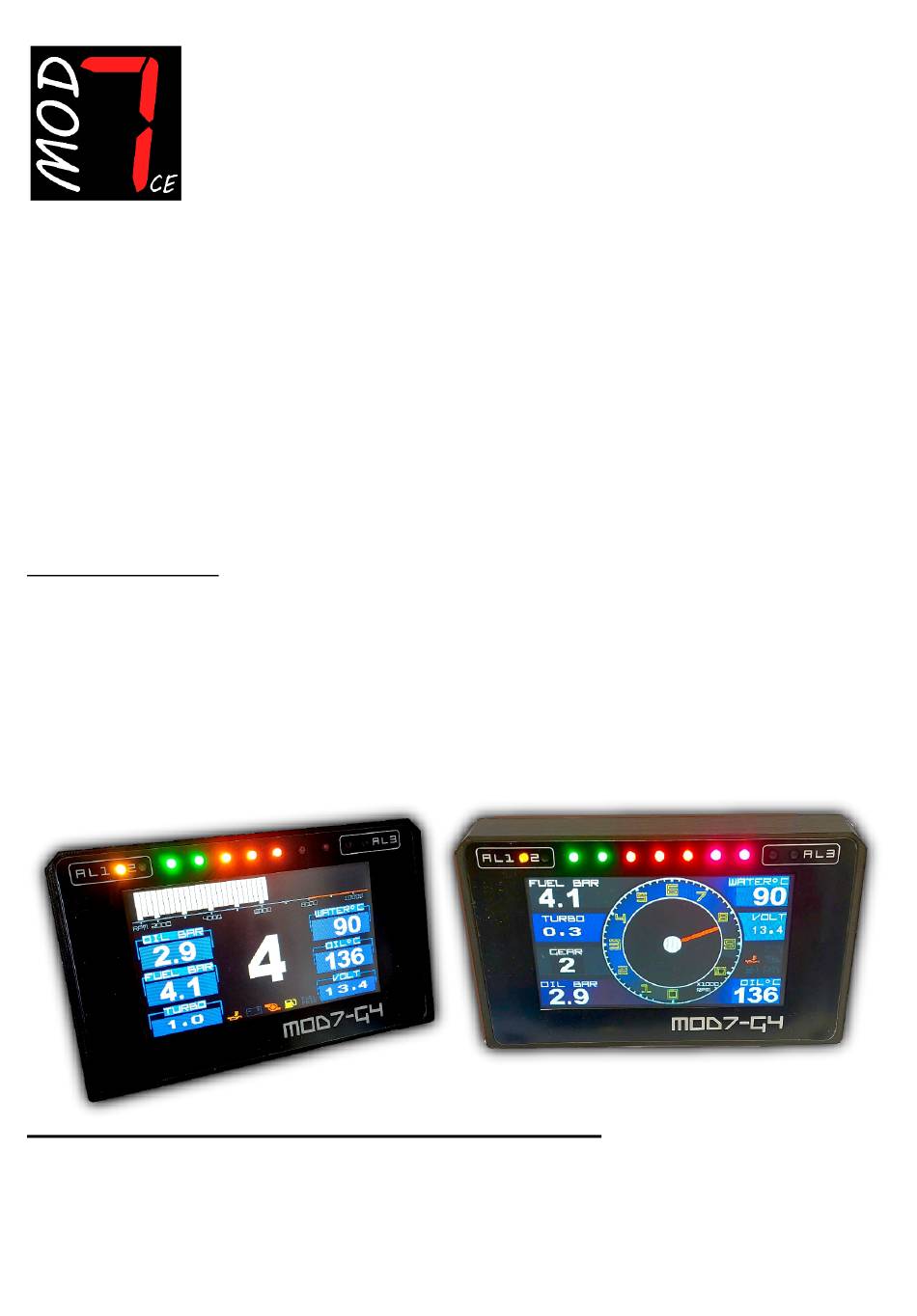

INSTRUCTIONS MANUAL for Dashboard MOD7 G4-C
Thank you for purchasing this instrumentation MOD7CE® for your racing car.
We hope you will be pleased with it to advise us ...
About the story :
First there was the dashboard MASTER7 (2008), then MOD7-RR (2011), then EVO (2015),
and finally the ultimate version MOD7 G4 which is the fourth generation with a new housing,
a new electronic board and a new display screen for new functions

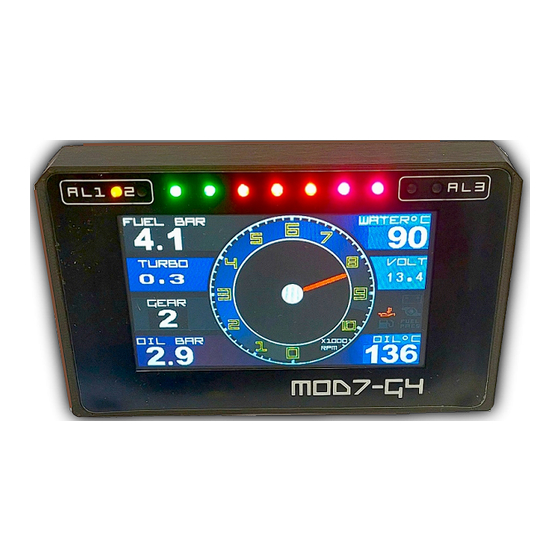

The dashboard MOD7 G4-C is working in Canbus with the ECU,
Please note that the MOD7 G4-F version is a wired version which cannot work in Canbus
Functions summary :
- Reading the informations from the programmable ECU by the CanH/CanL lines
- More than 15 integrated CAN protocols can be selected in the setting menu
- 1 digital input (Vehicle Speed) + 3 analog inputs available out of the Can network
- 2 data display pages
- 1 single push button to control the display screen and to program the dash
- 1 'over-display' screen to show the max recorded values when the engine stops
- 3 alert leds + 7 leds for full programmable shift light
- 1 home page with 'MOD7 RACING' logo
- 3 intensity levels to find a confortable brightness of the display screen
Page 2
Page 1
Package contents for Dashboard MOD7 G4-C :
• 1 Dashboard MOD7 G4-C equipped with 4 anti-vibration pads fixing
• 2 Looms with 4 and 6 way connectors with 50cm wires
• 1 Push button to program and control the dashboard
• Option : 1 Speed sensor + 1 magnet
• 1 User manual
Advertisement
Summary of Contents for MOD7CE MASTER7
- Page 1 We hope you will be pleased with it to advise us … About the story : First there was the dashboard MASTER7 (2008), then MOD7-RR (2011), then EVO (2015), and finally the ultimate version MOD7 G4 which is the fourth generation with a new housing,...
- Page 2 Page 2 Technical specifications of the Dashboard MOD7 G4-C : 146.50 mm Work range : Front sealing : yes 310grs 0°C --> 70°C Back sealing : no 90 mm Require Spark Conso : 1,6W * BAT Voltage : plugs with (under 14volts) 10v -->...
- Page 3 Page 3 Cautions and Safety precautions : This dashboard MOD7 G4-C is only reserved for use in racing cars. It is not approved for a road use. A battery voltage above 16v might cause irreparable damages to the product. The dashboard MOD7 G4-C needs eventually some sensors witch are not supplied At first, you can use the existing sensors of the car (oil temperature and pressure).
- Page 4 Page 4 Wiring of the Dashboard MOD7 G4-C : Precautions for supply connection : Positive supply : From the positive (+) battery plug, after the main switch, connect the ECU and the Dashboard ‘in Y’. If you want to connect more equipments, connect them direcly form the main switch - Negative supply (ground) : From the negative (-) battery plug, connect with the same wire, the electronic ground of the ECU and the dashboard ground.
- Page 5 Page 5 FUNCTIONS directly connected to the DASHBOARD : • The Speedometer function exits on most of ECU Can protocols, but you can connect an ‘ils’ speed sensor directly to the dashboard connector 2 (See below) • The fuel gauge function can be only read on the GREEN wire input of the Dashboard •...
- Page 6 Page 6 In case of problem with the CAN connection… AT FIRST, VERIFY THAT THE CAN OUTPUT IS ENABLE IN THE ECU SOFTWARE !!! Impedance adaptation on the CAN network : • The CAN network needs two 120ohms resistors : The ECU provides the first of these 2 resistors The Dashboard MOD7 G4-C provides the second of the 2 resistors If there is more than the dashboard and the ECU on the CAN network, you have to...
-
Page 7: Operating Modes
Page 7 OPERATING MODES : A) Page changing (in normal mode, not configuration menu) HOME Page with the logo ‘MOD7 RACING’ Page 1 : Tachometer with needle and several informations around Page 2 : Bargraph tachometer and several informations below NOTA : The first page to be displayed after the engine is running, or after you press the button is programmable in the configuration menu •... - Page 8 Page 8 B) Configuration menu enter and exit : The dashboard MOD7 G4-C doesn’t need any connection to a PC or to a specific tool to be configurate. From the Home page, press and hold 1 seconde the button to access to the first level configuration menu The different configuration menus and the complete explainations for the settings of the dashboard MOD7 G4-C are detailled in the CONFIGURATION section of this manual...
