Zidoo Z9X 8K Product Manual

Hide thumbs

Advertisement

Table of Contents

Product Manual
产品说明手册

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z9X 8K and is the answer not in the manual?

Questions and answers

Vladimir Manchev
March 7, 2025

How to change the cursor speed on Zidoo Z9X 8K

0
1 comments:
Mr. Anderson
May 14, 2025

To change the cursor speed on the Zidoo Z9X 8K, use the Simpl Cursor Driver module, which handles cursor repeats on the RS-232 port, allowing for press and hold functionality. Adjustments to cursor speed would be managed through this module.

This answer is automatically generated

0

Related Manuals for Zidoo Z9X 8K

Summary of Contents for Zidoo Z9X 8K

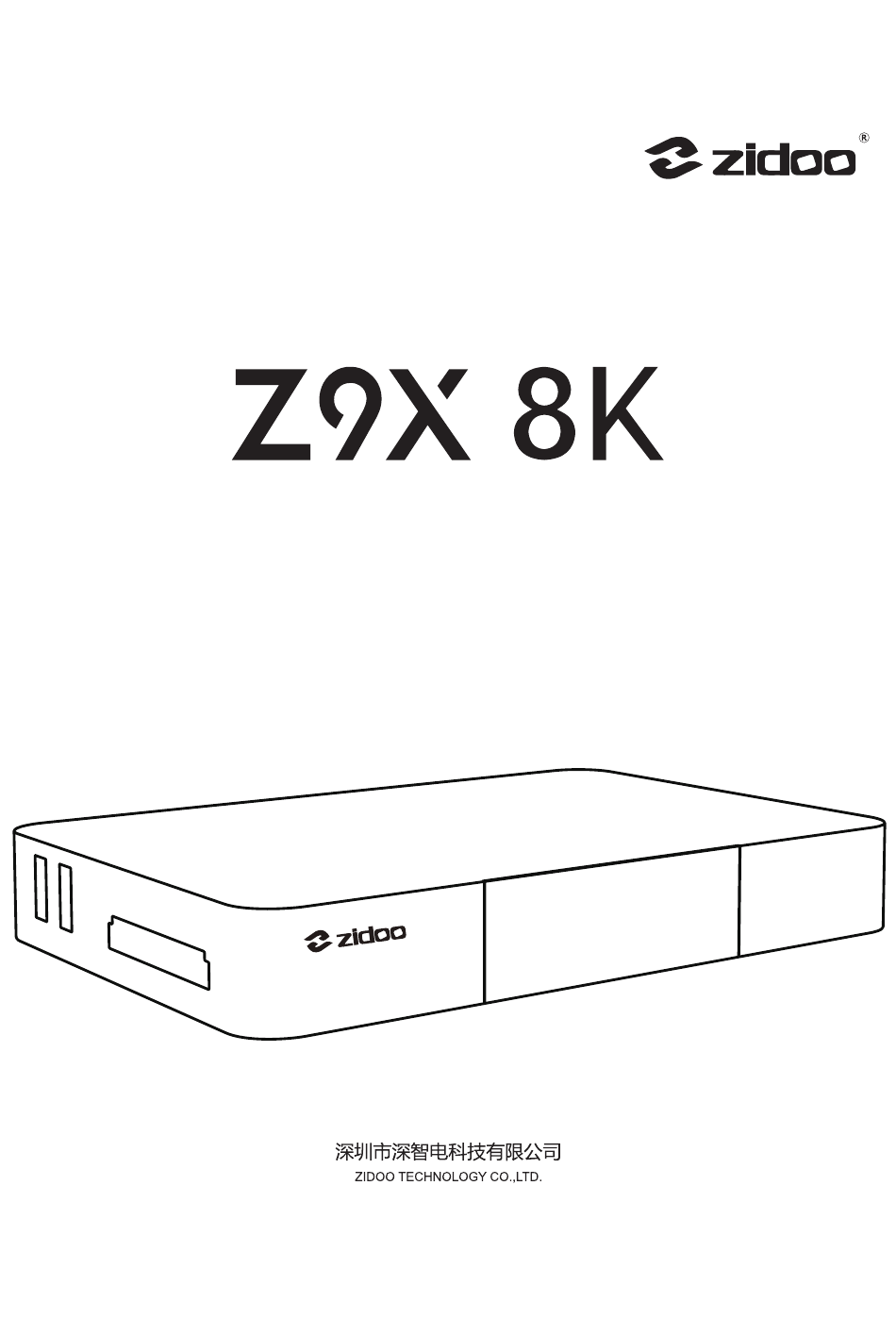

  • Page 1 Product Manual 产品说明手册...

  • Page 2: Introduction To Hardware

    Introduction to Hardware Interfaces The ZIDOO Z9X 8K is equipped with a wide range of audio and video input/output interfaces and data transfer ports. 1. Front IR RECEIVER LED DISPLAY 2. Left USB 3.0 SATA 3.0 Page 24 Page 24...
  • Page 3 8K UHD MEDIA PLAYER 8K UHD MEDIA PLAYER 3. Right RS-232 USB 2.0 4. Back AUDIO ANTENNA POWER GIGABIT USB 3.0 OUTPUT SWITCH OPTICAL RESTORE ANTENNA HDMI Notes: * Please install/replace the hard disk when the power is off. If it is a brand new hard disk, please format it before installing.

  • Page 4: Specifications

    Specifications Front Display Chassis Aluminum Alloy Material Android 11 Amlogic S928X-K ARM Cortex-A76+Cortex-A55 (Quad-core) ARM Mali-G57 MC2 6GB DDR4 Internal 64GB eMMC Storage BT 5.2 Bluetooth 2.4G+5G dual-band Wi-Fi, 802.11 a/b/g/n/ac/ax 2T2R, WI-FI 6 802.11ax MIMO OFDM RJ-45 Ethernet jack*1 (10/100 /1000Mbps) Ethernet HDMI 2.1a, supports up to 8K@60p, HDR10+, 12Bit color depth, BT2020 wide color range;...
  • Page 5 8K UHD MEDIA PLAYER 8K UHD MEDIA PLAYER Example Connection 1. HDMI Connects to TV 1) Cut off the power of the devices. Please make sure the power of both the TV and this media player are off. 2) With both the TV and media player powered off, insert one end of the HDMI cable into the HDMI port of this device and the other end into the HDMI IN port of the TV.
  • Page 6 2. Connect Audio Cable to Amplifier or Active Speaker Using a 3.5mm to dual RCA audio cable, connect one end to the Z9X 8K 3.5mm audio port and the other end to the RCA IN port on the amplifi er or active speakers. Ground Connection...
  • Page 7 8K UHD MEDIA PLAYER 8K UHD MEDIA PLAYER Boot Initialization Wizard 1. System Language Selection, Screen Zoom, Time Zone Setting Choose the system language. Press the UP and DOWN buttons on remote control to adjust screen display area. Page 29 Page 29...

  • Page 8: Network Setting

    Select the time zone for the system according to your location. 2. Network Setting Please configure the network settings according to the specific network conditions. Wi-Fi: Select the network SSID, enter the password, and connect to Wi-Fi. Ethernet: Plug in the Ethernet cable to automatically connect to the network.
  • Page 9 ● HDMI port connected to AV receiver's HDMI 2.1 or 2.0 port, then the receiver connected to the TV: Choosing this setup, Z9X 8K will prioritize pass-through output for all audio. The AV receiver supports higher than 7.1 channels.
  • Page 10 5. Phone Control Scan the QR code on the left to download and install the ZIDOO Control App, then launch the ZIDOO Control App to scan the QR code on the right and pair with the ZIDOO media player.
  • Page 11 "Next" to complete the initialization setup, and then you can enjoy the audiovisual feast brought to you by ZIDOO products. The ZIDOO Control App is compatible with Android and iOS smartphones/tablets (landscape mode). You can view the poster wall, music library data, system applications, and menus on it. You can also browse and play built-in streaming media services through the control app, enjoying a comfortable control experience.

  • Page 12: Introduction To System

    Introduction to System 1. Media Center ZIDOO has a complete full-featured media center, which has rich and comprehensive fi le management functions. ● Supports direct access to external drives and automatic or manual scanning of all available NFS or SMB network drives within the local area network, providing more fl...
  • Page 13 It is recommended to use intelligent scraping sources for the poster wall. 3. Music Player The Z9X 8K music player provides powerful local music playback performance and management functions, allowing you to add music fi les from local hard drives or network storage across platforms.
  • Page 14 After selecting, click "OK". ④ Finally, wait for the music player to fi nish scanning. 3.2 CD Playback The Z9X 8K supports the playback of CDs via an external CD-Rom. 3.3 Music Player Settings Introduction Access Guide: Pull down to the bottom of the homepage of the music player to enter the settings menu.
  • Page 15 8K UHD MEDIA PLAYER 8K UHD MEDIA PLAYER Scan: The scan menu includes features such as matching method, prioritizing local images, not scanning songs under 500kb, automatic updating sources, and scanning music formats. Display: The display menu includes features of displaying playback details with a background image.
  • Page 16 ZIDOO supports auto frame rate settings for both "local playback" and "third-party app online playback." You can choose to turn off Page 38...
  • Page 17 8K UHD MEDIA PLAYER 8K UHD MEDIA PLAYER auto frame rate; Alternatively, you can select "match frame rate only", when playing a video, the player will automatically switch to the same frame rate as the source. Additionally, you can choose "match frame rate and resolution", when playing a video, the player will automatically switch to the same resolution and frame rate as the source.
  • Page 18 ② HDR Settings ● UI Display Mode: The UI display mode can be set to one of three options: SDR, HDR, or DV. ● HDR Output Mode: Auto: The player adapts to output the optimal image mode based on the source and the display device's capabilities. Dolby Vision Output Mode: When the display device supports both TV-led and LLDV Dolby Vision modes, this option will appear in the menu and allow for custom switching.
  • Page 19 8K UHD MEDIA PLAYER 8K UHD MEDIA PLAYER HDR Advanced Settings Video Format Output Mode SDR Content Output Mode SDR（default）,HDR,DV HDR10 Content Output Mode SDR,HDR（default）,DV HDR10+ Content Output Mode SDR,HDR,HDR10+（default）,DV HLG Content Output Mode SDR,HLG（default）,DV DV Content Output Mode SDR,HDR,DV（default） Dolby VS10 for SDR Content Yes,No（default）...
  • Page 20 Note: AI image enhancement only applies to videos with 1080P resolution or lower and is effective when the current output is higher than 1080P. Please disable the "Match frame rate and resolution" feature when enabling this option. 5.3 Audio Settings ●...

  • Page 21: Network Settings

    8K UHD MEDIA PLAYER 8K UHD MEDIA PLAYER ● Delay Playback When the HDMI port, Audio port, OPT/COAX connection to the AV preamp, and USB connection to the preamp are connected, changes in the sampling rate can cause the fi rst few seconds of the track to be silent due to the audio recognition speed of the preamp.
  • Page 22 When the HDMI audio settings are set to pass-through, the volume Media Player controls TV volume keys on the ZIDOO remote control will control the TV volume When the HDMI audio settings are set to pass-through, the volume...
  • Page 23 8K UHD MEDIA PLAYER 8K UHD MEDIA PLAYER Note: *When HDMI is set to pass-through output, this function will send the control signal of the local speaker through CEC to the AV receiver or TV and other devices. Please make sure that other devices have CEC enabled when using this function.
  • Page 24 2. This function allows you to customize the remote control's red, green, and blue color keys as shortcuts for specifi c functions; supports customization such as music play queue, music now playing, AI image process, etc. Page 46 Page 46...
  • Page 25 8K UHD MEDIA PLAYER 8K UHD MEDIA PLAYER OTA System Update ZIDOO will update the fi rmware from time to time. Find the update icon in APPs and click it, online update and local update are supported. After ticking "Automatically check online upgrade"...
  • Page 26 2. Local Update ① Users can manually download the update file from the forum or official website and update the system locally. Copy the downloaded update file to a USB drive (no need to unzip it), and then click the "USB Update" option to select the update fi le. ②...

  • Page 27: Special Note

    System will update automatically, please do not power off. Once the update is completed, the system will automatically be restarted. Special note: To guarantee user experience, ZIDOO will update the firmware occasionally. Therefore, this manual may not be totally in line with the product. Safety Warnings: 1.
