Summary of Contents for RATTIINOX CAD AS-i

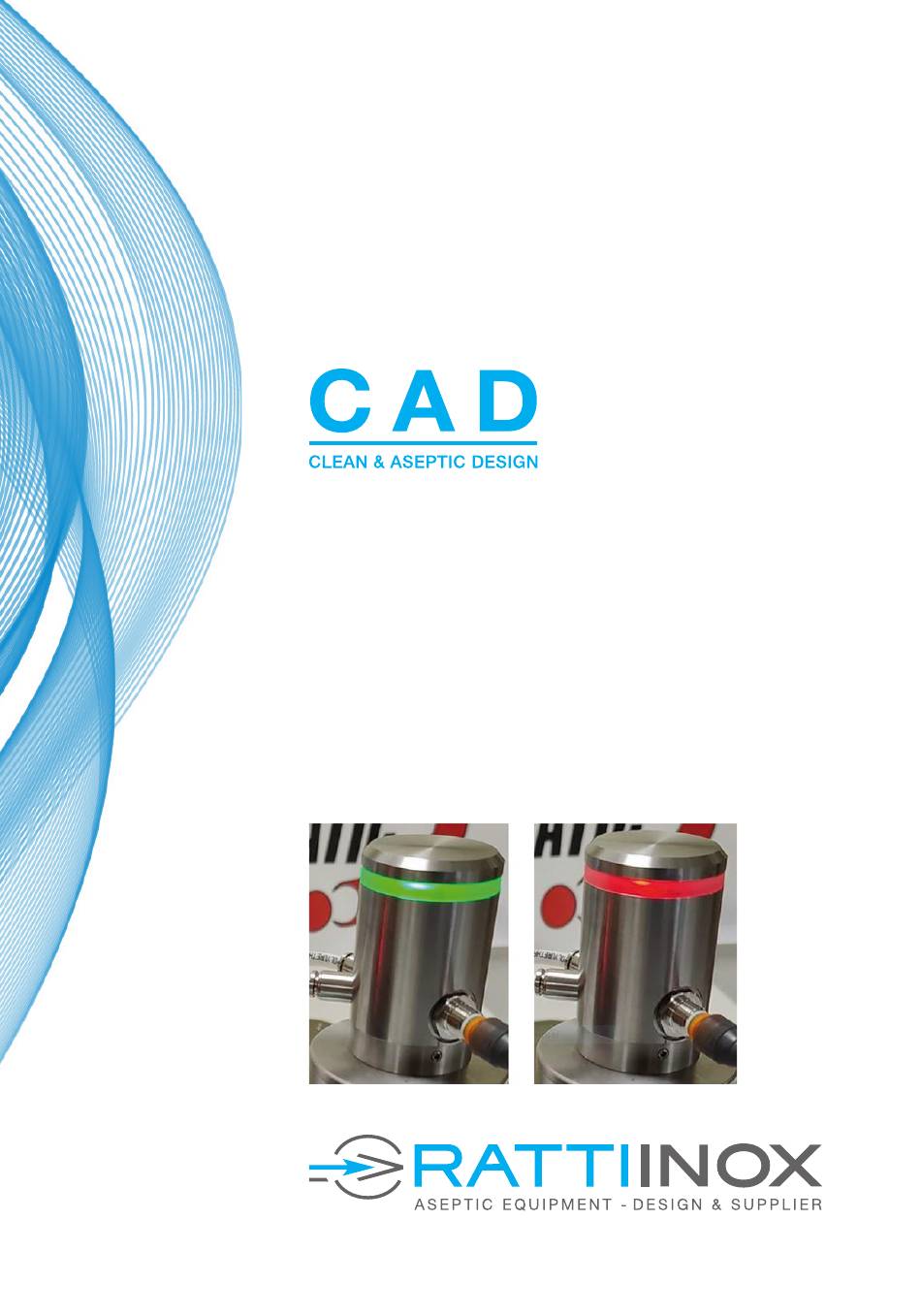

- Page 1 CAD AS-i CONTROL UNIT INSTALLATION, OPERATION AND MAINTENANCE MANUAL...
- Page 2 It is meant to be integrated in a larger installation. When installed/connected differently than described in this manual, Rattiinox will not be responsible for any damage or harm created by or to the controller. The data in this manual is based on the latest information and may be subject to changes.
-
Page 3: Table Of Contents
INDEX 1. Functions 2. General data 3. Symbols/Safety regulations 4. Installing the controller 5. Calibration 6. Open/Close 7. Swap visual feedback 8. Swap electrical feedback 9. Error description 10. Wiring diagram 11. Maintenance 12. Cleaning the exterior 13. Repair 14. Mechanical connections and spare parts 15. -
Page 4: Functions
1. Functions The YACT-SEND-0AS1-XCU01 is a universal valve controller for automatic control of pneumatic process valves. This means that it can be placed on almost any pneumatic based actuator. Different mounting kits are available to connect the valve controller and actuator. The controller has the following features: •... -
Page 5: Symbols/Safety Regulations
3. Symbols/Safety regulations Sign that warns for a possible electric shock. General warning sign. Refers to additional manuals/datasheets. Additional information. Advice: We advise you to wear suitable protection clothing, (such as gloves and goggles) when you use cleaning products. Safety regulations: •... -
Page 6: Installing The Controller
4. Installing the controller This instruction is specifically for the installation of the unit on a pneumatic actuator and not for the integration into the system. Installation: 1. Place the mounting kit on the actuator and make sure it is securely screwed to the actuator. - Page 7 Ensure that the YACT-SEND-0AS1-XCU01 and the mounting kit are mounted securely in place to prevent any malfunctions caused by moving the controller. Air connectors should have parallel thread and O-ring. DO NOT use PTFE tape, as this can cause air leakage and puts tension on the base of the controlle.
-
Page 8: Calibration
5. Calibration After first assembly on an actuator, it is necessary to calibrate the YACT-SEND-0AS1-XCU01. The unit has an auto calibration function which will automatically check the open and close position of the actuator it is assembled on. The auto calibration function can be activated through ASi. To auto calibrate perform the following steps: 1. -
Page 9: Open/Close
6. Open/Close Functionality of the controller: This chapter described the way the controller operates. Next to this there is an explanation of the different states and feedbacks the controller gives back. Air flow: When the solenoid on the controller is de-activated the airflow towards the controller is blocked. -
Page 10: Swap Visual Feedback
7. Swap visual feedback The YACT-SEND-0AS1-XCU01 has a possibility to invert the colors of the feedback signals. This means green for close and red for open. Changing the color of the feedback does not affect the electrical feedback signals. Disconnection of the power supply does not affect the switch of the visual feedback. -
Page 11: Error Description
9. Error description Error messaging of the YACT-SEND-0AS1-XCU01 will be indicated by a flashing blue LED. The quantity of blinks indicates the error code mentioned in the table below. Before trying the solutions mentioned below, please ensure that the unit is mounted securely onto the actuator (this includes the mounting kit). -
Page 12: Wiring Diagram
10. Wiring diagram Mechanical data ELECTRICAL DATA ap material Stainless steel Power supply 26.5 ... 31.6 DC dication ring material dication ring colour Natural White Power Consumption <1,5 or <50mA ase material Stainless steel Connector M12x1 male easuring range Linear 5-25mm elative humidity ≤... - Page 13 AS-i CONFIGURATION S-7/A.0.E.** DO 0 = - 62-nodes configuration DO 1 = Remote calibration (1A..31A, 1B..31B) DO 2 = Solenoid 1 DO 3 = - Normal operation: DI 0 = Open feedback DI 1 = Close feedback DI 2 = Fault feedback DI 3 = Unit in calibration mode During calibration (DO1 activated):...
-
Page 14: Maintenance
11. Maintenance We point out that you should take care of the equipment according to common technical rules. In case of inappropriate operation or handling by unqualified personnel the guarantee of the manufacturer will not be valid. Some parts of the controller should be checked on a regular basis. The interval between the checks depends on the surroundings of the controller but should not exceed a year time. -
Page 15: Repair
The malfunctioning valve controller can be sent to the following address for repair or inspection. RATTIINOX S.r.l. Via Pietro Mascagni, 10 22066 Mariano Comense (CO) Italy... -
Page 16: Mechanical Connections And Spare Parts
14. Mechanical connections and spare parts Install the correct needle and the correct spring on sensor shaft according to the following drawing. Part. code: CADA0969 Part. code: SPRING-0.60X9.1X09 Use this spring Part. code: for CAD sizes: SPRING-0.60X9.1X06 A25 (1”) A38 (1.1/2”) Use this spring A50 (2”) for CAD sizes:... - Page 17 UPPER ANTIROTATION SOCKET FOR SPRING DETAIL C ATTENTION: PLEASE INSERT ANTIROTATION PORTION OF BOTH SIDE OF THE SPRING INSIDE RELATED SOCKET DETAIL D APPLY A DROP OF LOCTITE 270 OR SIMILAR BEFORE SCREWING THE ADAPTOR LOWER ANTIROTATION SOCKET FOR SPRING...
-
Page 18: Standards And Ce Marking
15. Standards and CE marking This product complies with the following European Community Directives: 2014/30/EU 2014/35/EU www.sitomatic.nl Type: ASVC 910-01L Slave config: S-7/A.0.E. Serial: 2401872 sitomatic.nl YACT-SEND-0AS1-XCU01 CAD AS-i CONTROL UNIT SN: ....www.rattiinox.com... - Page 20 RATTIINOX S.r.l. Via Pietro Mascagni, 10 I-22066 Mariano Comense (CO) T. +39.031.3551263 info@rattiinox.com www.rattiinox.com...
