USER MANUAL
WC02010019
PRODUCT CODE:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WC02010019 and is the answer not in the manual?

Questions and answers

Summary of Contents for kinetic WC02010019

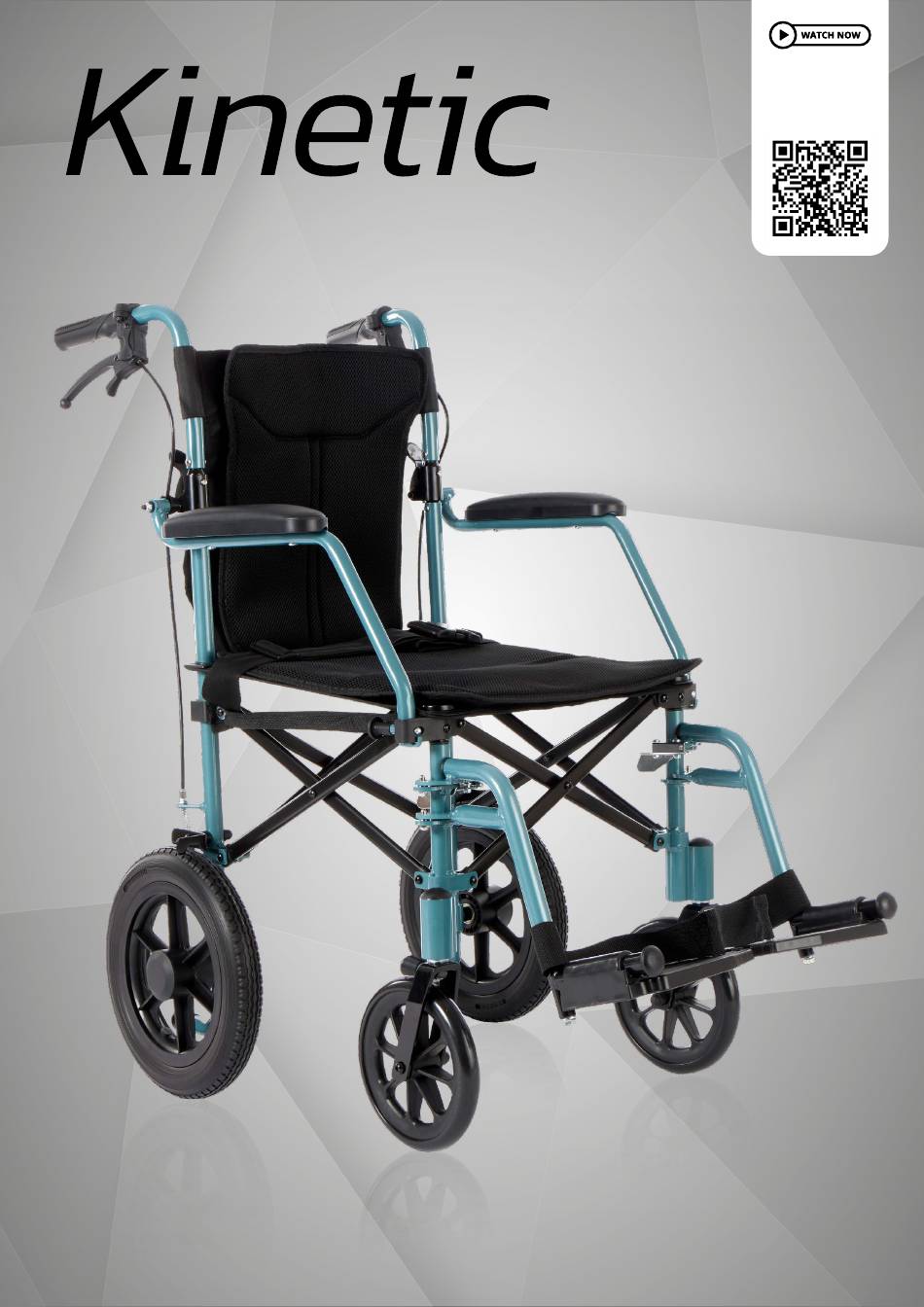

  • Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL WC02010019 PRODUCT CODE:...
  • Page 2 PRODUCT CODE INTRODUCING YOUR KINETIC COMPACT WHEELCHAIR Foldable and effortlessly transportable, the Kinetic Compact Wheelchair is the ideal companion designed to provide you with maximum comfort whilst increasing independence in your daily life. Due to CareCo’s commitment to continuous product improvement, product information and designs are subject to change without notice.
  • Page 3 BEFORE USE Before using your wheelchair, please ensure you, and any persons that may assist you in its use, take the time to read, understand and follow the instructions given within this user manual. We recommend that you keep this user manual in a safe place for future reference If you have any questions about product use, maintenance, or safety, please contact CareCo.

  • Page 4: Table Of Contents

    WC02010019 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR KINETIC COMPACT WHEELCHAIR HOW TO USE YOUR WHEELCHAIR USER INSTRUCTIONS APPLYING THE BRAKES LEGRESTS FOOTPLATES SEAT & BACK COVERS SEAT BELT STORAGE SPACE ADDITIONAL STORAGE SPACE FOLDING, TRANSPORTING & STORING YOUR WHEELCHAIR...
  • Page 5 OTHER ADJUSTMENTS BRAKE ADJUSTMENT WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS PRODUCT REISSUING RECYCLING & DISPOSAL MATERIALS INTENDED USE INTENDED USER INTENDED ENVIRONMENT PRODUCT IDENTIFICATION GENERAL WARNINGS EXPECTED LIFETIME WARRANTY NOTES...

  • Page 6: Getting Started

    PRODUCT CODE GETTING STARTED Contact CareCo immediately if ITEM NUMBER DESCRIPTION QUANTITY any of the listed contents are Kinetic Compact Wheelchair missing. Legrest Set We strongly recommend that Carry Case you keep the box and internal User Manual packaging for the duration of Hex Spanner your warranty period.

  • Page 7: Setting Up Your Kinetic Compact Wheelchair

    SETTING UP YOUR KINETIC COMPACT WHEELCHAIR 1. Remove the carry case from the outer 2. Remove all wheelchair components from packaging. the carry case and place them onto a level surface. 3. Place the wheelchair upright as shown. 4. Push downwards on the corners of the...
  • Page 8 WC02010019 PRODUCT CODE 5. Lift the backrest handles upwards. 6. Lift the armrests, then locate the spring pins into the lower wheelchair frame. An audible “click” will confirm the handles are secure. 7. Place the velcro seat and back covers onto 8.

  • Page 9: How To Use Your Wheelchair

    HOW TO USE YOUR WHEELCHAIR USER INSTRUCTIONS TRANSFERING TO & FROM Always ensure the brakes are applied before getting in/out of the wheelchair. TRANSFER TO Position your body as close to the wheelchair as possible. Support your body using the armrests, before lowering into the seat.
  • Page 10 WC02010019 PRODUCT CODE THRESHOLDS & FIXED OBSTACLES Approach thresholds vertically to avoid wheelchair misbalance. Incorrect Approach Correct Approach SUGGESTION Use caution when operating the wheelchair near kerbs, ledges, and doorway thresholds. DOORS & GATES Determine whether the door/gate opens towards or away from the user.

  • Page 11: Applying The Brakes

    APPLYING THE BRAKES ATTENDANT BRAKE STOPPING Gradually squeeze both brake levers to stop the wheelchair. Release the brake levers to start moving again. TURNING Squeeze the left and right brake levers individually to rotate the wheelchair. Release the brake lever to stop rotating. LOCKING Locate the locking lever in the handle catch to lock the attendant brake.

  • Page 12: Legrests

    WC02010019 PRODUCT CODE LEGRESTS ATTACHING REMOVING Place the legrest onto the frame at a Lift the legrest lever to release the leg rest 90-degree angle, then rotate inwards. from the frame, then rotate outwards. An audible “click” will confirm the legrest is Lift the legrest away from the frame.

  • Page 13: Seat & Back Covers

    SEAT & BACK COVERS Your Kinetic Compact Wheelchair seat and backrest covers are removeable and can be washed if required. ATTACHING Place the covers onto the wheelchair back & seat canvas. REMOVING Pull the covers away from the wheelchair back & seat canvas.

  • Page 14: Storage Space

    WC02010019 PRODUCT CODE STORAGE SPACE Your Kinetic Compact Wheelchair features a rear storage pocket, ideal for holding personal belongings and small accessories. MAX CARRY WEIGHT: 5KG ADDITIONAL STORAGE SPACE CARECO WHEELCHAIR BAG POPEM PANNIER BAG Attach additional storage space to the back...

  • Page 15: Folding, Transporting & Storing Your Wheelchair

    FOLDING, TRANSPORTING & STORING YOUR WHEELCHAIR FOLDING INSTRUCTIONS 1. Remove the velcro seat & backrest covers 2. Pull the legrest lever(s) and rotate the from the wheelchair. legrest(s) outwards. Lift the legrest(s) upwards to remove from the frame. 3. Pull the armrest spring pins, then lower 4.
  • Page 16 WC02010019 PRODUCT CODE 5. Bring the corners of the wheelchair 6. Place the wheelchair components into the seat and backrest inwards to fold the carry case. wheelchair. 7. Zip the carry case, ready for transport or storage. WARNING! Keep hands and body from the cross-frame pivot to avoid possible pinch...

  • Page 17: Transportation

    TRANSPORTATION STOWING THE WHEELCHAIR Ensure the brakes have been applied and any accessories have been secured before transporting. Fold the wheelchair, then insert it into the carry bag. Position the bag appropriately within the vehicle to prevent excess movement during transit. WARNING! This product is not suitable as a seat in a motor vehicle.

  • Page 18: Comfort Adjustments

    WC02010019 PRODUCT CODE COMFORT ADJUSTMENTS FOOTPLATE HEIGHT ADJUSTMENT Difficulty Level Moderate High Tools Required Hex Spanner (included) 1. Using a spanner, loosen the hex head at the base of the footrest. 2. Lift or lower the footplate until it is at the desired height.

  • Page 19: Looking After Your Wheelchair

    LOOKING AFTER YOUR WHEELCHAIR CLEANING Regular use of the wheelchair will accumulate dirt and debris over time. Clean the wheelchair regularly using mild soap and warm water, then dry using a cloth. WARNING! Do not use bleach or strong chemicals to clean the wheelchair. SUGGESTION Regular cleaning &...
  • Page 20 WC02010019 PRODUCT CODE OTHER ADJUSTMENTS BRAKE ADJUSTMENT Difficulty Level Moderate High Tools Required 8mm Spanner x1 10mm Spanner x1 The user can adjust the brake using simple household tools. Loosen the lock nut (B) by rotating it anticlockwise. Adjust the brake cable tension by rotating the brake adjuster (A).
  • Page 21 WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS OVERALL LENGTH (MM) OVERALL WIDTH (MM) OVERALL HEIGHT (MM) FOLDED LENGTH (MM) FOLDED WIDTH (MM) FOLDED HEIGHT (MM) FRONT WHEEL DIAMETER (IN) REAR WHEEL DIAMETER (IN) CARRY WEIGHT (KG) WEIGHT OF HEAVIEST COMPONENT (KG) WEIGHT CAPACITY (KG) SEAT WIDTH (MM) SEAT DEPTH (MM) SEAT HEIGHT (MM)
  • Page 22 WC02010019 PRODUCT CODE MATERIALS: WHEELCHAIR PACKAGING: ALUMINIUM: Cardboard Box, PE high density polyethylene Frame, handle tube, footrest tube, cross bag. brace, front castor fork. WHEELCHAIR UPHOLSTERY: STEEL: Nylon Fabric, Foam. Bearing, fasteners, rear wheel brake. PLASTIC: Hand grip, attendant brake handle, front castor, rear wheel, footplate, armrest pad.
  • Page 23 PRODUCT IDENTIFICATION The product identification label is located on the cross frame. 056059 114392 DEFINITIONS Electronic manual Product code Operator’s manual Medical device Manufacturer’s address Serial number Unique device identification UKCA mark Date of manufacturer...
  • Page 24 WC02010019 PRODUCT CODE GENERAL WARNINGS Read the following carefully to avoid damage and/or injury caused by improper operation. • Do not exceed the maximum user weight indicated on the frame label. • Do not stand on the product or the footrests at any time.
  • Page 25 EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the product is expected to function according to its intended use. Various items such as weight capacity, user behaviour, external conditions and intensity of use can affect the expected lifetime. WEIGHT CAPACITY: USER BEHAVIOUR: If the user exceeds the weight limit specified,...
  • Page 26 WC02010019 PRODUCT CODE WARRANTY If a component requires repair or replacement due to a specific manufacturing or material defect within its warranty period, it will be repaired or replaced free of charge by CareCo. • FRAME: 1-YEAR LIMITED WARRANTY •...
  • Page 28 056059 114323 SELF PROPELLED 24 05 02 WHEELCHAIR...
