Image Projection LEDPro-100 Important Instruction/User Manual page 3

Line Limiter Option
In certain circumstances, it may be
necessary to shorten the projected
line on one or both sides to achieve
the desired line length. Therefore,
the projectors can be equipped with
optional line length limiters. These
are "flaps", that can be mounted on
one or both sides of the projector.
The line length is adjusted by
bending the limiters in or out. Line
Limiters can also help to achieve a
more refined line end.
Note: The minimum achievable line length is approx. 30% of the
max. line length. For example, a 30ft line can be limited to approx.
10ft. These values may vary.

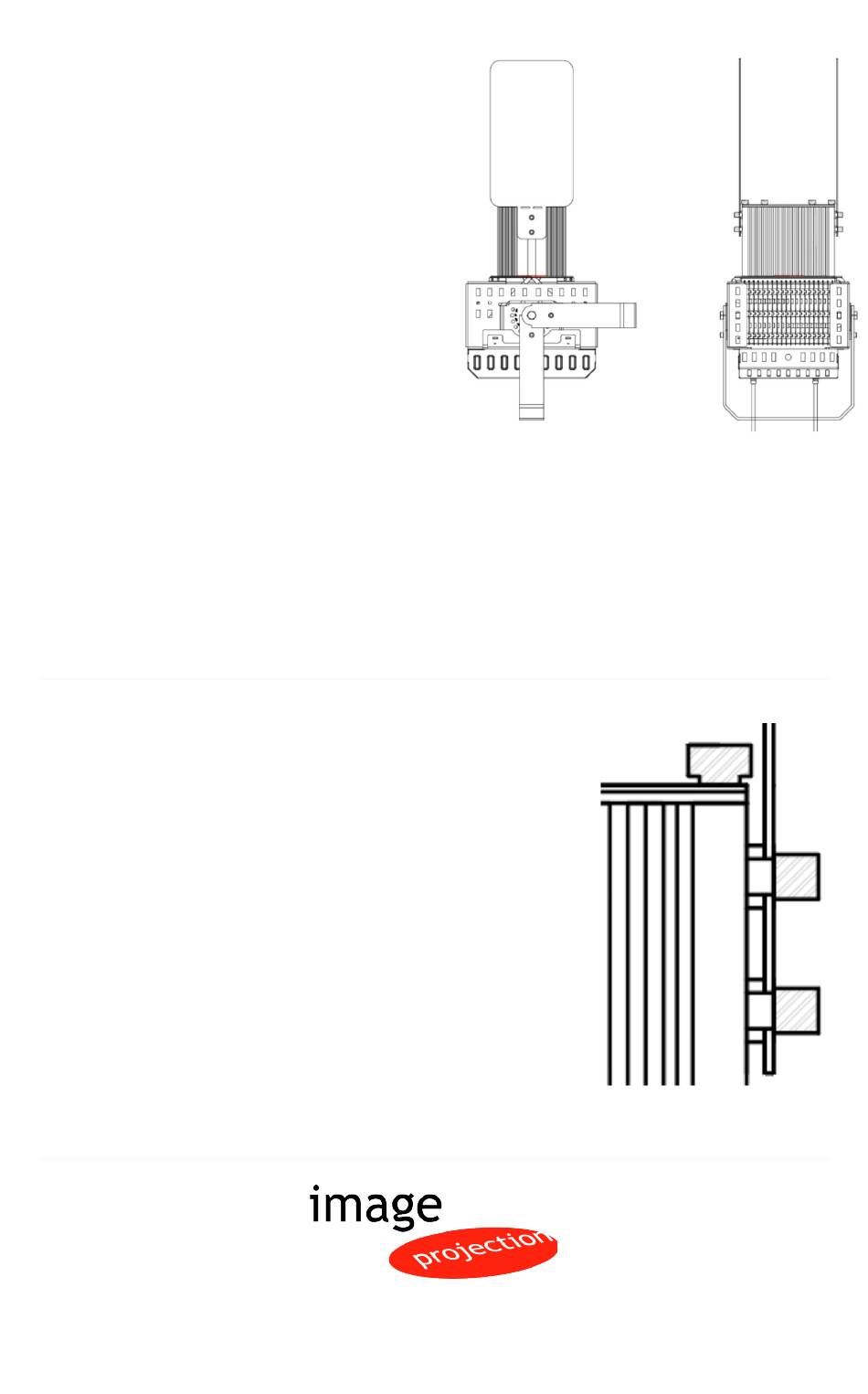

Mounting the line limiter(s):
• Remove the thumbscrews on the left and right
side of the projector.
• Place the plastic washers between the
projector and the line limiter.
• Screw the line limiter into the slot nuts.
• Line limiters can then be adjusted to your
specific line length needs.
