Summary of Contents for protech QM7320

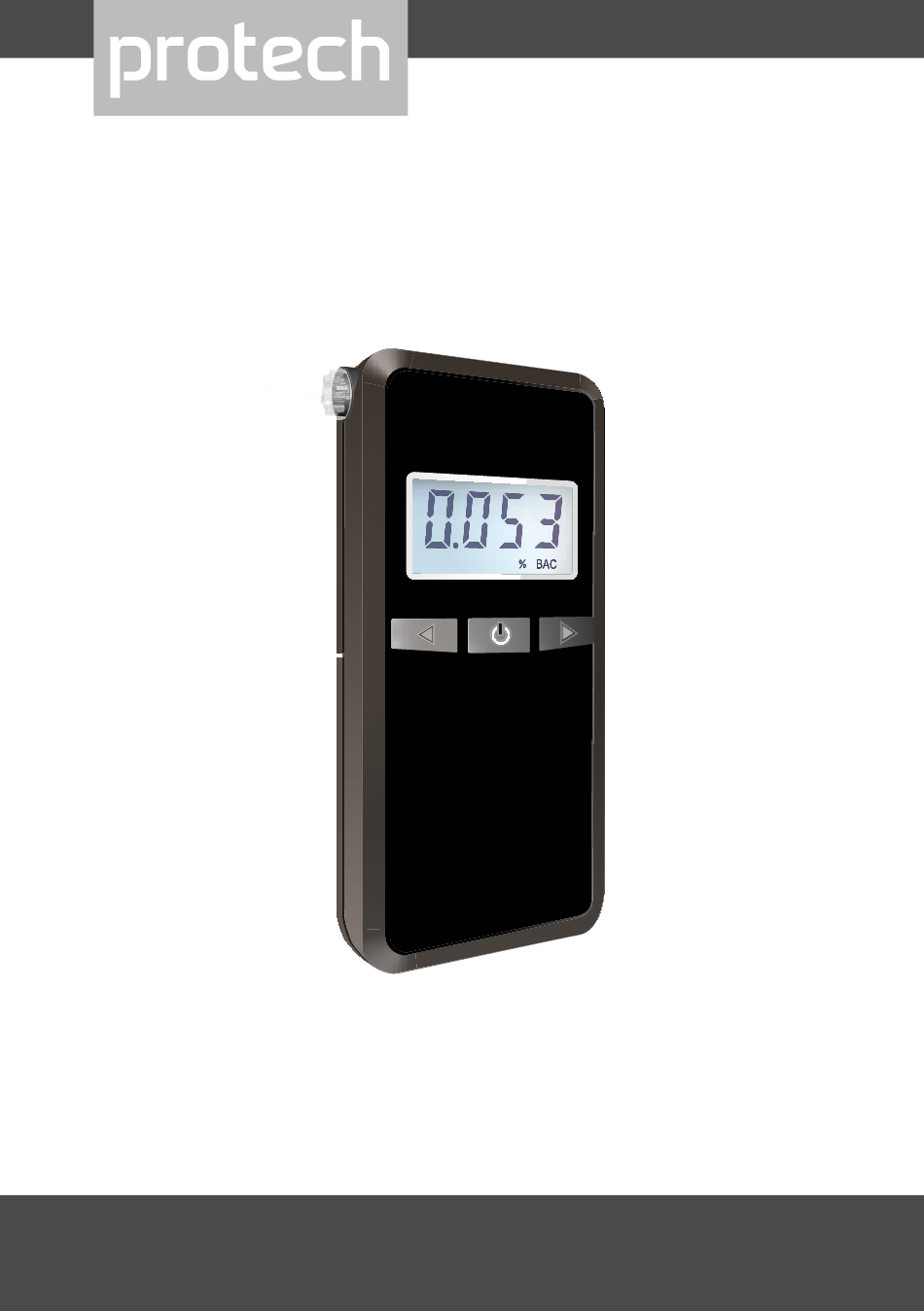

- Page 1 Fuel Cell Breathalyser with Advanced Flow Detection User Manual QM7320...
-
Page 2: Table Of Contents
CONTENTS General Information & Safety Instructions ....3 Box Contents ............... 3 Overview ................3 Before First Use ..............4 Getting Started ..............4 Taking a Breath Test ............5 Test Record Memory Mode ..........7 System Message ..............8 Precautions ................ -
Page 3: General Information & Safety Instructions
GENERAL INFORMATION & SAFETY INSTRUCTIONS • Use ALKALINE batteries only • DO NOT DRINK AND DRIVE! WARNING: The manufacturer is not responsible for any potential injury from misuse. BOX CONTENTS • 1x Breathalyser • 1x Mouthpiece Set • 1x AA Battery OVERVIEW... -
Page 4: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. Please pay close attention to the section entitled Important Safety and General Instructions. -
Page 5: Taking A Breath Test
TAKING A BREATH TEST Insert a mouthpiece Insert mouthpiece firmly into the slot. Additional mouthpieces could be purchased from your distributor. NOTE: Tests conducted without using mouthpiece might contribute inaccurate results. It is recommended to use mouthpiece in every breath test. Breath Testing Modes (Automatic/Manual) The breathalyser is capable of conducting Automatic and Manual tests. - Page 6 Taking an Manual Test When you see “rdy” (Ready) with a beep sound, apart from let the tester to start collect breath sample automatically, you could also manually start the breath sample collection process by pressing Left button (Manual test mode). The manual test mode starts and it displays “L.
-
Page 7: Test Record Memory Mode
TEST RECORD MEMORY MODE Recall cumulative test count During countdown, press ‘POWER’ button to display the cumulative test count - the number of tests it has performed. In case you would like to reset this counter, you could long press LEFT button until you see the counter is reset to zero. -
Page 8: System Message
SYSTEM MESSAGE Display Cause and Course of Action This message means the unit detected an out of range high alcohol concentration (above 4.00‰ BAC / 0.400%BAC / 2.00 mg/L). This message (Flow) means insufficient or uneven blowing is detected. Kindly perform another test. This message means Sensor Not Ready. -
Page 9: Maintenance
MAINTENANCE To keep the unit in a healthy condition, it is suggested to use the unit at least once a month. The breathalyser is calibrated during manufacture using advanced alcohol simulation equipment. Known alcohol concentrations are passed through the sensor to set baseline values for testing. During testing, the unit compares users’ breath samples to these baseline values. -
Page 10: Specifications
SPECIFICATIONS BAC Detection 0.00 to 4.00 ‰BAC (i.e: 0.000 to 0.400%BAC or 0.00 to Range 2.00 mg/l) Accuracy +/- 0.05 ‰BAC or +/- 0.005 %BAC at cal. point at room temp. Warmup Within 5 seconds (* at low concentration test) Response time Within 10-30 seconds Sensor... -
Page 12: Warranty
WARRANTY Our product is guaranteed to be free from quality and manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
