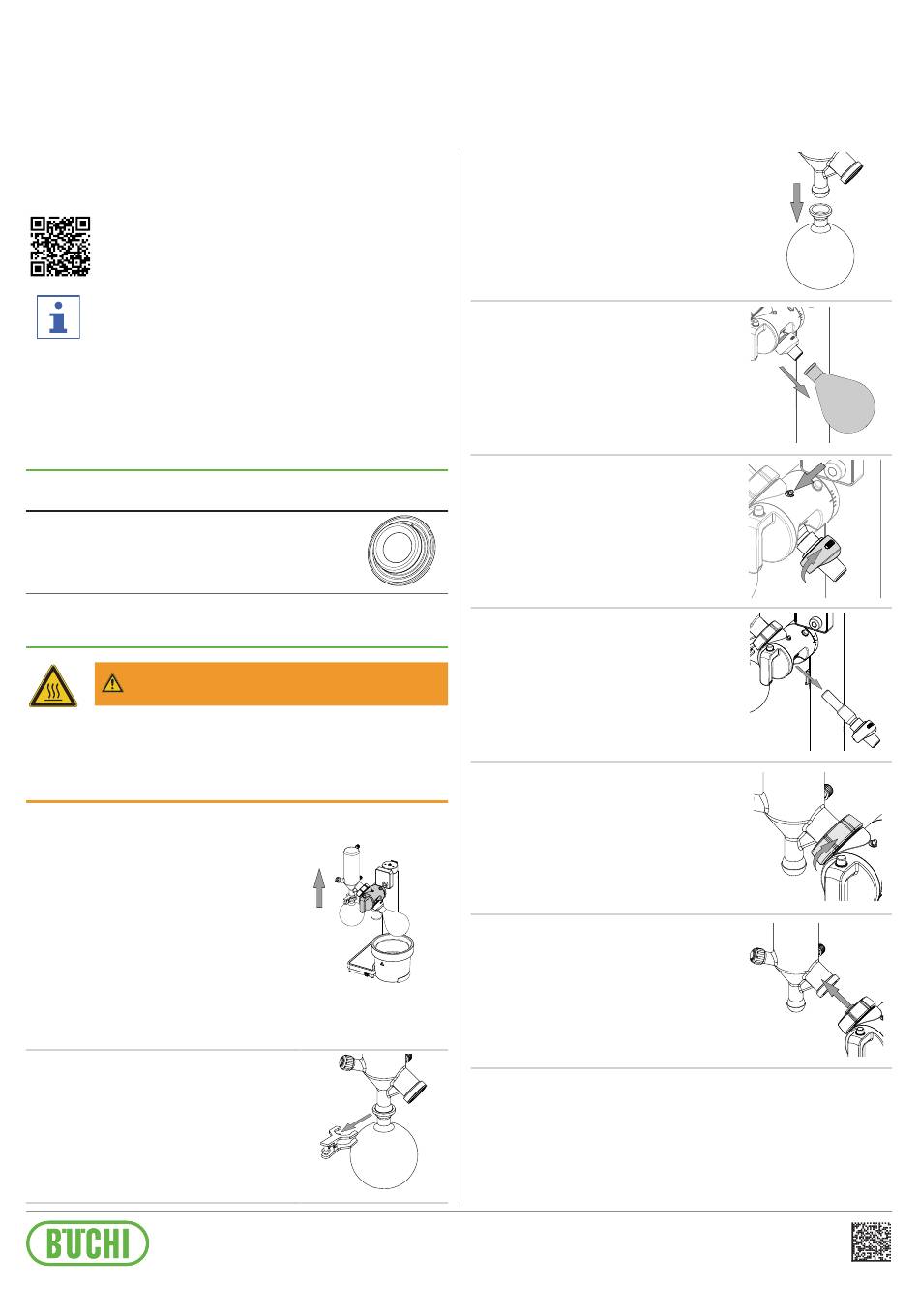

Buchi VS 22 Replacement Manual

Replacement Guide
Vacuum seal VS 22
Unlock more insights and guidance through our media re-
sources:
www.buchi.com/r-80/installation
NOTE
Reading and following the instructions in this doc-
ument does not replace reading and following the
instructions in the operation manual.
Vacuum seal
Vacuum seal VS 22, PTFE base,
NBR O-ring, FDA compliant
Replacing the vacuum seal
WARNING
Risk of skin burns due to hot glassware.
u Let the evaporating flask cool down.
u Wear suitable protective gloves.
Precondition:
R The Rotavapor® is aerated to am-
bient pressure.
R The evaporating flask stopped ro-
tating.
u Move the rotary drive arm to base
position.
Remove the connections on the
u
condenser.
u Firmly hold the receiving flask.
u Release the ball joint clamp by
turning the wheel counter-clock-
wise.
u Remove the ball joint clamp.
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: quality@buchi.com
Order no. Image
11075810
u Remove the receiving flask.
u Remove the evaporating flask from
the vapor duct.
u Press the locking button.
u Firmly hold the vapor duct.
Turn the Combi-Clip clockwise until
u
the vapor duct is released.
u Remove the vapor duct.
Open the flange nut to release the
u
condenser.
u Remove the condenser.
11594588A en
Vacuum seal VS 22
04.2024
