The Contour CT212 Rigging System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Contour CT212 and is the answer not in the manual?

Questions and answers

Related Manuals for 1 Sound Contour CT212

Summary of Contents for 1 Sound Contour CT212

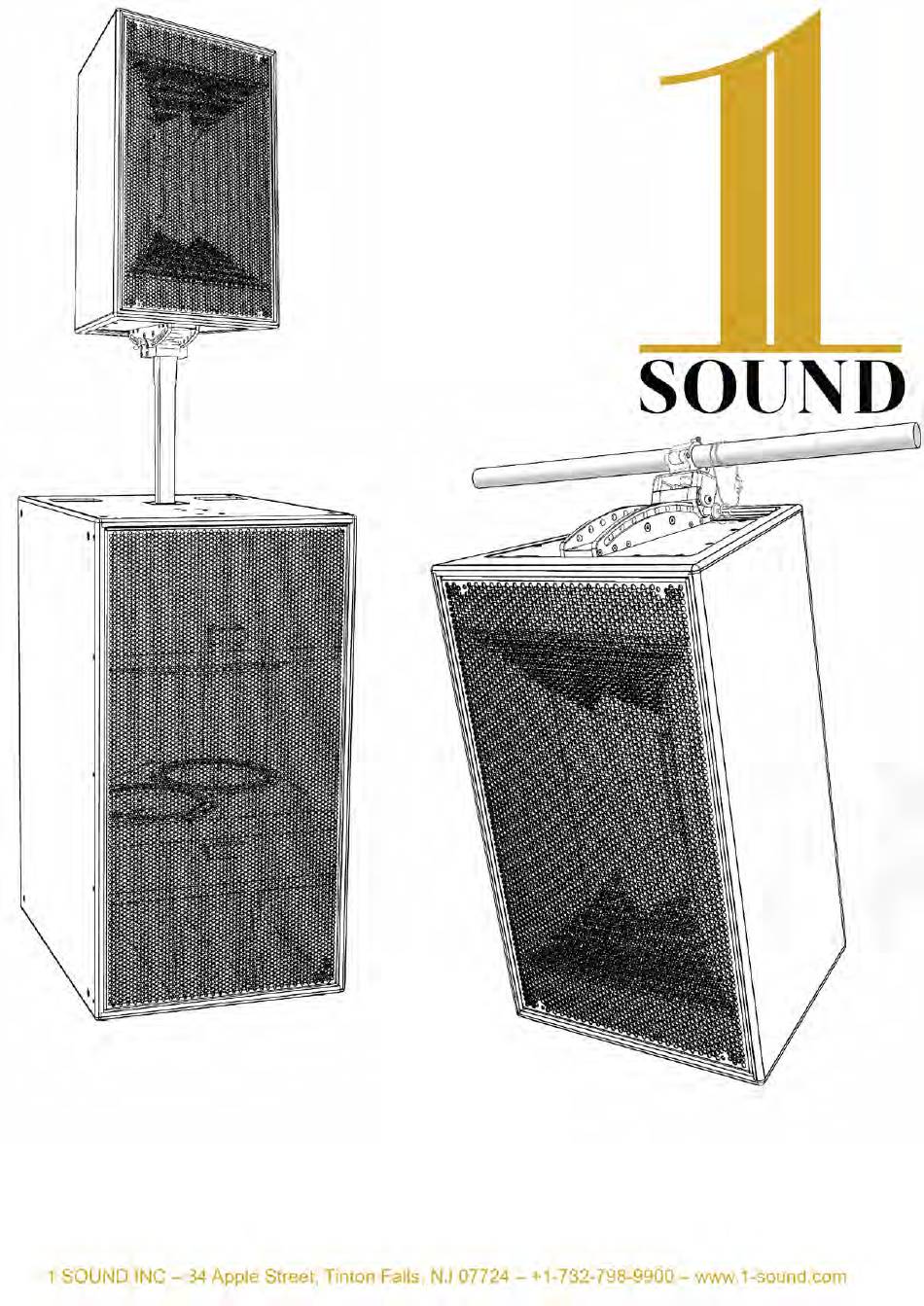

  • Page 1 The Contour CT212 Rigging System...

  • Page 2: Table Of Contents

    ....................3 CT212 Specifications.............. 3 SUB2112..................3 ....................3 SUB2112 Specifications............3 Chapter 2. Accessories...............4 Contour CT212 Rigging System............ 4 ....................4 Tube Mount..................4 Sub Pole Cup ................4 Passive 40 cm Speaker Tube............4 Chapter 3. Deploying CT212 atop SUB2112........5 Critical information................5 Products, accessories and tools required........

  • Page 3: Chapter 1. Speaker Models And Accessories

    Horn-Loaded Point Source Speaker Enclosure Figure 1. Contour CT212 The Contour CT212 is a horn-loaded 3-way passive loudspeaker capable of delivering a maximum SPL of 145 dB. This is a powerful speaker that sounds full and present while still sounding intimate at lower SUB2112 is a 2-way, bi-amped subwoofer.

  • Page 4: Chapter 2. Accessories

    Angle-adjustable mount for pole or flown deployment Figure 3. The Contour Rigging System The Sub Pole Cup is made from 4 mm steel and fits in various 1 SOUND subwoofers in order to mount a satellite speaker enclosure. It couples with all 1 SOUND Active Speaker Tubes, as well as standard round poles that have a M20 screw-in bolt.

  • Page 5: Chapter 3. Deploying Ct212 Atop Sub2112

    Restriction: Do not install a loudspeaker or any accessory near any open flame or heat source. Products, accessories and tools required To deploy a Contour CT212 enclosure on an Active Speaker Tube atop the SUB2112 you will need: • CT212 (on page 3) loudspeaker enclosure •...

  • Page 6: Procedures

    Contour Rigging System. If the CT212 unit is not pre-equipped with the Contour Rigging System, Before the Contour CT212 Rigging System can be equipped with the this can be mounted by the user. Tube Mount adaptor, the suspension yoke must be removed.

  • Page 7: Installing The Tube Mount On The Contour Rigging System

    | 3 - DEPLOYING CT212 ATOP SUB2112 Installing the Tube Mount on the Contour Rigging System Once the suspension yoke has been removed, the Contour CT212 Rigging System can be coupled to the Tube Mount adapter. This procedure can be carried out either before or after the Rigging System has been installed on the CT212.

  • Page 8: Installing The Sub Pole Cup On Sub2112

    THE CONTOUR CT212 RIGGING SYSTEM • When the required holes are perfectly aligned, take the other Figure 16. The tilt-locking holes and their corresponding angles pole-mount M10×100 ball-lock pin supplied with the Contour Rigging configuration. System and press the lock-release button on the rear of the pin to allow it to pass into the hole.

  • Page 9: Installing The Speaker Tube On Sub2112

    ONLY SPEAKER TUBE TO MOUNT A CT212 ENCLOSURE IN SUB/ Once the Contour CT212 Rigging System has been correctly assembled SATELLITE CONFIGURATION ATOP THE SUB2112 with the Tube Mount, coupled with a CT212 and the tilt angle has been SUBWOOFER.
  • Page 10 THE CONTOUR CT212 RIGGING SYSTEM Figure 27. CT212 with Rigging System and Tube WARNING Mount installed on a Speaker Tube. Tipping Hazard Improper installation of the Active Speaker Tube or Sub Pole Cup on the SUB2112 subwoofer enclosure, or of the Tube Mount, Contour Rigging System and CT212 enclosure could create a hazardous or unstable condition.
  • Page 11 | 3 - DEPLOYING CT212 ATOP SUB2112 • While firmly holding the CT212 unit, release and remove the ball-lock pin from the mounting block. • Maintaining at all times the CT212, simply adjust the tilt of the enclosure to align the set of holes in the Contour Rigging System that Figure 16: The tilt-locking holes and their corresponding angles in the pole-mount configuration.

  • Page 12: Chapter 4. Flying Ct212 From A Truss Or Batten

    Notice: 1 Sound cannot be held responsible for any rigging equipment and accessories that are not manufactured or directly provided by 1 Sound. It is the responsibility of the installer to verify that the rated and certified Working Load Limit (including...

  • Page 13: Products, Accessories And Tools Required

    | 4 - FLYING CT212 FROM A TRUSS OR BATTEN Products, accessories and tools required To fly a Contour CT212 enclosure from a truss or batten, you will need the following: • CT212 (on page 3) loudspeaker enclosure • Contour CT212 Rigging System (on page 4) •...

  • Page 14: Installing The Contour Rigging System On The Ct212

    Contour Rigging System. System on the bottom of CT212. Figure 36. The corresponding mounting holes on the Contour CT212 Rigging System (bottom view). • Use a 5 mm hex wrench to tighten the two bolts on either side of the suspension yoke.

  • Page 15: Fixing The Tilt Angle Before Flying The Ct212

    | 4 - FLYING CT212 FROM A TRUSS OR BATTEN Figure 39. Installing the Contour Rigging System on CT212 • Use a 3 mm Allen wrench or hex driver to remove the four M5×35 mm screws from the rigging points indicated above on the bottom side of the cabinet.

  • Page 16: Attaching Redundant Safety Anchors

    THE CONTOUR CT212 RIGGING SYSTEM • When the required holes are perfectly aligned, take the other Figure 41. Sliding the mounting block to fix the tilt angle. M10×100 ball-lock pin supplied with the Contour Rigging System and press the lock-release button on the rear of the pin to allow it to pass into the hole.
  • Page 17 | 4 - FLYING CT212 FROM A TRUSS OR BATTEN Figure 45. M6 swivel hoist ring measurement Figure 47. Removing the mounting screws from the requirements. end of the CT212 with the Contour Rigging System installed. Figure 46. The rear panel of the CT212 with the suitable M6 rigging points for safety cables indicated.

  • Page 18: Flying Ct212 From A Truss Or Batten

    Notice: 1 Sound cannot be held responsible for any rigging equipment and accessories that are not manufactured or directly provided by 1 Sound. It is the responsibility of the installer to verify that the rated and certified Working Load Limit (including •...
  • Page 19 | 4 - FLYING CT212 FROM A TRUSS OR BATTEN Figure 54. Tightening the half coupler to the Important: Half couplers are generally available in specific Contour Rigging System (captive bolt style coupler clamping diameters that correspond to the common diameters shown).

  • Page 20: Attaching A Safety Bridle

    THE CONTOUR CT212 RIGGING SYSTEM Attaching a safety bridle When flown from a batten or truss using the Contour Rigging System, the CT212 must be fitted with a safety bridle (steel wire rope), secured to the structure from which it is flown.
  • Page 21 © 2024 1 SOUND All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher. 1 SOUND INC 34 Apple Street Tinton Falls, New Jersey 07724 U.S.A.
