PPS-500WE portable Power Station Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPS-500WE and is the answer not in the manual?

Questions and answers

Summary of Contents for Full energy PPS-500WE

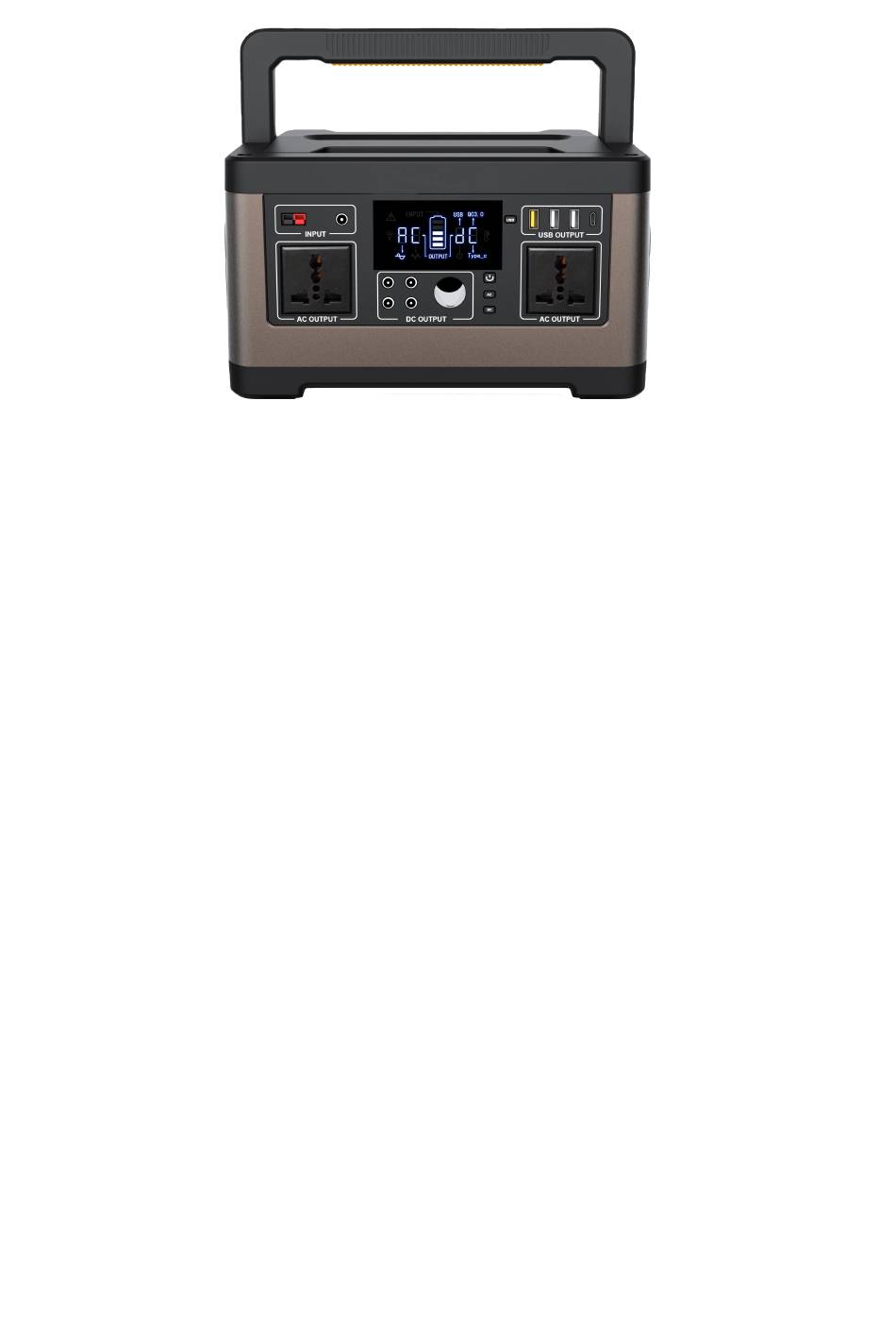

  • Page 1 PPS-500WE portable Power Station Instruction Manual...

  • Page 2: Table Of Contents

    Contents 1 General Warning 2 ABOUT THE UNIT 3 ATTENTION! 4 THE UNIT PROVIDES TRUE SINE WAVE OUTPUT 5 PRODUCT PARAMETERS 6 PRODUCT DESCRIPTION 7 PRODUCT INSTRUCTION 7.1 How to provide power for DC12V appliances (such as head lamp, fan) with this product? 7.2 How to provide power for AC appliances with this product? 7.3 Protection Mode...

  • Page 3: General Warning

    General Warning This device contains electronic components which operate via a power source (power supply). Do not let children use the device while unattended. Only use the device as described in the manual, or you run the risk of an electric shock. Children should only use the device under adult supervision.

  • Page 4: Product Description

    Capacity 520Wh, 11.1V(equivalent 140400mAh, 3.7V) Dimensions(LxWxH) 306x200x176mm Weight about 6.5kg Buil-in Battery High Quality Lithium ion Batteries Adapter:DC15V/6A Input Recharging Solar Panel Charging: DC13V~22V/6A Max Complete charging time DC15V/6A : 8~10 hours 1X USB-A (5V~9V/2A) Qualcomm QuickCharge 3.0 USB Output 1X USB Type-C (5V~9V/2A) Qualcomm QuickCharge 3.0 2 X USB-A (5V/3.1 1x Cigarette Lighter Adapter DC Output...

  • Page 5: Product Instruction

    AC Outlet, AC output voltage and frequency will be different according to different countries or areas. Please refer to the actual product before using. [LED Display] PRODUCT INSTRUCTION How to provide power for DC12V appliances (such as head lamp, fan) with this product? The 5.5mm 12V DC output is plug and play.

  • Page 6: How To Provide Power For Ac Appliances With This Product

    Note: The 12V DC output voltage is in the range between 9V~12.6V, the maximum output current is 12A. The DC output voltage decreases while the battery capacity decreases due to the chemical properties of the battery. If your unit does not have built-in input voltage stabilisation function, it may shut down when the input voltage is too low, please disconnect your unit in time.

  • Page 7: Protection Mode

    Protection Mode Short circuit, overload protection: In case of short circuit or overload on the AC output (more than 600 W), the AC output function will be stopped, please remove the load and press the AC button to reactivate. In some electrical appliances, such as refrigerators, ice machines, laser printers, etc., a power peak occurs at start-up or during operation that lasts only for a very short time but is up to 1000 W or more.

  • Page 8: Security And Maintenance

    1. Place your solar module in a location where it receives as much direct sunlight as possible. 2. Plug the output of the solar module into the input of the Power Station to start charging. You know the Power Station is charging when the blue LED battery indicator lights up and flashes. The Power Station is fully charged when all battery indicators stop flashing and remain constant.

  • Page 9: Cold Weather Usage

    lasting. Nevertheless, we recommend that you use it in the range of 10 °C~30°C to maintain optimum charging capacity. b) When charging, in order to avoid interference, please stay away from TV, radio and other equipment. c) If the unit has not been used for a long time, please disconnect the cable and store it. d) Some portable devices may need to be set in charge mode to charge, see the corresponding equipment user manual for more information.

  • Page 10: Warranty & Service

    Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal. Do not dispose of electronic devices in the household garbage! As per Directive 2002/96/EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.
