Summary of Contents for Captron SENSORhub SEH200
- Page 1 Controller Controller Original Operating Instructions Original Operating Instructions SEH200-__ SEH200-__...
- Page 2 Safety Notes and symbols used Warning notes in relation to personal injury / material damage are formulated according to the "SAFE” principle. This means they contain information on the type and source of the hazard, potential consequences as well as how to avoid and avert danger. The following hazard classifications apply in the safety notes: DANGER Danger designates a hazardous situation, which,...
-
Page 3: Personnel Qualifications
Tip provides additional useful information about the handling of the product. Symbol Meaning Avoiding and adverting danger in the warning note ► Instructions for action All instructions to be followed within a procedure are always listed in chronological order. List General safety All work on electrical systems or operating equipment may be carried out only by a specially qualified electrician according to the... -
Page 4: General Description

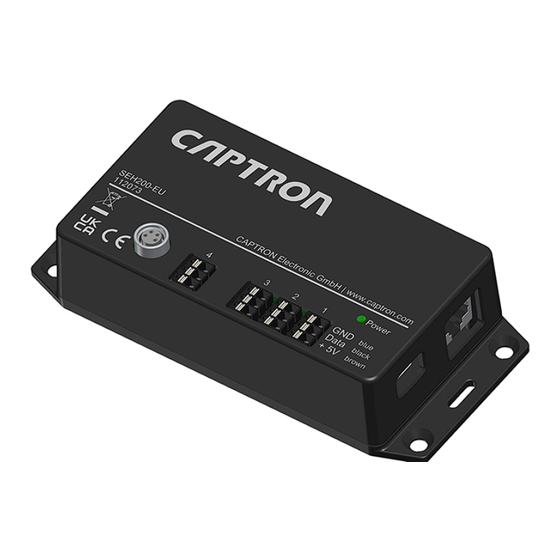

SEH200. General description SENSORhub SEH200 The SENSORhub is the interface between the customer application (for example, ERP system or inventory management system) and the LED strips. - Page 5 Assembly Install SEH NOTICE An unfavorable installation location can damage the SEH and the smartLED strips! Select an installation location that will not interfere with the SEH in subsequent operation. Select an installation location so that the smartLED strip cables can be connected to the SEH without any tension. ►...
-
Page 6: Technical Specifications
Disassembly Remove SEH ► Disconnect the SEH from the power supply. ► Unplug the RJ45 plug and, if applicable, the USB-C plug from the SEH. ► Depending on the installation type, unscrew the four screws or carefully remove the SEH from the mounting surface using a putty knife. -
Page 7: Manual Updates
All applicable statutory, state and local laws and regulations must be complied with. Manual updates CAPTRON reserves the right to make changes to the contents of this manual as needed. The most current version can be found on our website www.captron.com... - Page 8 Trademark The CAPTRON, CANEO, and oneGRID names and logos are registered trademarks of CAPTRON in various countries and are the property of CAPTRON Electronic GmbH. All other trademarks mentioned herein are the property of their respective owners.
