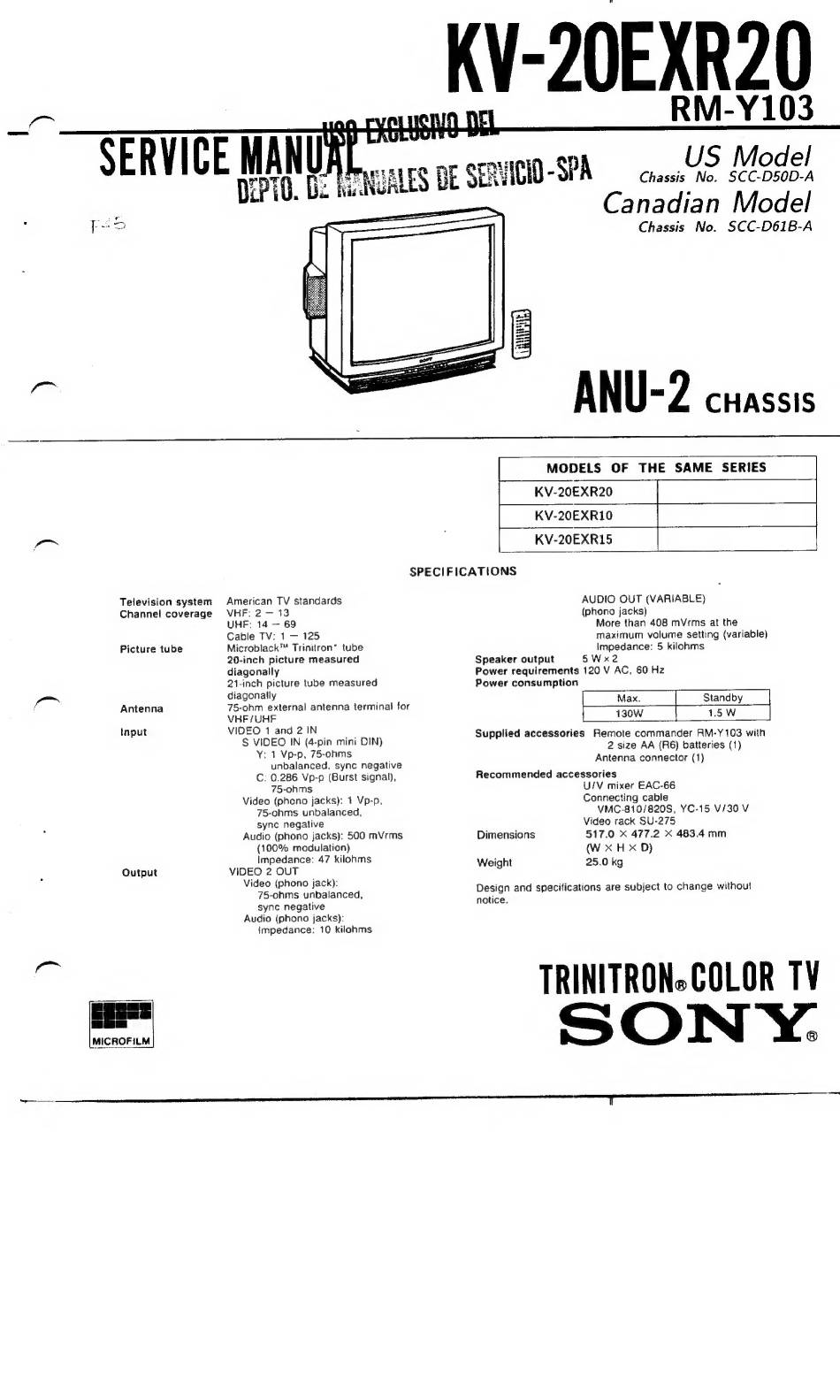

Sony TRINITRON KV-20EXR20 Service Manual

SERVICE MAN
ГАЗ!
American TV standards
VHF: 2 — 13
UHF: 14 — 69
Cable TV: 1 — 125
Microblack™ Trinitron* tube
20-inch picture measured
diagonally
21-inch picture tube measured
diagonally
75-ohm external antenna terminal for
VHF/UHF
VIDEO 1 and 2 IN
$ VIDEO IN (4-pin mini DIN)
Y: 1 Vp-p, 75-ohms
unbalanced, sync negative
C: 0.286 Vp-p (Burst signal),
75-ohms
Video (phono jacks): 1 Vp-p,
75-ohms unbalanced,
sync negative
Audio (phono jacks): 500 mVrms
(100% modulation)
Impedance: 47 kilohms
VIDEO 2 OUT
Video (phono jack):
75-ohms unbalanced,
sync negative
Audio (phono jacks):
impedance: 10 kilohms
Television system
Channel coverage
Picture tube
Antenna
Input
Output
EH
MICROFILM
KV- 20ЕХК20
RM-Y103
US Model
Chassis No. SCC-D50D-A
Canadian Model
Chassis No. SCC-D61B-A
ANU-2 crassis
MODELS OF THE SAME SERIES
KV-20EXR20
KV-20EXR10
|
|
KV-20EXR15
SPECIFICATIONS
Speaker output
AUDIO OUT (VARIABLE)
(phono jacks)
More than 408 mVrms at the
maximum volume setting (variable)
Impedance: 5 kilohms
5Wx2
Power requirements 120 V AC, 60 Hz
Power consumption
Max. Standby
130W 1.5 W
Supplied accessories Remote commander НМ-Ү103 with
2 size AA (R6) batteries (1)
Antenna connector (1)
Recommended accessories
Dimensions
Weight
U/V mixer EAC-66
Connecting cable
VMC-810/820S, ҮС-15 V/30 V
Video rack SU-275
517.0 X 477.2 X 483.4 mm
(W x H x D)
25.0 kg
Design and specifications are subject to change without
notice.
