Summary of Contents for Spartan Tool 81

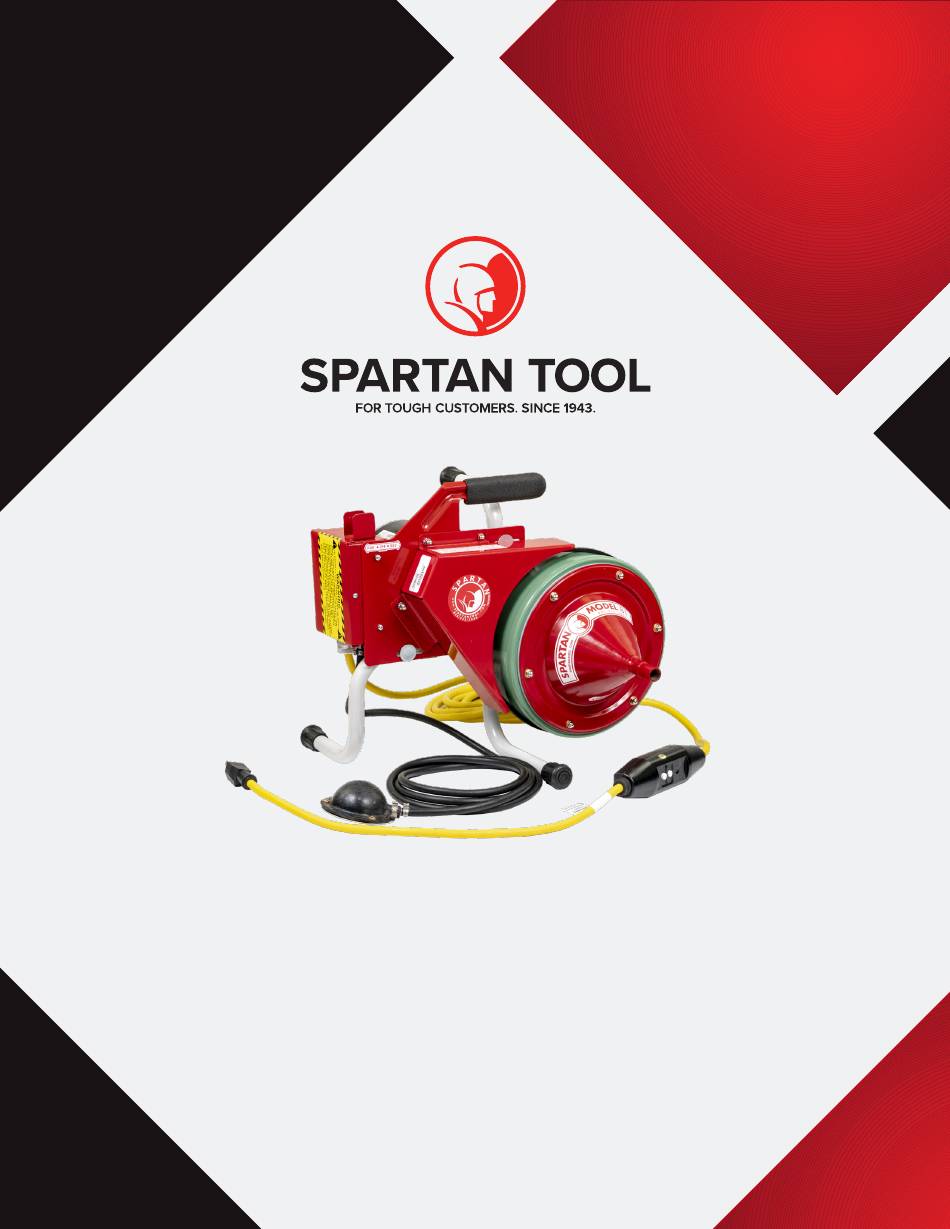

- Page 1 PRODUCT MANUAL Model 81 Cable Machine Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 800.435.3866 SpartanTool.com order by phone order online © 2023 Spartan Tool LLC Part # 04703302...
-
Page 2: Table Of Contents
HOW TO INSTALL CABLE IN MODEL 81 ........ -
Page 3: Warnings
Warnings • Read the safety and operating instructions before using any Spartan Tool product. Drain and sewer cleaning can be dangerous if proper procedures are not followed and appropriate safety gear is not utilized. Read the engine owners’ manual for instructions and safety precautions on engine operation. -
Page 4: Technical Information
Technical Information GENERAL • Unique cone-shaped internal drum applies extra torque to the cable • Pipe Sizes: 1 1/4” - 3" diameter SAFETY • Weight: 35 lbs. • Cable Capacity: 50 feet of 1/4 or 5/16 inch diameter cable • Air-operated foot switch •... -
Page 5: How To Assemble
How to Assemble Remove drum and power unit from cartons. Step 1: Set power unit in vertical position. (See picture on front page.) Step 2: Mount drum on power unit. Lock drum to power unit by tightening (2) thumb screws. (Thumb screw shoulder must enter hole in collar before tightening.) Step 3: Loosen (3) wing nuts on motor mount plate. -
Page 6: How To Repair 1/4" And 5/16" Cables
How to Repair 1/4" and 5/16" Cables All 1/4" and 5/16" cables can be repaired with a replaceable end. If you kink your cable, cut the cable off at the kinked portion. Grind the end of same to provide a lead thread. Now, pick up your repaired end and thread same on the regular cable, as you would a nut on a bolt, turning same about three turns, which will fasten it to the cable securely. -
Page 7: How To Install Cable In Model 81
How to Install Cable in Model 81 FIG. 1 FIG. 2 Position drum unit in a vertical position. Remove (6) nuts, washers, drum cover, drum cover spacer, and (2) drum cover seals. Assemble drum cover spacer and (2) seals to outer drum as required for various cables. See Figure 1 and Figure 2. -
Page 8: Safety Instructions
Safety Instructions Use of any electrical equipment in a wet or damp environment can cause fatal shock if not properly guarded against by the operator. Know Your Drain Cleaning Machine. Read this Operator's Manual carefully. Learn the operation, applications and limitations of this machine. - Page 9 Safety Instructions If in doubt, use the next heavier gage. (The smaller the gage number, the heavier the cord.) When the machine is used outdoors, use only extension cords intended for use outdoors and so marked. Do not allow an extension cord to be exposed to water. Don't assume that all three hole outlets are properly installed.
- Page 10 Safety Instructions 20. Do Not Over Torque Cables. Excessive and/or continued rotation of the drum once an obstruction has been encountered will over torque the cable. Kinking or breakage of cable may result. A worn cable can be identified as being very limber, kinked or as having flattened coils on the outside of the cable.
-
Page 11: Model 81 Cables
Model 81 Cables Spartan Cables Without Inner Core Flexible open hook end enables operator to thread cable through cross bars - eliminating necessity of removing trap - to do a thorough job quickly. One repair hook furnished with each cable. - Page 12 Model 81 Cables Repair Bulbs For 5/16" Inner-Core Cables: Part Number Description 02885200 Repair Bulb 02885200 Repair Bulb Repair Hooks How to Use Repair Hook or Repair Bulbs If cable is kinked, simply remove kinked portion by cutting it off at a point about 1" back of bent section. Attach Repair Hook by threading it over cable end about four turns.
-
Page 13: Power Unit - 04703300
Power Unit - 04703300... - Page 14 Grip, Model 81 04715200 Handle 04725200 Nut, Acorn 10-32 Item Part Number Description Qty. 44002100 Cover, Control Box (Model 81) 44002400 81 Electrical Assembly 44307300 Guard, Mod 81 Belt 44307310 Elevator Bolt 1/4-20 x 1-3/4 44307320 Elevator Bolt 1/4-20 x 2-1/2...
-
Page 15: Electrical Assembly - 44002400
Motor, Model 81 01921801 Slotted 8-32 x 1/2 06517743 Terminal, Flag Slip On Nut, Kep #8-32 Zinc 03312001 44002200 Weldment, Model 81 Control Box Plated Terminal, Spade MVU- 2202800 Assy, Pressure Switch (WM) 03447200 14-250-DFK 44003000 Assy, Wire Jumper Black 5"... -
Page 16: Wiring Diagram
Wiring Diagram TOGGLE SWITCH BLACK BLUE ORANGE NOTE: KEYWAY FACING FORWARD (F) YELLOW MOTOR ON CONTROL BOX BLACK _ i ^ ` h BLACK t efq b WHITE m o b p p r o b = p tfq ` e PRESSURE SWITCH m l i ^ o f q v POLARITY... -
Page 17: Drum Assembly - 04722600
Drum Assembly - 04722600 Item Part Number Description Qty. 04726900 81 Outer Drum & Flange 04727000 81 Drum Cover 04720400 Drum Cover Spacer 04720300 Drum Cover Seal 44280500 81 Cable Clamp Assembly 04701400 Thumb Screw 01588200 Flat Washer, #10 04725200... -
Page 18: Warranty Information
Warranty Information For our terms and conditions, including warranty, please visit https://spartantool.com/pages/terms- and-conditions. For warranty assistance, please contact us at (800) 435-3866 or customerservice@ spartantool.com. CONTACT US Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 800.435.3866 SpartanTool.com... - Page 19 Notes...
- Page 20 CONTACT US Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 800.435.3866 SpartanTool.com...
