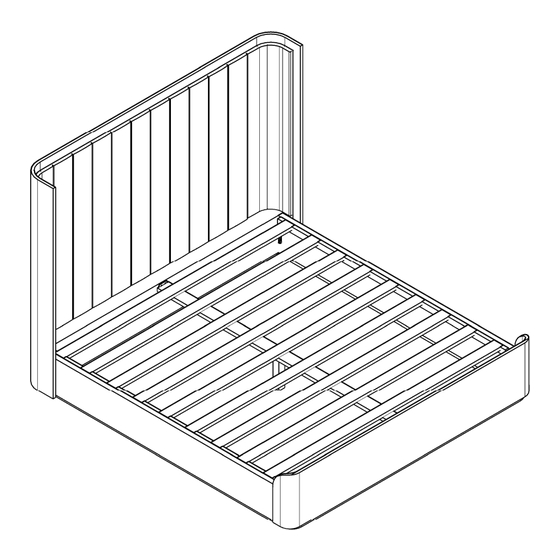

- Page 1 ASSEMBLY INSTRUCTION BRANDO QUEEN BED Ebako Code : BD 3522 Q Dimensions : 64.7'' X 86.3" X 58.0" inches Page 1 of 6...
-
Page 2: Installation
Components & Hardware NOTE : TWO PEOPLE ARE RECOMMENDED FOR ( pc) INSTALLATION PARTS INCLUDED IN CARTON 1 PART DESCRIPTION QTY (pc) PARTS INCLUDED IN CARTON 2 PART DESCRIPTION QTY (pcs) PARTS INCLUDED IN CARTON 3 PART QTY (pcs) DESCRIPTION ( pc) S pp R s ( pcs) - Page 3 Step 1. Bring it close Siderails (C) to Headboard (A) according to the ABC sticker attached. Step 2. Connect the bed connector on the Siderails (C) to the Headboard (A) (See Figure 1). Step 3. Repeat Steps 1-2 for Footboard (B) connection and the opposite Siderails (C) (Headboard and Footboard connections).
- Page 4 Step 5. Install Center Leg (F) to Center Slat Support (E). (See Figure 2) CENTER LEG Figure 2. Step 6. Install Center Slat Support (E) to Headboard and Footboard. (See Figure 3) CENTER SLAT SUPPORT Figure 3. Page 4 of 6...
- Page 5 Step 5. Install Wood Slats (D). (See Figure 4) SLATS Figure 4. Page 5 of 6...
- Page 6 Clean dust on the furniture surface using a duster. Polish every six months. Please contact one of our Product Specialists for assembly assistance or questions at 1-800-537-8484 or email ps@frontgate.com. Specialists are available weekdays 8:00 AM to 8:00 PM EST or Saturdays 9:30 AM to 6:00 PM.
