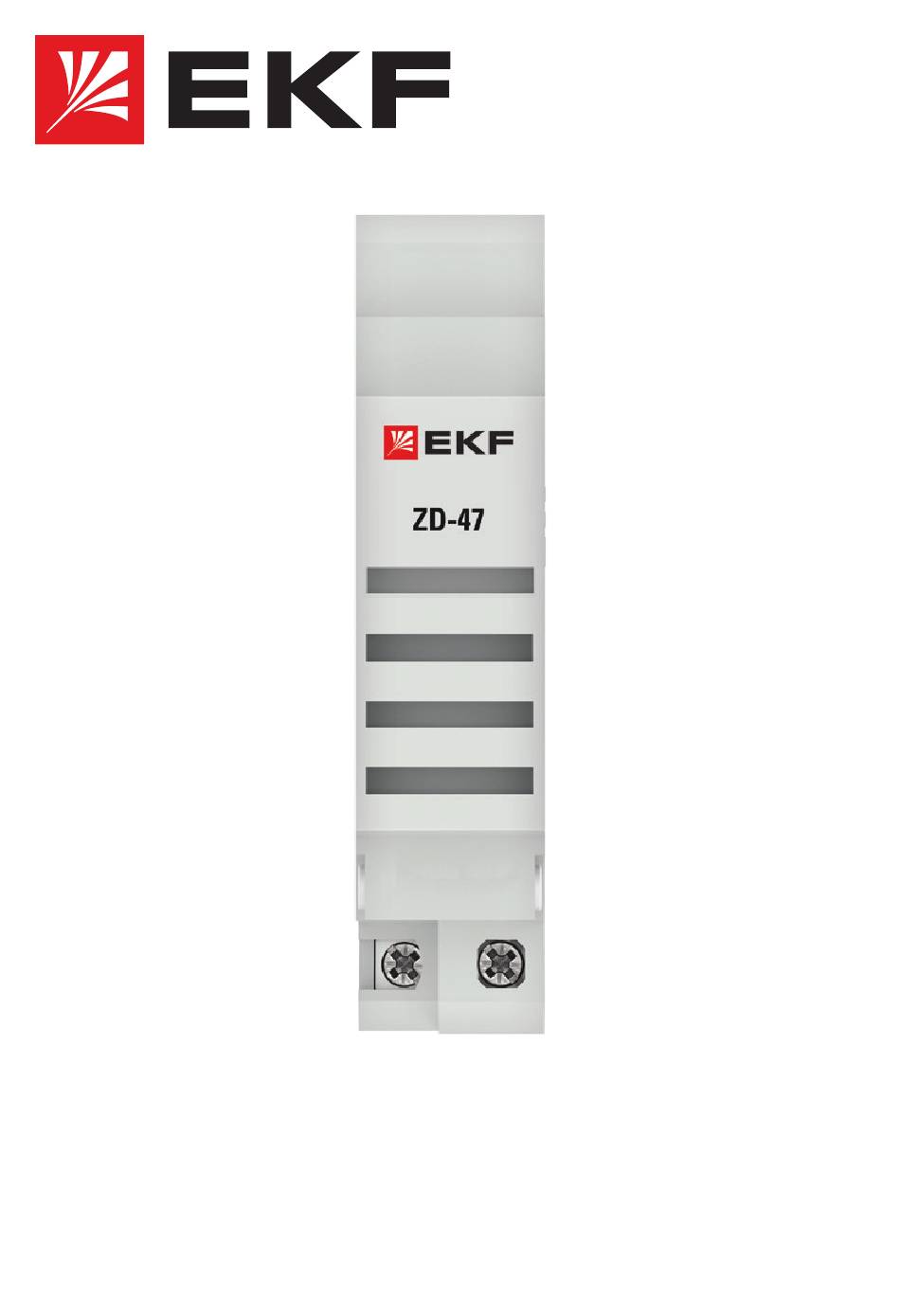

- Page 1 TECHNICAL MANUAL Modular bell ZD-47 EKF PROXIMA...
-
Page 2: Technical Data

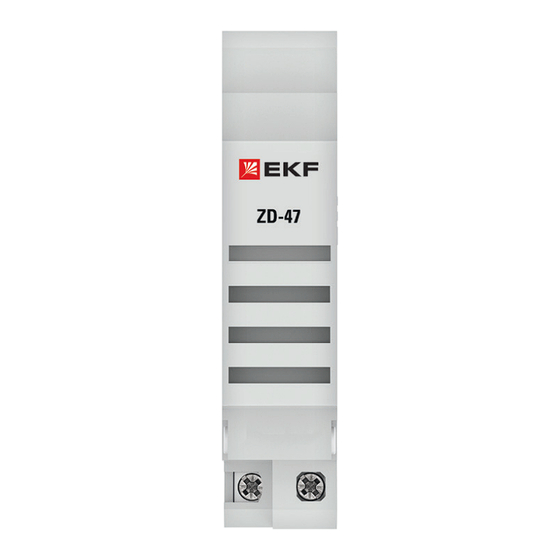

1 DESCRIPTION Modular bell ZD-47 EKF PROXIMA is designed to be used in auxiliary AC control and signaling circuits to issue audible alarm signals. Modular bell complies with IEC 60947-5-1 requirements. 2 TECHNICAL DATA Table 1 Characteristics Value Rated supply voltage Ue, V... -
Page 3: Overall Dimensions
3 OVERALL DIMENSIONS Fig. 1 4 INSTALLATION AND CONNECTION Both copper and aluminum wire connections are supported. Do not connect copper and aluminum wires concurrently to the same terminal. Fig. 2 - Wiring diagram... -
Page 4: Maintenance
Modular bell shall be installed and connected by qualified electrical personnel. Modular bells shall be mounted onto 35 mm DIN rail. 5 OPERATION CONDITIONS Operating temperature: - 25 °С to + 50 °С. Altitude above sea level: max. 2000 m. Position in space: vertical or horizontal on a vertical plane. - Page 5 Service life: 20 years. Manufacturer: for information, refer to the product package. Importer and EKF trademark service representative: EKF ELECTRICAL SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Russian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld.
- Page 6 12 CERTIFICATE OF ACCEPTANCE Modular bells ZD-47 EKF PROXIMA have been approved for operation. Date of manufacture: For information, refer to the product package. Stamp of technical supervision ekfgroup.com...
