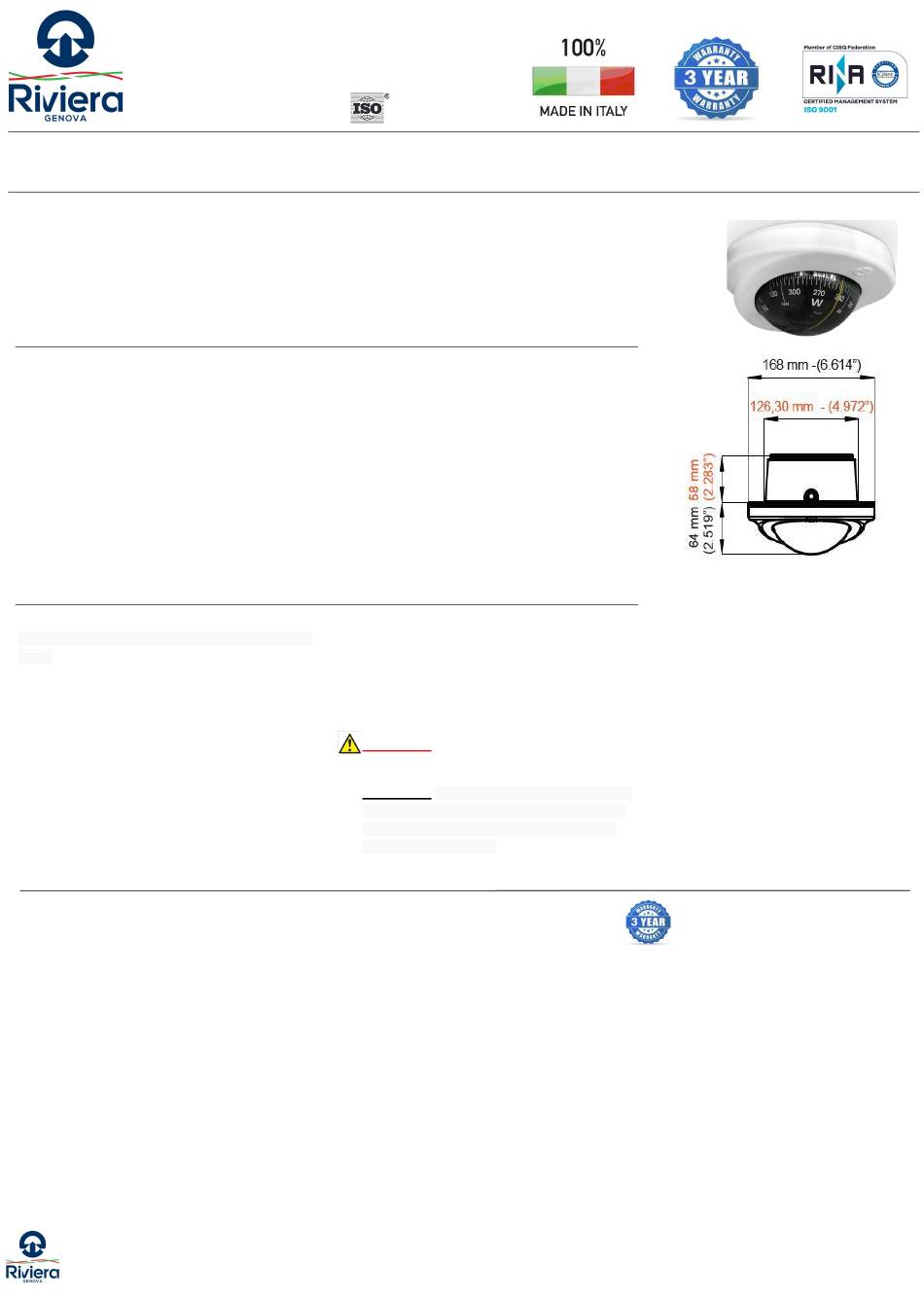

USER'S MANUAL - Magnetic compass for navigation RIVIERA type ASTRA 4 "
Dear Customer,
in thanking you for your preference and trust in our products, we wish to inform you that this marine magnetic compass
has been designed and built to perfection in the RIVIERA srl factory in Genoa.
After manual assembly, it was subjected to tests and quality controls in accordance with the requirements of the Italian
shipping register, RINA. It is made with materials that have proven to guarantee its functioning aboard boats for many
years.
Keep this manual together with the on-board documents.
INSTALLATION
Please read the following carefully.
Choose the installation site so that it is as far away as possible from magnetic fields, or other moving ferrous
1)
masses.
Refer to the on board mounting scheme contained in the box.
2)
Before connecting the two LED lighting wires to the on-board system, check the correspondence of the
3)
network voltage.
To fix the compass to the dashboard, the cover flange must be lifted. To facilitate the operation, two slots
4)
have been provided on the right and left sides. Use a slotted screwdriver and insert it inside a slot. Rotate in
any direction and repeat the same procedure on the opposite side. The flange will rise and you can remove it
completely. Insert the compass in the seat and fix it using the holes as per the drilling diagram provided.
Reposition the cover flange paying attention to the correct insertion, in order to avoid breaking the retaining
forks. As a confirmation and indication, check that the RIVIERA logo placed on the flange is in the direction of
the stern of the boat.
COMPENSATION & MAINTENANCE
The RIVIERA ASTRA compass can be used for zone A, B
and C.
Compensation is not foreseen for RIVIERA ASTRA.
Clean the Riviera compass with a soft cloth moistened with
fresh water.
REPAIR
For the purposes of forfeiture of the warranty terms and for
your safety, any repairs may be carried out only and
exclusively by the manufacturer. In case of need, please
contact RIVIERA Srl - info@rivieragenova.com
PACKAGING
The RIVIERA WHITE ASTRA compass is delivered in
protective packaging suitable for international shipping
1 box dim.19 x19 x19,50 cm total weight Kgs. 1,800
This document is valid as a guarantee certificate. The company RIVIERA srl Genoa guarantees that its compasses are built in a workmanlike manner and that they are free
from manufacturing and material defects. If within 36 months from the date of manufacture (stamped on the flange) the product should show malfunctions, the company will
repair or replace it, at its sole discretion, free of charge.
The warranty is void if the damage is caused by improper use, incorrect installation or accidental breakage. The warranty does not cover any costs deriving from
assembly or disassembly of the products, transport of the same and expenses for technical personnel, even if attributable to manufacturing defects. In the event
of a dispute, the competent court is the court of Genoa.
Riviera Srl Genova - Via Inferiore Rio Maggiore, 4A - 16138 Genova (Italy) – Tel. +39 010 8355286 – info@rivieragenova.it
LIQUID
The liquid contained in the RIVIERA compasses is
stable in the temperature range from -30 ° to + 60 ° C.
In this range there should be no bubbles, this is
guaranteed by an elastic
compensates for volumetric variations. The liquid is
Shell SolD / 70 (petroleum).
ATTENTION: Never unscrew the filler plugs and
screws for any reason.
ATTENTION: Opening the box, You will see an air
bubble in the compass. By turning the compass
into the correct mounting position, the bubble
will no longer be visible.
Certificate of Warranty
GENERAL FEATURES
Apparent diameter : 4" ( 100 mm)
Mounting: flush (ceiling mount)
Dial gradation 5°
Dial colors: black
Front reading
LED lighting 12V (24V on request)
membrane that
blue color as standard
Anti-glare screen
Internal gimbal suspension
Compensation not foreseen
3 years warranty
100% repairable
Weight: 1,700 Kgs
