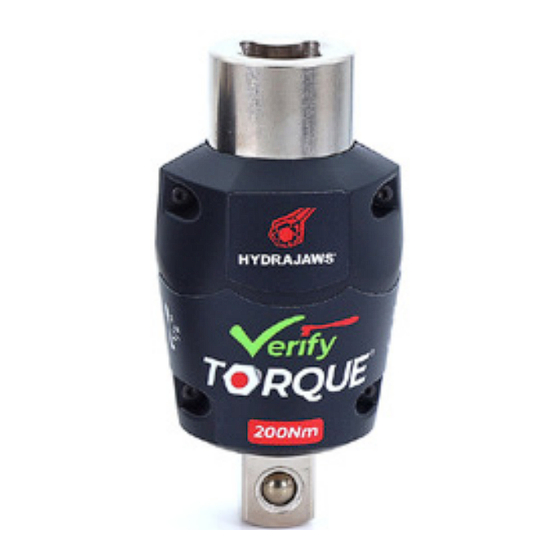

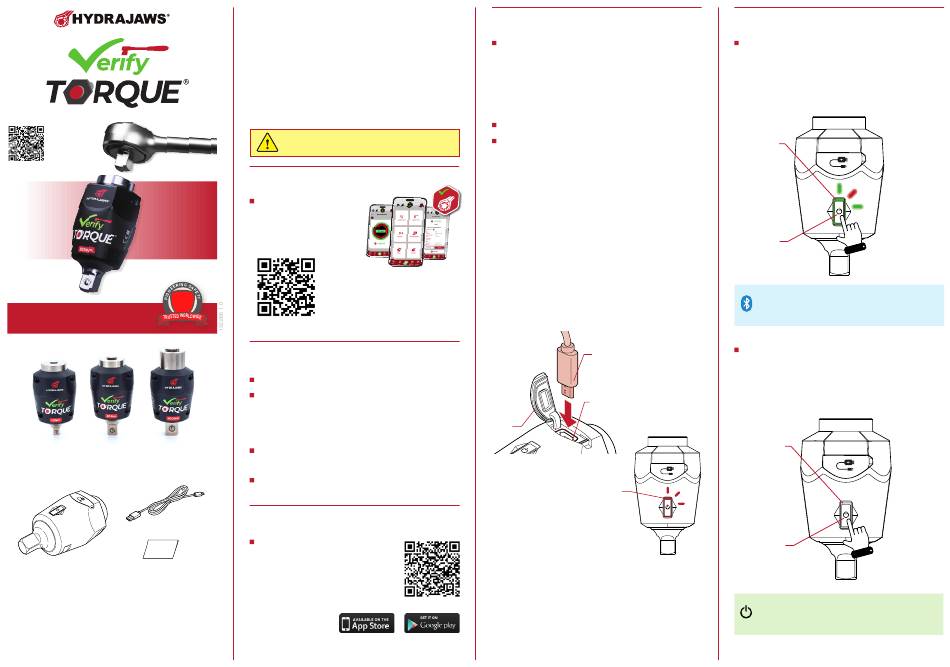

Hydrajaws Verify TORQUE 010-004 Quick Start Manual

Hydrajaws
Verify App
required.
Download
here.
10Nm
QUICK
80Nm
START
GUIDE
200Nm
OVER
35
YEARS
www.hydrajaws.co.uk
CONTENTS
1 x Verify Torque Device Charging Cable (1m)
(10, 80 or 200Nm)
Quick guide
Quick
guide
1. Link to User Manual
2. Usage; Download Verify App
3. Preparation
4.
Turning the device ON/OFF
5.
Connecting to the VERIFY App
6.
Maintenance, specifications
2
This quick guide describes
precautions and things to check
before measurement, as well as
how to use the device.
Please read this guide carefully
before use.
This guide covers the 10Nm, 80Nm and 200Nm devices.
Do not use with power tools.
LINK TO ONLINE MANUAL
A detailed user manual
showing more App
functionality is available
at the following link:
www.hydrajaws.co.uk/
verify-manual
1. USAGE
Measurement of torque values
Manage torque records
The following items are required to operate
the Verify Torque device:
A USB battery charger to charge the
Verify Torque device.
Tools such as drivers, socket wrenches, etc.
2. DOWNLOAD VERIFY APP
A iOS or Android device is also
required that has the Hydrajaws
Verify App installed.
3
Download links here:
3
www.hydrajaws.co.uk/verify
4
5
6
7
3
3. PREPARATION
Charging the Verify Torque unit
Charge the Verify Torque main unit before using it
for the first time.
In addition, charge the Verify Torque main unit
before use in the following cases:
The remaining battery level is low or empty.
Device has not been used for a long period.
Charge the product in an indoor environment
where the ambient temperature is 0°c to 40°c.
erify
1.
Charge the product using a commercially
available USB battery charger with the
supplied charging cable.
Insert the USB connector securely straight into
the AC adaptor in the correct direction.
2.
Open the charge cover on the Verify Torque.
3.
Insert the Micro USB connector securely
straight into the port in the correct direction.
Micro
USB
Micro
USB
Cover
4.
The LED lamp lights
LED
up in red and the
charging starts.
5.
When charging is complete,
the LED lamp turns OFF.
Charging time: approx. 2.5 hours.
6. Unplug the AC adaptor from the outlet.
7.
Unplug the charging cable from the Verify
Torque main unit and the AC adaptor.
8.
Close the cover of the Verify Torque main unit.
4
4. TURNING THE POWER ON/OFF
Turning ON the power
Hold down the power button for 2 seconds and
then release it.
The LED lamp first lights up in green, and then
blinks in red and green alternately.
LED
Hold
down
Power
Button
The unit will automatically enter pairing mode
for 120 seconds after the power is turned on.
Turning the power OFF
Insert the Micro
USB connector
Hold down the power button for 2 seconds and
securely straight
then release it.
into the port in the
correct direction
The LED lamp turns red and then turns OFF.
LED
off
Hold
down
Power
Button
The power is automatically turned OFF
after 5 minutes of inactivity.
5
