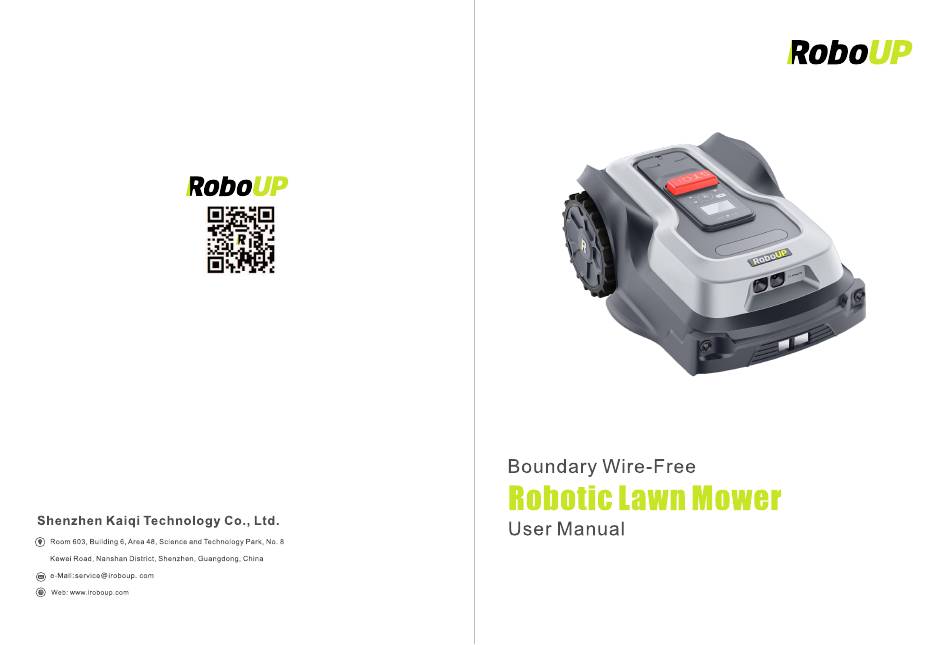

Raccoon 1 lite
Raccoon 1
Please go through the user manual in detail before use to understand
all instructions and safety guidelines.
Advertisement
Table of Contents
Related Manuals for RoboUP Raccoon 1 lite
Summary of Contents for RoboUP Raccoon 1 lite
- Page 1 FI: Pääse viimeisimpään käyttöohjeeseen (PDF) useilla kielillä skannaamalla QR-koodi. DK: Få adgang til den seneste brugervejledning (PDF) på flere sprog ved at scanne QR-koden. Raccoon 1 lite Raccoon 1 Please go through the user manual in detail before use to understand...
- Page 2 The mower creates automatically a map of your lawn and starts mowing. Using RoboUP, you will have no more worries about the safety risk of cutting your lawn with a robot mower! Thanks to AI vision technology, RoboUP mower can perceive obstacles with its smart eyes and avoid touching living things to ensure safety.
- Page 3 Only use the original detachable power supply provided with the mower to recharge the battery. Please do not run when operating the mower manually using the RoboUP App. Always walk, ensure stability on slopes, and maintain balance at all times.
- Page 4 D. 9*Spare Cutting Blades & Screws...
- Page 5 LED indicator of the charging station The mower is fully charged / There is no mower on the charging station The charging station is not power on 1. Rain Sensor 8. Rear Wheels 2. STOP Button 9. Front Wheels 10. Off-set Blade Disc (with 3 blades) 3.
- Page 6 4.4 Find a good spot for the RTK base station RoboUP utilizes a comprehensive navigation system with multiple sensors including RTK, VSLAM, IMU, and odometry for navigation. Real Time Kinematic (RTK) is a satellite navigation system that significantly enhances equipment positioning accuracy, offering access to all global navigation systems and additional sensors.
- Page 7 4 Installation Guide 4.5 Install the charging station and RTK base station 1. Place the charging staion and the RTK base station on the target spot. 2. Install the RTK installation components and use the RTK connection cable to connect the RTK base station to the charging station. Use an extension cable as needed.
- Page 8 3. Wait for approx. 10 minutes to allow the mower to search/find as many satellites as possible for the best RTK signal. The mow will prompt RTK when completing search. 4. Enable Bluetooth on your smart phone, start RoboUP App and follow instructions to pair the mower...
- Page 9 5 Set up the Work Area 6. For slopes larger than 15% and adjacent to open area like a public road, put a fence or a protective wall along the outer edge of the slope to ensure the mower won't slip out of the lawn. 5.1 Preparation 1.
- Page 10 5 Set up the Work Area 1. Auto mapping is suitable for lawns that have a clearly visible physical boundary, such as walls, bricks, stones, fences, hedges, and other such boundaries that are not grass. 2. If the boundary of the lawn is a skeletonized fence such as barbed wire, which may not be detected by the mower because the material is too thin, then the mower may have frequent collisions during auto mapping, but the map can eventually be created successfully.
-
Page 11: Operation
6 Operation 7 Features Introduction 1. CW/CCW 1. Start mowing The blade disc will rotate in clockwise (Cw) and counterclockwise (Ccw) direcions alternatively to use both cutting There are three methods to start mowing. blade edges. This will reduce the frequency of replacing worn out blades. A. - Page 12 Raccoon 1 Lite Raccoon 1 Raccoon 1 Lite Raccoon 1 1200 ≤50 ≤70 ≥45 ≥100 Information Panel APP Smart Control APP Connection Options Bluetooth Frequency Range Wi-Fi Frequency Range...
- Page 13 To achieve better mowing results and increase service life, be sure to keep the mower clean and the blades in good condition inspection and maintenance should be carried out by an adult every week during continuous use. Any damaged or worn-out parts should be replaced.
-
Page 14: What Is Not Covered By This Warranty
By using your RoboUP product, you agree to be bound by these Policies. lf you are not eligible or do not agree to any of the Terms, install particular software updates. If the issue cannot be solved remotely, you will obtain an RMA number and need to return the do not use your RoboUP product. - Page 15 * If the product cannot be delivered or is rejected, it will be returned to RoboUP. RoboUP will retain the product and calculate a storage fee from the date of return. The standard storage fee is: US$10/day or EURO€10/day. If/when the storage fee becomes equivalent to the remaining value of the product, RoboUP has the right to dispose of the product.
-
Page 16: Error Messages
10.2 Error Messages... - Page 17 10.3 Troubleshooting...
- Page 19 This device complies with Industry Canada's RSS for license-exempt radio equipment. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) the user must accept any interference received, including interference that may cause undesired operation. This equipment complies with Industry Canada radiation exposure limits established for an uncontrolled environment.
