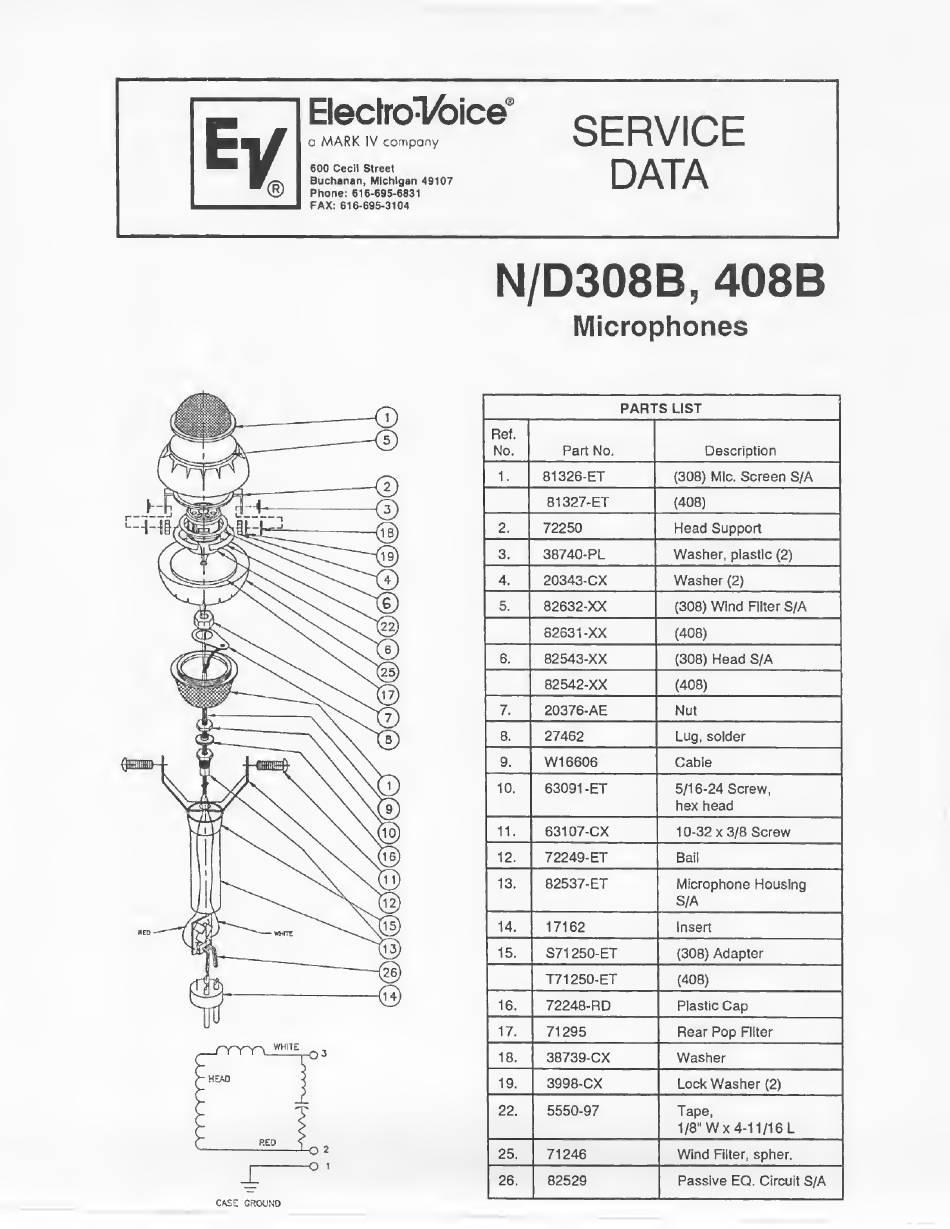

Mark IV Electro-Voice N/D308B Service Data

ElecIroTbice
o MARK IV company
Ei/
SERVICE
cy
600 Cecil Street
Buchanan, Michigan 49107
Phone: 616-695-6831
ray- RiR.RQA.nina
DATA
N/D308B, 408B
Microphones
PARTS LIST
Ref.
No.
Part No. Description
1. 81326-ET
(308) Mic. Screen S/A
81327-ET (408)
2. 72250 Head Support
3. 38740-PL Washer, plastic (2)
WM\
20343-CX Washer (2)
5. 82632-XX (308) Wind Filter S/A
82631-XX (408)
6. 82543-XX (308) Head S/A
82542-XX (408)
ma
20376-AE Nut
8.
27462 Lug, solder
9. W16606 Cable
10.
63091-ET 5/16-24 Screw,
hex head
11. 63107-CX 10-32 x 3/8 Screw
12.
72249-ET Bail
13. 82537-ET Microphone Housing
S/A
14. 17162 Insert
15. S71250-ET (308) Adapter
T71250-ET (408)
16.
72248-RD Plastic Cap
17.
71295 Rear Pop Filter
18.
38739-CX Washer
19.
3998-CX Lock Washer (2)
22. 5550-97 Tape,
1/8" Wx 4-11/16 L
25. 71246 Wind Filter, spher.
26. 82529
Passive EQ. Circuit S/A
CASE GROUND
