medmix SMARTLUX User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
USER'S MANUAL
2013-10-10

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMARTLUX and is the answer not in the manual?

Questions and answers

Related Manuals for medmix SMARTLUX

Summary of Contents for medmix SMARTLUX

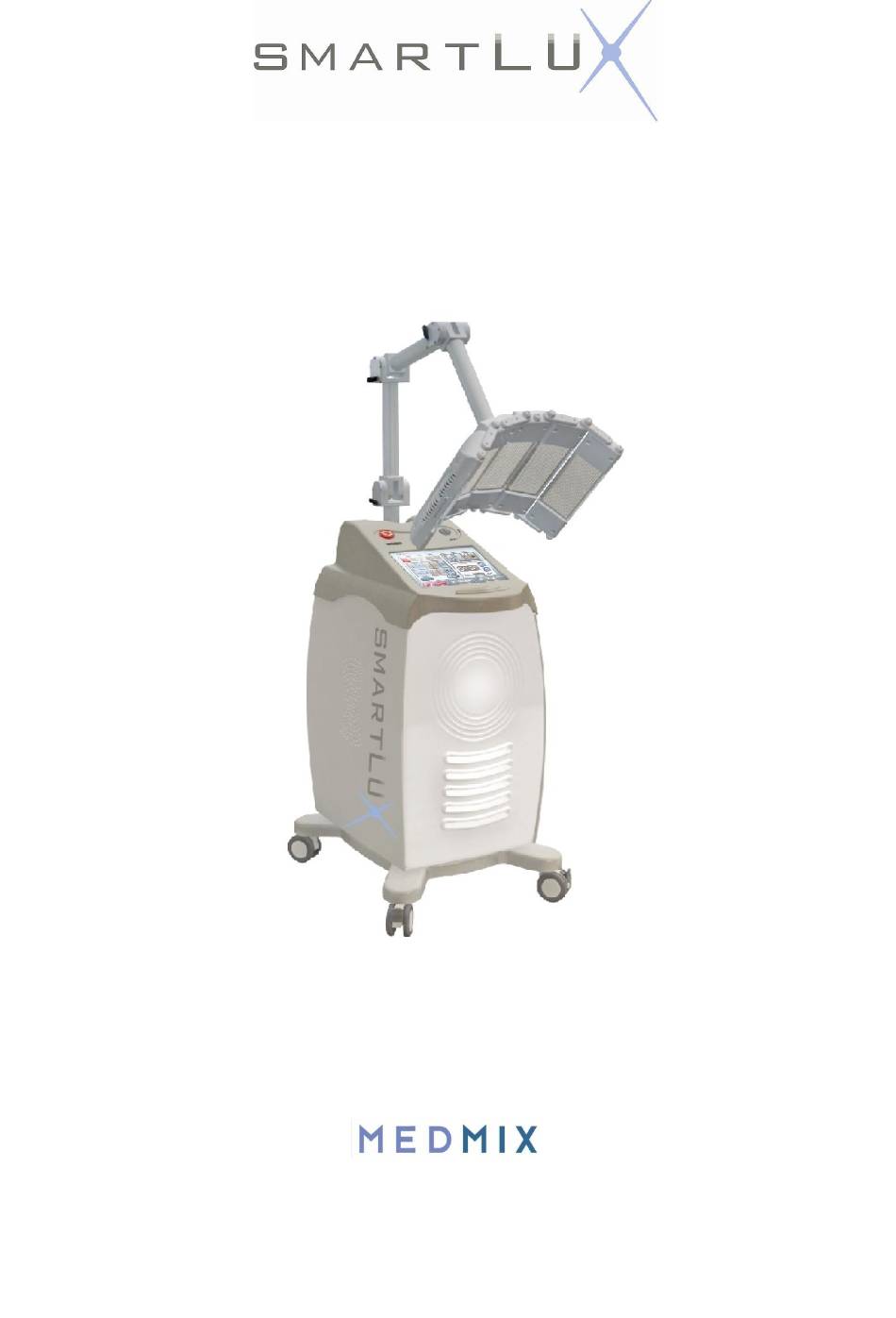

  • Page 1 USER’S MANUAL 2013-10-10...
  • Page 2 (420nm), IR (830nm), yellow (585nm), green (535nm), FX (635nm/830nm). SMARTLUX is medical equipment that uses a kind of light. The light is safe and pure to stimulate and heal damaged skin. It can be used for acne treatment, reducing wrinkles, scar reduction and anti-aging treatment.
  • Page 3 8) SMARTLUX is supplied with a moulded mains lead. If the lead is unsuitable contact MEDMIX for a replacement. Do not modify the lead as this may make it unsafe. 9) Do not place objects on the mains lead. Install SMARTLUX where no one can step or trip on the lead.
  • Page 4 Eye protection Caution! When used correctly for normal treatments the output of SMARTLUX is less than the maximum recommended Maximum Permissible Exposures (MPEs). Nevertheless it is prudent to ensure that the patient’s eyes are closed throughout the treatment. If treatment is on the face, then the use of opaque pads over the eyelids is recommended.
  • Page 5 5 minutes after that, the key switch should be turned on again to operate the system. If the failure occurs repeatedly, please contact MEDMIX immediately. 5. Description of Instrument The system is composed of three major parts.
  • Page 6 Front A. Key Switch D. Front Lamp B. Emergency Switch E. Arm C. Color Touch Screen F. Head 5.3.1 Without the safety key, you cannot operate the equipment. The key can only be Key Switch removable when the switch is turned off. If you turn the key right, the power is supplied to the machine enabling you to read the information on the color touch screen.
  • Page 7 Screen Caution! You must not press down on the touch screen with a sharp object nor spray liquid on the screen. 5.3.4 Depending on the wavelength of the head, the front lamp changes its color. The Front Mood operator and patient both can identify the type of light and the wavelength that is being Lighting used just by looking at the color of the front lamp.
  • Page 8 5.4.4 -. Output Wavelength : 830nm +/- 5nm -. Bandwidth : 30nm +/- 3nm -. Total Power : 46W +/- 4W -. Output Intensity : 60mW/ ㎠ -. Standard Dose : 72J/ ㎠ -. Treatment Time (Standard Dose) : 20 minutes -.
  • Page 9 -. Standard Dose : RED:54J/ ㎠ , IR:42J/ ㎠ , RED+IR:90J/ ㎠ -. Treatment Time (Standard Dose) : 20 minutes -. Treatment Time (Max) : 40 minutes -. Dose Range (Adjustable) : RED:1~108J/ , IR:1~84J/ ,RED+IR:1~180J/ ㎠ ㎠ ㎠ -. Head Overall Dimensions (L X W) : 320mm X 410mm -.
  • Page 10 Caution! Make sure to hold the head piece when attaching and detaching the head pieces 6.Specifications Model Name SMARTLUX Body Dimensions : 390mm X 540mm X 840mm (W X L X H) Head Dimensions : 320mm X 410mm...
  • Page 11 7.Operating the Instrument Introduction Caution! This system must be operated only by the users who have been trained how to operate the machine. This manual only explains how to operate the system technically without offering any medical descriptions. You should check the following before using the system. -.
  • Page 12 4. Mode 9. STOP 5. Time Select 7.4.1 When the equipment is in the stopped state and off, you can control all features. In other words, once you press the ‘STOP’ button, you can reset the system and operate it START/STOP as you want.
  • Page 13 7.4.3 Head Area 1. Buttons by head area: You can choose a spot size of a head ranging from 1 to 10. 2. ‘ALL’ button: If you press the ‘ALL’ button, the maximum size of the spot of the head is selected.
  • Page 14 7.4.3 Brightness 1. ‘Brightness’: You can adjust the brightness levels from 1 to 5 by touching the ‘Brightness’ button. This button can control the brightness of a head lamp. There are 5 levels—The bigger the number is, the brighter.
  • Page 15 7.4.5 Mode 1. Mode button: By touching the three buttons, you can switch a lamp mode to ‘CW’, ‘H- Pulse or B-Pulse mode. ‘CW’ mode is programmed as a basic setting. The lamp mode changes each time that the buttons are touched. 2.
  • Page 16 Level 5 - On Time : 5 Sec. - Off Time : 5 Sec. Level 7 - On Time : 7 Sec. - Off Time : 7 Sec. Level 9 - On Time : 9 Sec. - Off Time : 9 Sec. 4.
  • Page 17 7.4.6 Time 1. Time Display: The time you have set is displayed on the screen. After inputting the time setting, press the START button. The timer then starts to display the time left by the second. When the timer shows zero, the system stops working. Basically the maximum runtime you can set is 40 minutes and the time setting is minute–based.
  • Page 18 Main Menu FX(RED/IR) When the FX head is attached, the main display changes as above. 1. FX Select 6. TOTAL Energy 2. Head Area 7. START 3. Brightness 8. PAUSE 4. Mode 9. STOP 5. Time Select If you press the ‘R’ part of the FX Select button, 7.5.1 FX(RED/IR) Select only red light is emitted.
  • Page 19 1) This User’s Manual should be read and understood entirely before using SMARTLUX for the first time. 2) SMARTLUX must not be used in the presence of flammable liquids or gases due to the possible danger of explosion. 3) SMARTLUX produces diverging high intensity visible light. Do not look directly into the lamp when the lamp is operating.
  • Page 20  Manufacturer Licence Number : 3183  Product Licence Number :10-935  Product Type : Phototherapy Unit  Model Name : SMARTLUX Manufacturer EC Representative MEDMIX Co., Ltd. PharmaCosMedics, B-707 Smartvalley, 30, Songdomirae-ro, M.de Weertstraat 16 9000 GENT, Belgium Yeonsu-gu, Incheon 406-840 Rep. of Korea Tel.+32(0)93295348...
