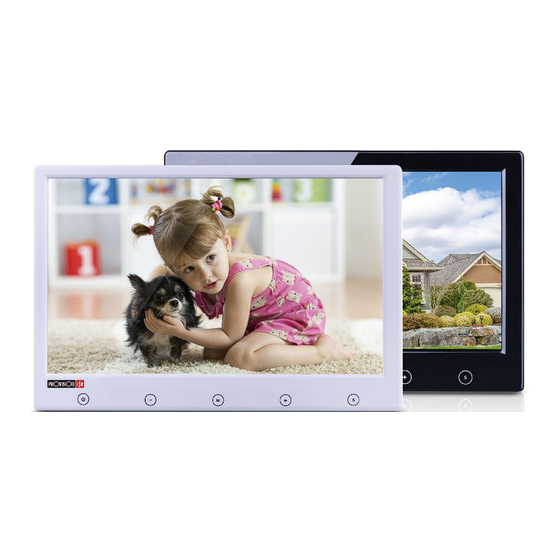

Provision ISR PR-IPS7 User Manual

Ips hd monitor
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-IPS7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Provision ISR PR-IPS7

  • Page 2: Table Of Contents

    IPS Monitors User manual Terms & Conditions ..........................2 Product parameters ..........................3 Packing List .............................3 Connection Interface ..........................4 Functions and Keys ..........................5 2.1) Key Description ............................ 5 2.2) Menu Description ..........................5...

  • Page 3: Terms & Conditions

    IPS Monitors User manual 1) Terms & Conditions  We strongly advise users to read this manual and keep it for later use for proper and safe device usage.  Please use the provided with the product. If a replacement is required, use only a power supply authorized by Provision-ISR as indicated on the product label.

  • Page 4: Product Parameters

    IPS Monitors User manual 2) Product parameters Product Model PR-IPS7 PR-IPS10 Solution AK909 V1.3 (RTD2660H) Screen Type LCD TFT, with LED backlight Screen size (Diagonal) 7 inch(16:9) 10.1 inch(16:9) Number of Pixels 1024(H)*600(V) Brightness 500cd/m2 Active Display Area 155.08(H)×85.00(V)mm 222.72(H)X125.2(V)mm 85°/85°/85°/85°(L/R/U/D)

  • Page 5: Connection Interface

    IPS Monitors User manual 4) Connection Interface 1: VGA signal input 2: BNC signal + DC power input 3: HDMI signal input...

  • Page 6: Functions And Keys

    IPS Monitors User manual 5) Functions and Keys 2.1) Key Description Power key Function minus key Menu key / Also used as a return key after entering a submenu Function plus key / Also used as confirmation key and function plus key after entering the menu Video channel switching key / Also used as selection key after entering the menu 2.2)
  • Page 7 IPS Monitors User manual OSD: Language: Selection of Language Horizontal position: Adjust the horizontal video position. Vertical position: Adjust the vertical video position. OSD Timeout: The menu automatically exits after no operation. The adjustment range is 5-60 seconds Transparency: menu transparency adjustment.

This manual is also suitable for:

Pr-ips10
