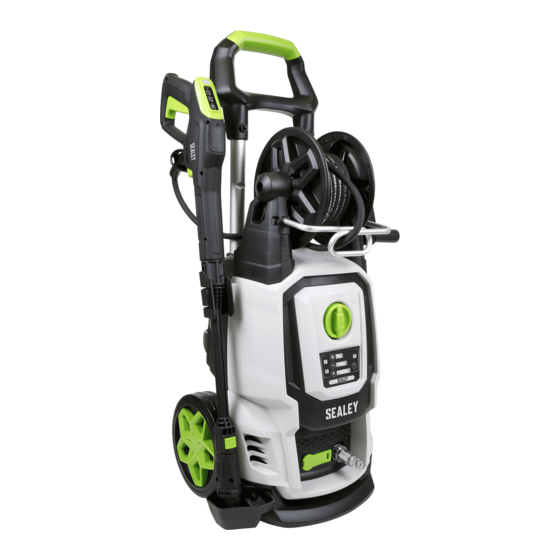

Pressure washer 170bar - lance controlled pressure with tss & rotablast nozzle

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE USE.
Refer to
Wear eye
instructions
protection
1.
SAFETY
1.1.
ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs
9
and all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with
all electrical products.
Electrical safety information. It is important that the following information is read and understood:
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
9
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the correct fuse.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately
8
by a qualified electrician.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9
The Electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1. It is recommended that the
9
electric supply to this machine should include either a residual current device that will interrupt the supply if the leakage current to earth
exceeds 30mA for 30ms or a device that will prove the earth circuit.
WARNING! Inadequate extensions cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the
connection has to be kept dry and off the ground. It is recommended that this is accomplished by means of a cord reel which keeps the
socket at least 60mm above the ground.
WARNING! Always switch off the mains disconnecting switch when leaving the machine unattended.
1.2.
GENERAL SAFETY
Machines shall not be used by children. Children should be supervised to ensure that they DO NOT play with the machine.
9
The appliance shall be disconnected from its power source during cleaning, service and when replacing parts and, if that the removal of
9
the plug is foreseen, it shall be clearly indicated that the removal of the plug has to be such that an operator can check from any of the
points to which he has access that the plug remains removed.
WARNING! Risk of explosion – DO NOT spray flammable liquids.
WARNING! High pressure cleaners shall not be used by children or untrained personnel.
WARNING! To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacture.
WARNING! DO NOT use the machine if a supply cord or important parts of the machine are damaged, e.g. Safety devices, high
pressure hoses, trigger gun.
WARNING! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through
an external switching device, such a timer, or connected to a circuit that is regularly switched on and off by the utility.
This machine can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
9
have been given supervision or instruction concerning use of the machine in a safe way and understand the hazards involved.
WARNING! This machine has been designed for use with cleaning agent supplied or recommended by the manufacturer. The use of
other cleaning agents or chemicals may adversely affect the safety of the machine.
WARNING! High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical
equipment, or the machine itself.
WARNING! DO NOT use this machine within range of persons unless they wear protective clothing.
WARNING! DO NOT direct the jet against yourself or others in order to clean clothes or footwear.
WARNING! High pressure hoses, fittings, and couplings are important for the safety of the machine. Use only hoses, fittings, and
couplings recommended by the manufacturer.
NEVER point the high-pressure nozzle at people or animals.
8
NEVER drink alcohol or use drugs while operating the pressure cleaner.
8
NEVER operate the pressure cleaner while standing in water.
8
NEVER touch the electrical plug with wet hands.
8
NEVER let electrical connections rest in water.
8
NEVER operate pressure cleaner without the water turned on.
8
NEVER use hot water with this pressure cleaner.
8
© Jack Sealey Limited
PRESSURE WASHER 170BAR - LANCE CONTROLLED
PRESSURE WITH TSS & ROTABLAST® NOZZLE
PW2400
MODEL NO:
Wear ear
Wear safety
protection
footwear
Original Language Version
DO NOT direct jet against
Wear protective
clothing
yourself, other persons, animals,
electrical equipment or the
machine itself.
PW2400
Issue 5
16/04/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW2400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sealey PW2400

  • Page 1 PW2400 MODEL NO: Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance. IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &...
  • Page 2: Control Panel

    F Holding pressure Light On = pump in a pressure-holding indicator state G. Over temperature Green = Motor temperature is normal. warning indicator Red = Motor too hot, automatic cut-out. PW2400 Issue 5 16/04/24 Original Language Version © Jack Sealey Limited...
  • Page 3: Specification

    4.2.1. Install hose reel handle (16) to hose reel with a “click”. NOTE: When attaching, align the projections on the hose reel handle with the grooves on the hose reel. FIG.3 FIG.4 PW2400 Issue 5 16/04/24 Original Language Version © Jack Sealey Limited...
  • Page 4: Operation

    5.4.1. Machine controls: long press Level 1 button and Level 3 button at the same time for 2 seconds to enter wireless pairing. In pairing mode, the indicator light flashes slowly, long press one button for 2 seconds to exit pairing. PW2400 Issue 5 16/04/24 Original Language Version © Jack Sealey Limited...
  • Page 5 5.8.2. When the trigger is released, it will return to the off position automatically. 5.8.3. When not using the pressure cleaner, press the lock button to keep from accidentally engaging the high pressure spray. PW2400 Issue 5 16/04/24 Original Language Version © Jack Sealey Limited...
  • Page 6: Maintenance

    6.5.2.5. Coil the high pressure hose on the hose reel (fig.22). 6.5.2.6. Place small accessories (e.g.: connector ) in the storage space on the back of the machine (fig.23). PW2400 Issue 5 16/04/24 Original Language Version © Jack Sealey Limited...
  • Page 7: Troubleshooting

    Water filter blocked Clean the filter. Nozzle blocked Clean the nozzle. In case problems other than the above occur, please contact an authorised service centre: PW2400 Issue 5 16/04/24 Original Language Version © Jack Sealey Limited...
  • Page 8: Environment Protection

    BATTERY REMOVAL Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme. Jack Sealey Ltd Batteries Producer Registration Number (BPRN) is BPRN00705.
