Instructions
Reduce heating costs
easily and conveniently
with smart thermostats
All information on operating the
thermostat and the app at a glance
Important
information –
please keep

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart radiator thermostat RE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KALO Smart radiator thermostat RE

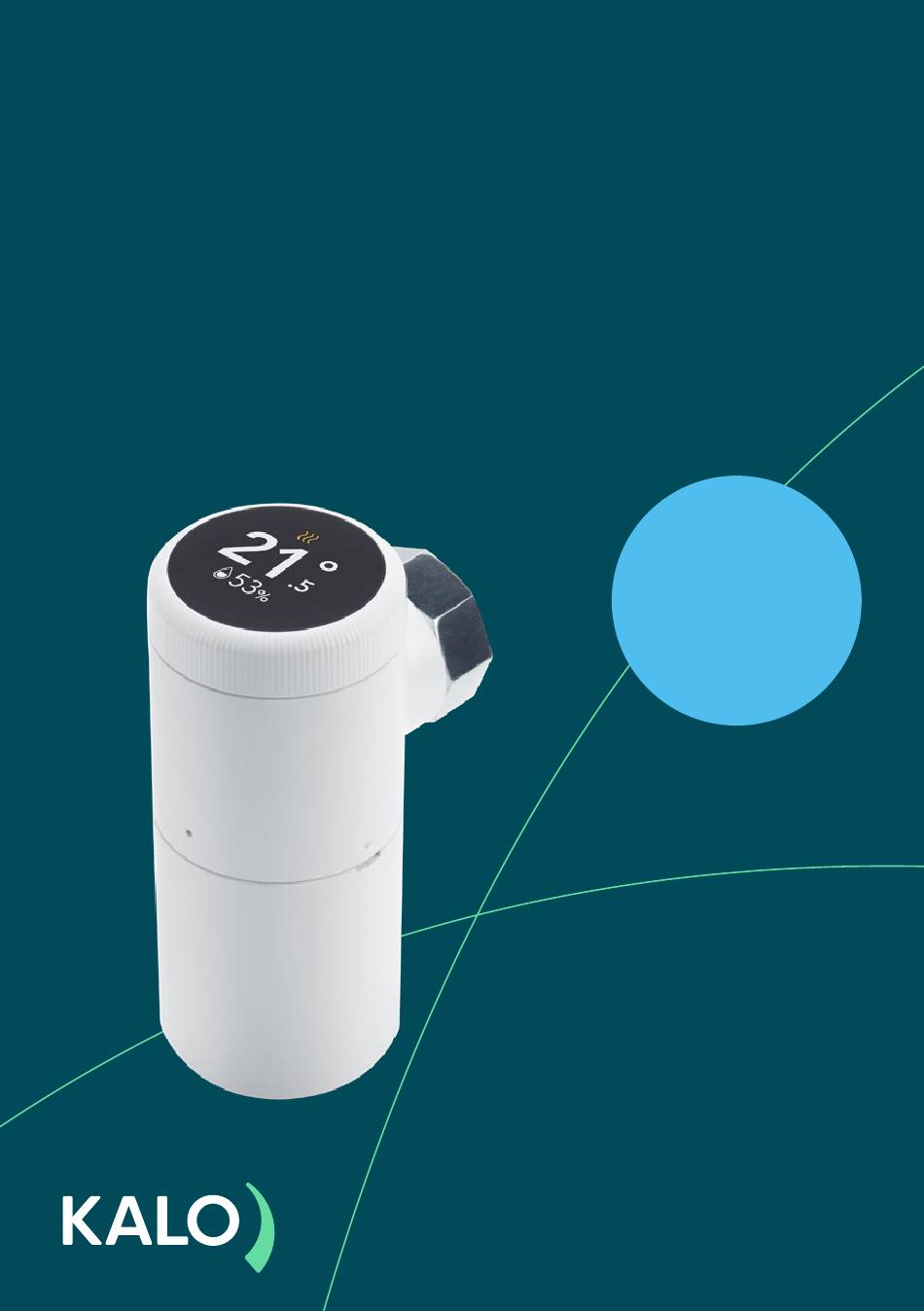

  • Page 1 Instructions Reduce heating costs easily and conveniently with smart thermostats All information on operating the thermostat and the app at a glance Important information – please keep...
  • Page 3 .‫می توانيد ترجمه کامل دستورالعمل ها را به زبان خود از طريق لينک زير بيابيد‬ .‫يمكنك العثور على ترجمة التعليمات الكاملة بلغتك عبر الرابط أدناه‬ Scan the QR code or visit the following webpage for information in other languages: kalo.de/srt-language...
  • Page 5: Table Of Contents

    Hot at the top, cold at the bottom? This is usually quite normal. Two radiators in one room – what needs to be considered? How does window open detection work? How do I register for the “KALO Smart” app? Good to know Useful tips and tricks for your heating system Correct heating and ventilation Heating and ventilating? OK, we all do it.
  • Page 7: General Information

    General information Smart thermostats - and now?
  • Page 8: Save Heating Costs Thanks To Smart Thermostats

    Because less energy consumption also means lower CO₂-emissions. All information on the operation and functionality of the devices, the associated “KALO Smart” app and important information on correct heating and ventilation can be found...
  • Page 9: The Smart Thermostats - Basic Functions At A Glance

    The smart thermostats – basic functions at a glance As before, you can control your radiator manually via the thermostat. Nothing will change in that regard. However, the new devices have smart functions that help you save heating energy: Precise degree Window open temperature setting detection...
  • Page 10: Download The App And Save Even More

    Further energy-saving functions with “KALO Smart” With the “KALO Smart” app, you can conveniently control the temperature setting of your radiators via smartphone and reduce your energy costs even more easily with personalised heating plans. Downloading and using the app is voluntary, but provides you with additional useful functions.
  • Page 11: The App Functions At A Glance

    New control commands are transmitted from the app to the thermostat every 10 minutes. All information on registering in the “KALO Smart” app can be found at from page 26 onwards.
  • Page 12: An Overview Of Smart Thermostats

    The battery cell has a service life of several years. It is replaced in good time before the end of the term as part of a service placed by KALO during a service appointment. You don't have to worry about anything.
  • Page 13 You can set up automatic test movement the schedules for each room of the motor to prevent separately via the “KALO Smart” limescale build-up on the app. valve. Manual mode Childproof lock...
  • Page 14: Hydraulic Balancing With Smart Thermostats

    Hydraulic balancing with smart thermostats Energy optimisation of apartment buildings In order to reduce the energy consumption of apartment blocks and achieve greater climate protection in the building sector, the legislator has made it mandatory to hydraulically harmonise the heating systems in larger residential buildings. This is possible with our smart thermostats.
  • Page 15: Legal Obligation - Smart Solution

    Legal obligation – smart solution Hydraulic balancing with our smart thermostats is done without much effort, “incidentally” so to speak. The thermostats ensure that all radiators are continuously supplied with the required amount of heating water. An over- or under-supply is therefore ruled out.
  • Page 17: Instructions

    Instructions Smart thermostats. Explained easily. All the important functions for operating your new smart thermostats explained in an understandable way.
  • Page 18: Temperature Setting Instead Of Scale Setting

    Temperature setting instead of scale setting Thanks to your smart thermostats, you no longer have a vague scale settings from 0 to 5, but can set the desired temperature directly without any conversion. 6 °C 28 °C 6 °C 28 °C How do I set the temperature on the device? The thermostat is “AUS”, the radiator valveis closed and...
  • Page 19 Turn the rotary knob clockwise to the right, to switch on the thermostat. The lowest setting is 6.0 °C. 6.0° The lowest level is indicated by the frost protection symbol (snowflake). You can set the temperature in increments of 0.5 °C using the rotary knob.
  • Page 20: How Does A Smart Thermostat Control The Temperature

    How does a smart thermostat control the temperature? The smart thermostat is switched on and set to 15.0 °C in this example. 15.0° The thermostat continuously 15 °C measures the temperature in the vicinity of the radiator. In this example, the ambient temperature is 15 °C.
  • Page 21 The desired temperature is increased to 22.0 °C by the occupant. 22.0° The radiator valve opens and more hot water flows into the radiator. How far the valve opens depends on the temperature currently measured and the temperature that has been set.
  • Page 22 How does a smart thermostat control the temperature? The smart thermostat 18 °C continues to measure the ambient temperature. 22.0° It heats at increased power 22 °C until the ambient temperature and the set temperature are identical. The valve on the radiator automatically closes a little and the heating output is reduced.
  • Page 23 … as required to maintain the desired ambient temperature.
  • Page 24: Hot At The Top, Cold At The Bottom? This Is Usually Quite Normal

    Hot at the top, cold at the bottom? This is usually quite normal. With most radiators, hot heating water flows in through a pipe at the top, spreads out and gives off heat to the room. During this process, the heat- ing water slowly cools down again and flows out of the bottom of the radiator back...
  • Page 25: Two Radiators In One Room - What Needs To Be Considered

    Two radiators in one room – what needs to be considered? If there are several radiators with smart thermostats in the same room, they are automatically linked together. This means that if the set temperature on one device is reduced from 24.0 to 19.0 °C, 19.0°...
  • Page 26: How Does Window Open Detection Work

    How does window open detection work? The smart thermostat 21 °C continuously measures the temperature around the radiator. 21.0° If a sudden drop in temperature 16 °C or a marked change in air pressure is detected because a window has been opened, the window opened detection is activated automatically.
  • Page 27 “AUS” setting. You can deactivate the open window function for each room individually in the “KALO Smart” app under “Settings” and also reactivate it. In the basic setting, the function is activated for each room.
  • Page 28: How Do I Register For The "Kalo Smart" App

    How do I register for the “KALO Smart” app? KALO Smart Registrieren Registrieren Please download the “KALO Smart” Please enter your data and confirm app from the “Apple App Store” (iOS) your details by clicking on the or “Google Play Store” (Android).
  • Page 29 You can then Then go to any smart thermostat in use the app immediately. your home. Please scan the QR code with the “KALO Smart” app and not with the camera app.
  • Page 31: Good To Know

    Good to know Useful tips and tricks for your heating system...
  • Page 32: Correct Heating And Ventilation

    Correct heating and ventilation Heating and ventilating? OK, we all do it. But is it right? In everyday life, people often forget how important it is to heat and ventilate properly. It ensures healthy indoor air, prevents mould growth and can even reduce energy consumption.
  • Page 33 Do not block radiators with furniture or curtains A radiator not only emits so-called radiant heat via its outer surfaces, but also generates a heat flow to heat up the room. In order for this heat flow to take place, the radiator must remain uncovered. Curtains and furniture in front of the radiator impair the function.
  • Page 34: Tips For Correct Ventilation

    Correct heating and ventilation Tips for correct ventilation Recommended ventilation duration The ventilation time depends on the outside temperature. In winter or at low temperatures, ventilate for 3 to 5 minutes, in summer or at higher temperatures for 20 to 30 minutes. Correct shock ventilation Regularly open windows fully and leave them open for a few minutes.
  • Page 35 Replace humid air immediately Cooking, showering and washing dishes, among other things, produce water vapour, which makes the air very humid very quickly. Ventilate properly immediately, i.e. with the windows fully open. Do not tilt windows A tilted window does not exchange the air sufficiently. If a window is constantly left ajar, walls can cool down and heat may be lost to the outside.
  • Page 36: The Answers To Frequently Asked Questions

    The temperature can be The devices regularly transmit the battery easily regulated by hand by turning the status to KALO so that we can inform rotary knob. In contrast to standard you of the battery replacement date in thermostats, the desired temperature good time.
  • Page 37 6 °C for 15 minutes to save energy. Please follow the steps below in the “KALO The open window detection is active by Smart” app to activate the function: default and can only be deactivated in the app settings.
  • Page 39: Technical Data

    Technical data The components of a smart thermostat...
  • Page 40: Technical Device Data

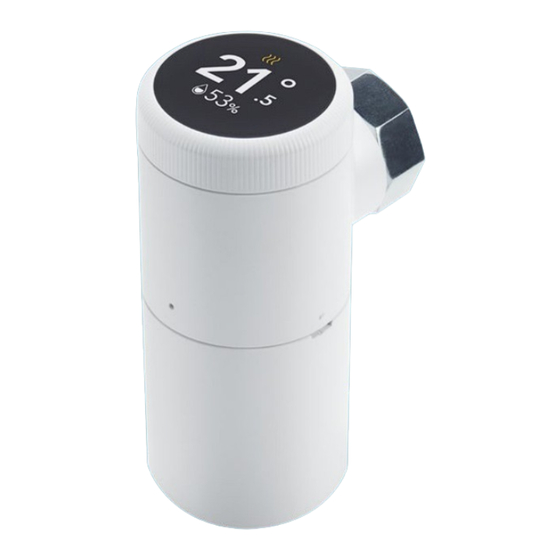

    Technical device data Smart radiator thermostat RE Technical data Manufacturer Model: VA04HL tado GmbH Length: 56 mm Sapporobogen 6–8 Diameter: 49 mm 80637 Munich Standard valve: M30x1.5 Germany Weight: 120 g (without battery) Input voltage: 6 V DC The WEEE symbol means that an device must be Batteries: Lithium manganese dioxide battery disposed of separately from household waste.
  • Page 41: Battery Pack And Battery Pack Xl

    Battery pack and battery pack XL Technical data Safety instructions Model: MB04 / MB04XL Warning: Risk of explosion and burns Do not use Length: 66 mm / 71.5 mm any other type of battery. Do not immerse the Diameter: 49 mm battery in water.
  • Page 43 Free service hotline +49 800 0009858 We are there for you around the clock:...
  • Page 44 Einfach. Innovativ. Persönlich. www.kalo.de KALORIMETA GmbH Heidenkampsweg 40 20097 Hamburg Ein Unternehmen der Printed on 100% recycled paper 1297-06-2024 EN...
