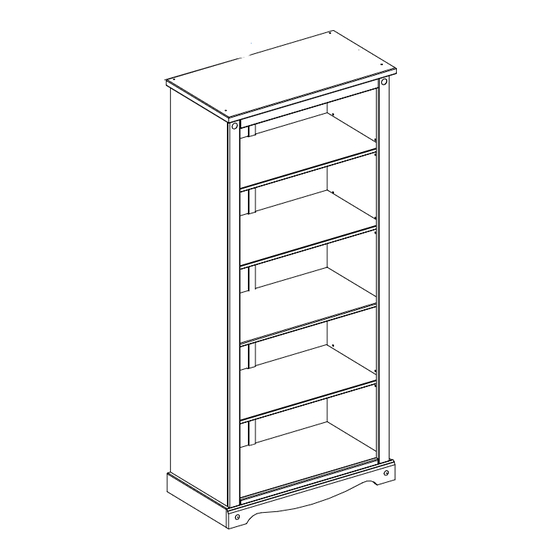

- Page 1 CR924 2021 SPECIFICATION...
- Page 2 Please check that you have all the correct parts and fittings as detailed on the assembly instructions. FOR DAMAGED/REPLACEMENT PARTS Please visit www.coreproducts.co.uk/parts 2021 SPECIFICATION Batch 2020-0182 Number PLEASE RETAIN THIS LEAFLET ALONG WITH YOUR DELIVERY NOTE/RECEIPT FOR FUTURE REFERENCE © Core Products 10/2020...
- Page 3 25mm Ø8 25mm Ø8 25mm Ø8...
- Page 4 28mm Ø4,5 GOLD 28mm 25mm Ø4,5 Ø3,5 SILVER GOLD...
- Page 5 28mm 40mm Ø4,5 Ø4,0 GOLD 180º 28mm Ø4,5 GOLD...
- Page 6 25mm Ø3,5 SILVER 90º IMPORTANT NOTICE In environments with children or uneven floors which could cause your furniture to fall forwards we recommend that this item of furniture is attached to your wall using appropriate fixings (supplied). BLACK...
- Page 7 WARNING: CHECK FOR HIDDEN PIPES AND CABLES BEFORE DRILLING. IMPORTANT: IF YOUR WALLS ARE NOT SOLID LIKE BRICK OR STONE, YOU WILL REQUIRE SPECIALIST FITTINGS (NOT SUPPLIED). - Place fixing strip against the wall and mark position for drilling hole. - Drill hole in your wall to a depth of 30mm using a 6mm drill bit.
