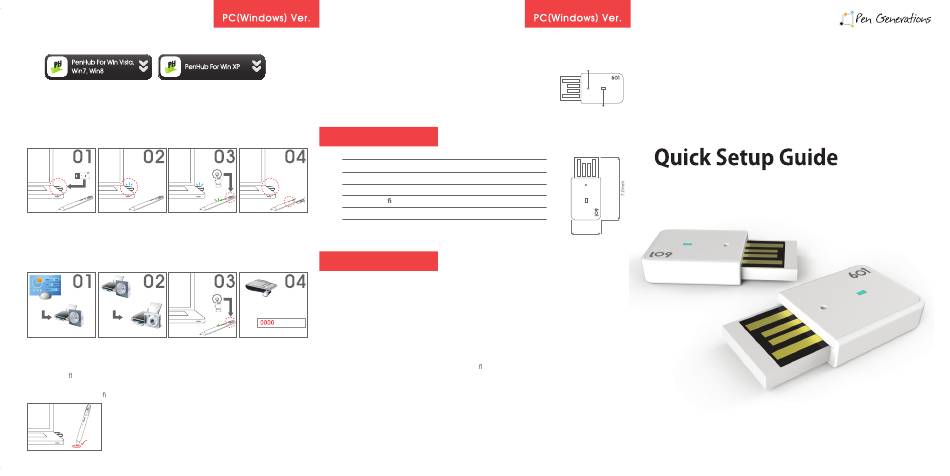

Pen Generations PGD-601 Quick Setup Manual

How to install the PC application
■ Download the PenHub Software on the website(www.pengenerations.com)
- It takes longer time in WinXP than other OS because the .NET framework is also installed.
How to Bluetooth pairing(Registering) in PC
■ In case of using the EZ dongle
Attach the EZ dongle Check the LED of EZ Turn on the
to the USB port. dongle whether it is ADP-601 pen.
blinking or not.
■In case of using the embedded Bluetooth of PC or using the common Bluetooth dongle
Hardware & Sound
Control Panel
Add Bluetooth device
Hardware & Sound
- Some PC doesn't support to connect Bluetooth pairing with pen directly. Please use the common
Bluetooth dongle or EZ dongle or the common Bluetooth dongle at this time.
- Please disable or delete the embedded Bluetooth hardware in the PC when common Bluetooth
dongle con ict with the PC's
■ Using the pen for the rst time
ADP-601 can be easily connected with PC by tapping the pen tip on
the note or anything after Bluetooth registering.
( The top GREEN LED keeps turning on when ADP-601 is connected
to PC successfully.)
Tap
■ Re-registration for using EZ dongle
- If user fail to do Bluetooth pairing repeatedly or try to use another ADP-601, please refer the
step in below;
A. Attach the EZ dongle to USB port of PC
B. Press the "RESET SWITCH" on the EZ dongle with a sharp things
such as pin. Then, the LED on EZ dongle start to blink quickly.
C. Turn on the ADP-601.
Specification
Model
Weight
Communication
Host Interface
Bluetooth Pro le
Dimension
Check the LED of
EZ dongle and ADP-601
whether they keep
turning on.
Notice
- Please keep this user's guide in an easily accessible place and read through the complete
document before the dongle is used.
- Dongle only supports ADP-601 digital pen and has no memory inside.
Select ADP-601RS
- Do not open or disassemble the dongle, take special care not to damage.
- Do not drop the dongle or allow any other kind of strong impact.
Input the PIN code as "0000"
- Consult your point of purchase if the dongle needs repair.
- Dongle may cause a choking hazard.
- Do not expose the dongle to water or any other uids. It is not waterproof or water resistant.
Do not leave it in damp conditions.
- Do not expose the dongle to extreme temperatures or direct sunlight.
- The dongle is intended for indoor usage.
- Clean with a dry cloth. Do not use water, soap, detergent or other chemicals which may deform
the dongle.
RESET BUTTON
LED
PGD - 601
2.4g
Bluetooth 2.0
USB 2.0(Type A)
HID (ADP-601 Proprietary)
7.0mm x 2.0mm x 1.2mm(L x W x D)
2.0mm
For PGD-601
Homepage : www.pengenerations.com / E-mail : help@pengenerations.com / CS Center : +82 . 31. 600 . 0840
