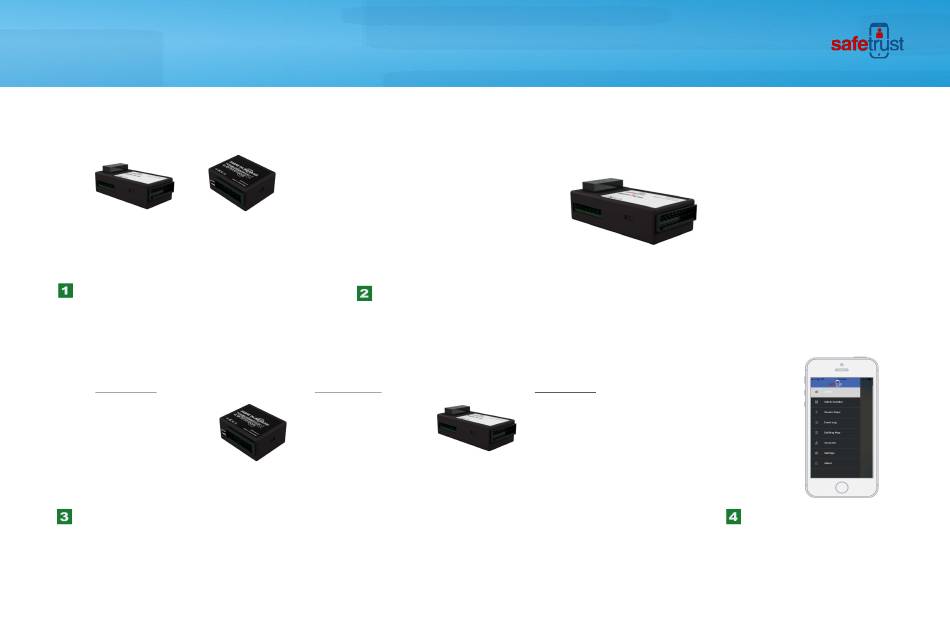

SafeTrust SA300 SABRE INLINE Quick Start Manual

Quick Start Guide
SA300 SABRE INLINE
SA350 SABRE RELAY
The Bluetooth board is available as a SABRE INLINE or SABRE
RELAY reader. If you order the SABRE INLINE it will come without
the relay section of the board.
Panel Connector
Black - Ground
White - Wiegand Data 1
Green - Wiegand Data 0
Violet - 5 volt out (Max 500mA)
Brown - Trigger Input 2
Orange - Trigger Input 1
Yellow - Trigger Output 5 volts
Grey - RS-485 A
Blue - RS-485 B
Red - Power (7-25v DC)
Panel Connector - Supports pass through Wiegand or translates Wiegand to RS-485 (OSDP).
Includes supplemental I/O for special applications.
Reader Connector - Wires into a legacy reader providing pass through Wiegand, LEDs and
buzzer. Supplemental trigger output.
Relay Connector (Relay version) - Offersa Form C relay and solid state relay I/O. Perfect
parking gates and other custom aplications.
Both the SABRE INLINE & RELAY are Bluetooth readers designed to wire into an existing legacy reader from the controller. Also suitable for parking gates, turnstiles and other
custom applications.
The Safetrust BLE reader includes Wi-Fi communication which permits two way communication with the credentail manager and suitable for remote configuration or updates
through the Safetrust library.
Reader Connector
Red - Power (7-25v DC)
Orange - Green LED Out
Brown - Red LED Out
Green - Wiegand Data 0
White - Wiegand Data 1
Blue - Trigger Output 5 volts
Yellow - Trigger Output - Buzzer
Black - Ground
Relay Connector
Gray - Relay trigger output 5 volt
Yellow - Relay trigger input 3
Blue - Relay trigger input 4
Orange - Relay solid state PIN 1
Green - High voltage relay NC
Brown - High voltage relay Common
Violet - High voltage relay NO
Black - Ground
White - Solid state relay PIN 2
Red - Power (7 - 25 v DC)
Open the Safetrust Wallet APP and select Admin
Installer tab. Make sure your system admin has set
you up with this role).
