Pixellot S3 Installation
FIRST REVISION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pixellot S3 and is the answer not in the manual?

Questions and answers

Summary of Contents for NFHS Network Pixellot S3

  • Page 1 Pixellot S3 Installation FIRST REVISION...

  • Page 2: Change Log

    Change Log • June 10, 2024 - first revision
...

  • Page 3: Overview

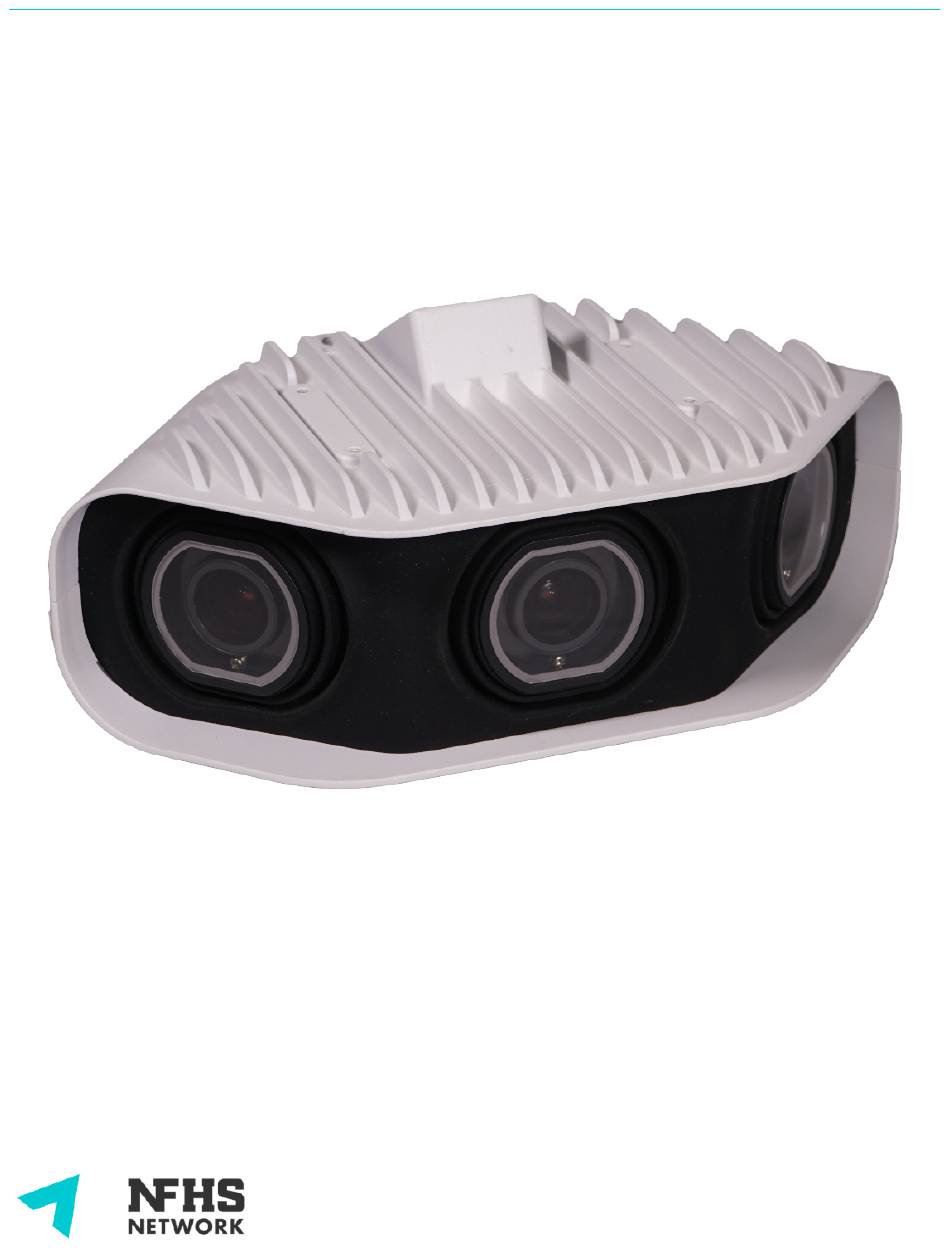

    Overview The Pixellot S3 is the newest generation of the Pixellot Show product line featuring a brand new triple camera array, a single cable camera-to-system connection, and integrated motors for field of view adjustment, all in a lighter, more compact design.

  • Page 4: Table Of Contents

    Table of Contents Change Log Overview Table of Contents Required Tools and Parts for Installation Hardware Review Receiving the Shipment Pre-Testing the System Installing the VPU Installing the Arm Installing Ethernet Cables Installing the CHU Connecting the CHU to the VPU Finalizing Installation Reaching Out for Assistance...

  • Page 5: Required Tools And Parts For Installation

    Required Tools and Parts for Installation The following tools are required for an S3 installation: • 1/4” flat head screwdriver • Hex wrenches of the following sizes: • Size 4mm (5/32”) • Size 5mm (3/16”) • Socket or wrenches of the following sizes: •...

  • Page 6: Hardware Review

    Hardware Review PIXELLOT S3 The Pixellot S3 camera head unit (referred in this document as the CHU) is re-designed from previous generations to provide ease of installation from multiple fronts: • The total ethernet connections from CHU to VPU are reduced to one, minimizing the number of cables run and connectivity complexity.
  • Page 7
...
  • Page 8 VIDEO PROCESSING UNIT The Video Processing Unit (referred in this document as the VPU) is a HP desktop workstation with its operating system and services pre-installed. The S3 is required to be connected to a VPU that runs the Linux operating system, often referred to as an Appliance VPU.
  • Page 9 DIAGRAMS
...

  • Page 10: Receiving The Shipment

    Receiving the Shipment The Pixellot S3 ships from the NFHS Network in multiple packages, primarily the Pixellot S3 camera box and the HP desktop computer box. Some other accessories or necessary components may arrive in separate boxes that are not outlined in this document. Your assigned work order may have additional information about installing other parts, such as other accessories for the system, which may not be defined in this manual.

  • Page 11: Pre-Testing The System

    Pre-Testing the System Scan this QR code or click here to view the video on Upgrading the S2 Pixellot Camera to an S3 Camera for more information on pre-testing the system. Before installing the system, it’s strongly recommended to test the hardware connectivity first. This test is simple ensuring the system is powering on properly, and the CHU is operating normally.

  • Page 12: Installing The Vpu

    Installing the VPU After the system has been tested, we recommend installing the VPU first. This is so the system can download any software updates while the remainder of the system is being installed. 1. Assemble and install the cabinet according to the directions provided with the cabinet. •...

  • Page 13: Installing The Arm

    Installing the Arm After the cables are installed, proceed with installing the camera arm. CHOOSING WHERE TO INSTALL THE ARM The end goal is to ensure that the CHU is installed within the height and standoff minimums, as centered to the playing field as possible, is not visually impaired by physical objects, and mounted to a secure surface with the appropriate hardware.
  • Page 14 HEIGH STANDOF The following table lists the minimum heights and standoff for their respective venues: Field Type Minimum Standoff Minimum Height Basketball 7 feet 10 feet Outdoor field types (soccer, 10 feet 10 feet football, lacrosse, etc) Ice Hockey 7 feet 10 feet Handball or Futsal 7 feet...
  • Page 15 CHOOSING WHAT PARTS TO USE • For mounting to a wall, utilize the proper screws and anchors for the respective material to ensure the arm does not fall out of the wall. • For mounting to a pole, utilize the Pole Mount kit to attach the mounting plate to the pole. HOW TO INSTALL THE ARM •...

  • Page 16: Installing Ethernet Cables

    Installing Ethernet Cables Scan this QR code or click here to view the video on Upgrading the S2 Pixellot Camera to an S3 Camera for more information on cable standards. CABLE STANDARDS Connecting the CHU to the VPU Depending on the installation, the following cable standard must be followed: CHU to VPU Distance Minimum Cable Type Required Less than 100 feet...
  • Page 17 S3. Using new, provided cable All cables provided by the NFHS Network will abide by the above standards, depending on the installation scenario. We recommended to not cut and re-terminate the cable once run to maintain termination integrity.
  • Page 18 If the situation requires it, using conduit to run cable might become necessary. Contact your Installation Coordinator for assistance if this becomes the case. Regardless, the end goal is to create a professional installation that abides by local safety requirements, in addition to the venue’s requests.

  • Page 19: Installing The Chu

    Installing the CHU Scan this QR code or click here to view videos on Attaching the Mounting Bracket and Mounting the Camera. INSTALL ANGLE BRACKET TO THE CHU 1. On the ground, disassemble the angle bracket, and place all bolts to the side. 2.
  • Page 20 3. Place the outer shell of the angle bracket (with the Pixellot logo and degree tick marks) on top of the handle, aligning the screw holes together. Use the provided screws and washers to attach the handle and angle bracket to the CHU. Utilize the appropriately sized hex and socket to tighten the bolts down.
  • Page 21 4. Tighten the hex bolts on each side of the arm to secure the inner part of the angle bracket inside the arm. Secure the bracket enough that it’s secure, but not too tight if you need to make slight adjustments it later. MATING THE CHU AND THE ARM 1.
  • Page 22 Keep in mind during installation: the angle and level you have installed the CHU is not final until approved by our Field Service team. We recommend keeping bolts on the angle brackets secure, but loose enough that you can make adjustments as necessary. Once the CHU is mounted, proceed with the next section.
...

  • Page 23: Connecting The Chu To The Vpu

    Connecting the CHU to the VPU After the CHU installation is complete and the CHU is securely connected to the arm: 1. Connect the cable to the Main POE port on the back of the CHU. 2. Connect the same cable end into any one of the four ethernet ports on the Camera NIC on the back of the VPU.

  • Page 24: Finalizing Installation

    Finalizing Installation Once all above steps have been finished, the system is ready for pairing. USING THE PIXELLOT CONNECT APP Using the Pixellot Connect app, proceed with the New Installation flow. This will require you to scan the QR codes on both the VPU and the CHU; if you are unable to scan the QR codes due to low light or angles, you can enter them manually.

  • Page 25: Reaching Out For Assistance

    Reaching Out for Assistance If you are encountering any issues with: • a damaged or missing shipment, • issues with a physical installation issue (relating to where or how to install the VPU or CHU), • on-site personnel (athletic director, IT, superintendent or principal), •...
