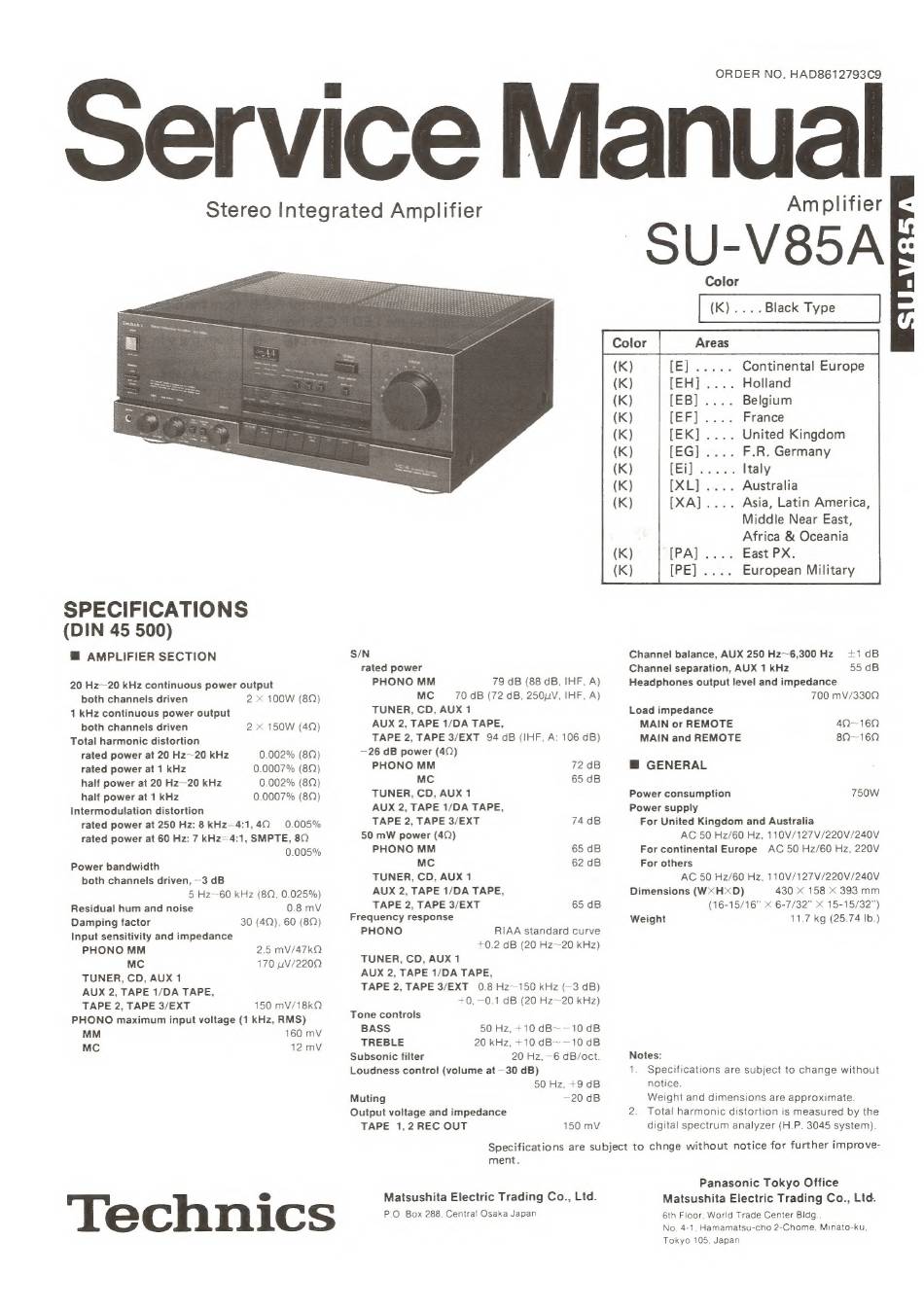

Technics SU-V85A Service Manual

ervice Manual
Stereo Integrated Amplifier
SPECIFICATIONS
(DIN 45 500)
@ AMPLIFIER SECTION
20 Hz~20 kHz continuous power output
both channels driven 2 * 100W (8)
1 kHz continuous power output
both channels driven 2 150W (4Q)
Total harmonic distortion
rated power at 20 Hz~20 kHz
rated power at 1 kHz
0.002% (82)
0.0007% (82)
(
(
half power at 20 Hz~20 kHz 0.002% (8)
half power at 1 kHz 0.0007% (8)
Intermodulation distortion
rated power at 250 Hz: 8 kHz—4:1,4Q 0.005%
rated power at 60 Hz: 7 kHz=4:1, SMPTE, 8Q
0.005%
Power bandwidth
both channels driven, —3 dB
5 Hz~60 kHz (89, 0.025%)
Residual hum and noise 0.8 mV
Damping factor 30 (4Q), 60 (8)
Input sensitivity and impedance
PHONO MM 2.5 mV/47kQ
MC 170 uV/2200
TUNER, CD, AUX 1
AUX 2, TAPE 1/DA TAPE,
TAPE 2, TAPE 3/EXT 150 mV/18kQ
PHONO maximum input voltage (1 kHz, RMS)
MM 160 mV
MC 12 mV
Technics
S/N
rated power
PHONO MM 79 dB (88 dB, IHF, A)
MC 70 dB (72 dB, 250uV, IHF, A)
TUNER, CD, AUX 1
AUX 2, TAPE 1/DA TAPE,
TAPE 2, TAPE 3/EXT 94 dB (IHF, A: 106 dB)
—26 dB power (4Q)
PHONO MM 72 dB
MC 65 dB
TUNER, CD, AUX 1
AUX 2, TAPE 1/DA TAPE,
TAPE 2, TAPE 3/EXT 74 dB
50 mW power (40)
PHONO MM 65 dB
MC 62 dB
TUNER, CD, AUX 1
AUX 2, TAPE 1/DA TAPE,
TAPE 2, TAPE 3/EXT 65 dB
Frequency response
PHONO RIAA standard curve
+0.2 dB (20 Hz~20 kHz)
TUNER, CD, AUX 1
AUX 2, TAPE 1/DA TAPE,
TAPE 2, TAPE 3/EXT 0.8 Hz~150 kHz (—3 dB)
+0, —0.1 dB (20 Hz~20 kHz)
Tone controls
BASS 50 Hz, +10 dB~ —10 dB
TREBLE 20 kHz, +10 dB~—10 dB
Subsonic filter 20 Hz, —6 dB/oct.
Loudness control (volume at —30 dB)
50 Hz, +9 dB
Muting —20 dB
Output voltage and impedance
TAPE 1,2 REC OUT 150 mV
ORDER NO. HAD8612793C9
Amplifier
SU-V85AE
Color
(K).... Black Type
Continental Europe
Holland
Belgium
France
United Kingdom
F.R. Germany
Italy
. Australia
. Asia, Latin America,
Middle Near East,
Africa & Oceania
East PX.
European Military
Channel balance, AUX 250 Hz~6,300 Hz +1dB
Channel separation, AUX 1 kHz 55 dB
Headphones output level and impedance
700 mV/330Q
Load impedance
MAIN or REMOTE 4Q~160
MAIN and REMOTE 8Q~160
@ GENERAL
Power consumption 750W
Power supply
For United Kingdom and Australia
AC 50 Hz/60 Hz, 110V/127V/220V/240V
For continental Europe AC 50 Hz/60 Hz, 220V
For others
AC 50 Hz/60 Hz, 110V/127V/220V/240V
Dimensions (WxHxD) 430 X 158 * 393 mm
(16-15/16" X 6-7/32" & 15-15/32")
Weight 11.7 kg (25.74 Ib.)
Notes:
1. Specifications are subject to change without
notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the
digital spectrum analyzer (H.P. 3045 system).
ment.
