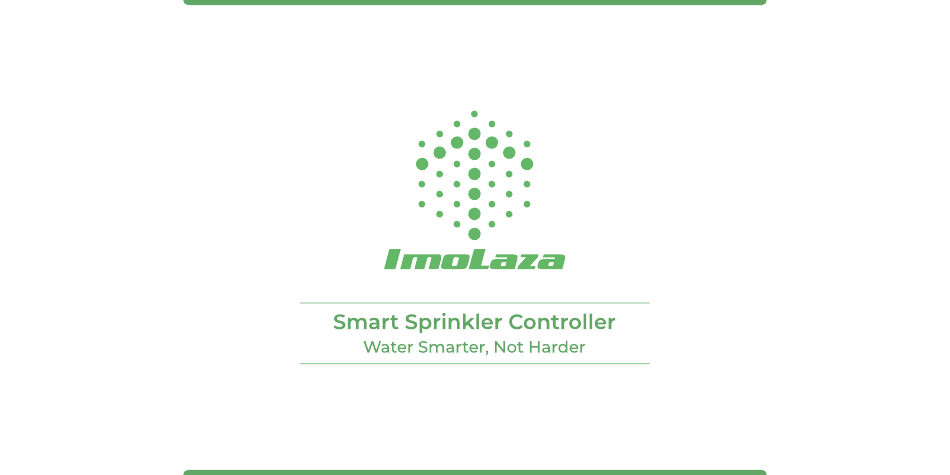

- Page 1 Smart Sprinkler ontroller Water Smarter, Not Harder...
- Page 2 What's In the Box RESET Protection Facep ate Smart Sprink er Contro er Power Adapter Mounting Temp ate Cab e Stickers 3 Wa Screws with Anchors ScrewDriver...
- Page 3 What You'll Need Wi-Fi Access Smartphone Drill and Drill Bit (2.4GHz) or Tablet (Drywall Installs) Notice: The ImoLaza Sprinkler Controller is designed for indoor installation only. You will need an ImoLaza Weatherproof Enclosure for outdoor installation.
- Page 4 Easy DIY Installati n STEP STEP STEP Remove your Install ImoLaza Open ImoLaza app old controller smart controller and follow along...
- Page 5 STEP 1 Remove the o d! Test sprinklers Photograph wiring Adhere cable stickers Remove the old Note: 1. Test your sprinklers to ensure the irrigation system works properly. 2. Photograph the current wiring as a reference for installing a new controller.
- Page 6 STEP 2 Install the ImoLaza cont olle Use the Mounting Template included to mark where you want to install your ImoLaza controller. There are 3 paris of Wall Screws with Anchors included. All you need to do is drill holes at marked locations and install the ImoLaza controller.
- Page 7 Connect Wi es Using the photo of your previous wiring as a reference, attach the common wire to either "Common" (COM) terminal, and connect the remaining wires to individual numbered terminals, ensuring that each terminal has only one wire attached. First, use a screwdriver to loosen the port screw until it reaches the bottom by turning it counterclockwise.
- Page 8 Open ImoLaza app and follow along STEP 3 23 Remove the outer panel and perform a reset !3 Download the ImoLaza app Ã3 The app provides step-by-step guidan e for adding and setting up the ontroller MAC:550CA8059760 INPUT:24V AC 60HZ/1.0A...
-
Page 9: Need Some Help
Need some help support@imolaza.com http://support.imolaza.com If you encounter any problems during use, please email support@imolaza.com with a description of your issue. The technical support team will work to resolve it promptly. - Page 10 Welcome to ImoLaza, t e Smart World! New Grass Schedule Fixed Schedule ET Smart Schedule Water Automatic Easy to Stay Remote Control Saving Watering Program Informed...
-
Page 12: Sensor Wiring
Sensor Wiring Appendix 2 ImoLaza works with all normally closed rain sensors, both wired and wireless. You can connect up to two sensors to your controller using the "S1," "S2," and "COM" terminals. If you have connected one, please go to "Settings"... - Page 13 PSR Wirin Appendix 3 ImoLaza controller is compatible with pump-dependent sprinkler systems, requiring a pump start relay for communication with the water pump. You need to connect the two leads from the pump start relay to the "COM" and "M" terminals, and then connect the relay to the pump. Please remember to select the appropriate option in "Settings"...
