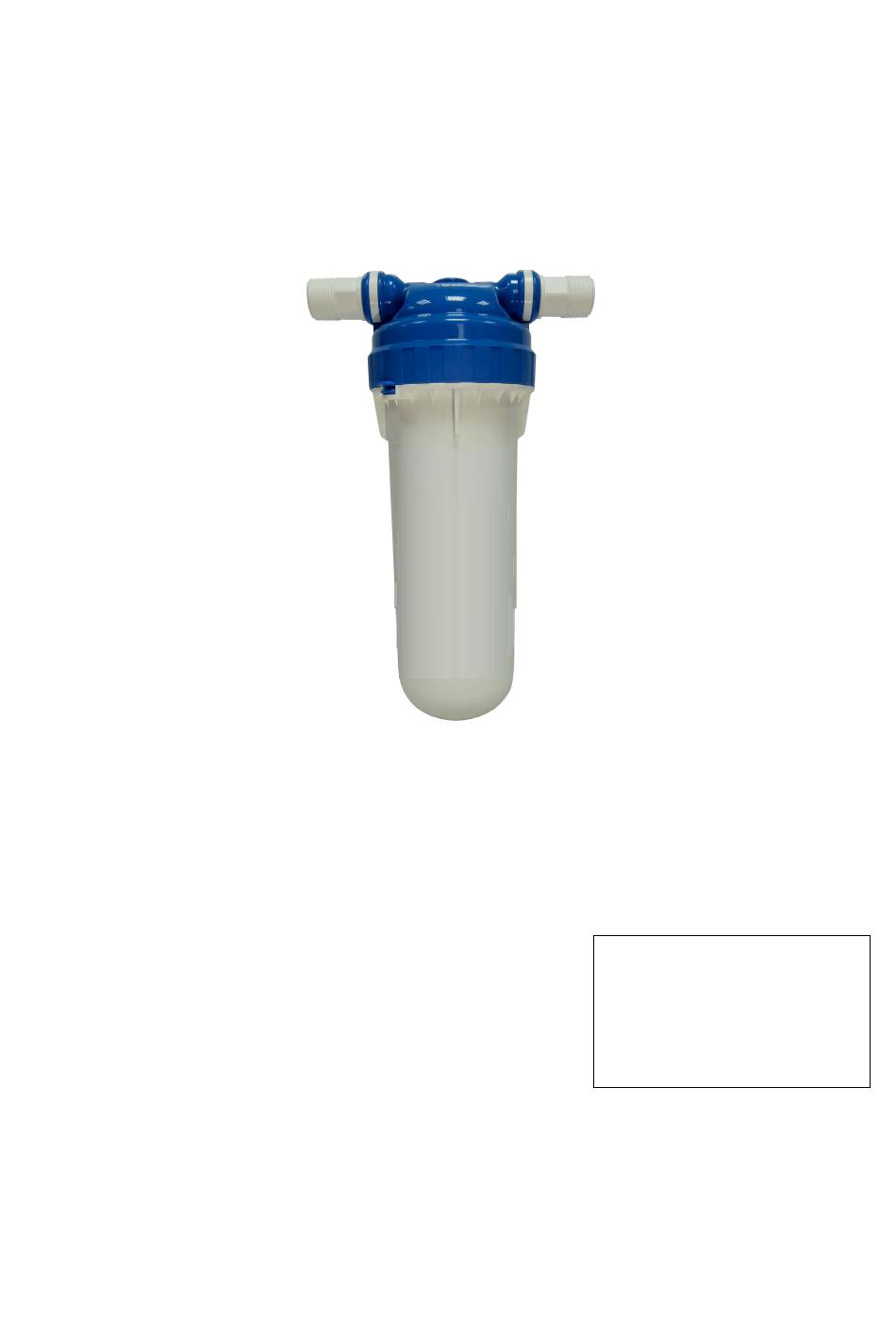

WFSM60
Installer Stamp
Date of Installation............................................
Order number ........... ......................................
Please read the operating manual before startup!
The manufacturer is not responsible for malfunctions caused by faulty operation and
failure to comply with the provisions of this documentation.
Store for later use! This operating manual is an integral part of the device.
1
Advertisement
Table of Contents
Related Manuals for Mijar Cube Series
Summary of Contents for Mijar Cube Series
- Page 1 WFSM60 Installer Stamp Date of Installation…………………………………….. Order number ……….. ……………………………….. Please read the operating manual before startup! The manufacturer is not responsible for malfunctions caused by faulty operation and failure to comply with the provisions of this documentation. Store for later use! This operating manual is an integral part of the device.
-
Page 2: Table Of Contents
Table of contents General instructions..........................3 Transportation and packaging ........................3 How it works ............................4 Technical description ..........................4 Safety Instructions, standards, provisions and statutory regulations............4 Information for installers..........................5 Liability exclusion............................5 Installation..............................5 Installation preparation plan .........................5 Filter installation ..........................6 Replacing the filter with a new one ......................6 Maintenance ............................7 Troubleshooting............................8 Product card..............................8... -
Page 3: General Instructions
General instructions The relevant installation and operation instructions contained in this manual must be read prior to the installation and operation of this device. The manufacturer will not bear responsibility in case of improper use and incorrect operation of the device. -
Page 4: How It Works
How it works The filter is designed for water treatment for ice cube devices. Four level treating process ensures unique features and delicious taste, keeping necessary minerals in water. The Four-level water purification process involves: 1. sediment removal 2. built-in scale inhibitor 3. -
Page 5: Information For Installers
Information for installers 1. The appliance in which the filter is used must be free of limescale and gypsum deposits prior to installation 2. Do not assemble near sources of heat and open flames 3. Protect the filter system from mechanical damage. 4. -
Page 6: Filter Installation
Filter Installation 1. Close the water intake and switch off power supply to the terminal equipment. 2. Fit the wall mountihg backet in the initiated position. During assembly, note the installation dimensions, bending radii of the hoses . CAUTION! Only hoses connections with Flat seals May be used because hoses with conical screw connections May damage the filter head connections, thereby invalidating any guarantee claims! 3. -
Page 7: Maintenance
ii. (2) Use a screwdriver to lever up the protecting pin iii. (3) Remove the protecting pin iv. (4) Pull out the quick coupling v. (5) Repeat this process with the second quick coupling vi. (6) Dismantled quick couplers check for damage and contamination, if necessary, replace or clean. -
Page 8: Troubleshooting
Troubleshooting Problem Cause Solution No water flow Water intake closed Open the water intake at the stop valve on the water supply No or low water flow in spite of Mains pressure too low Check the mains pressure. open water intake Locked, scaled water installation, Check the water system, the inlet mechanical blockage on hoses on...
