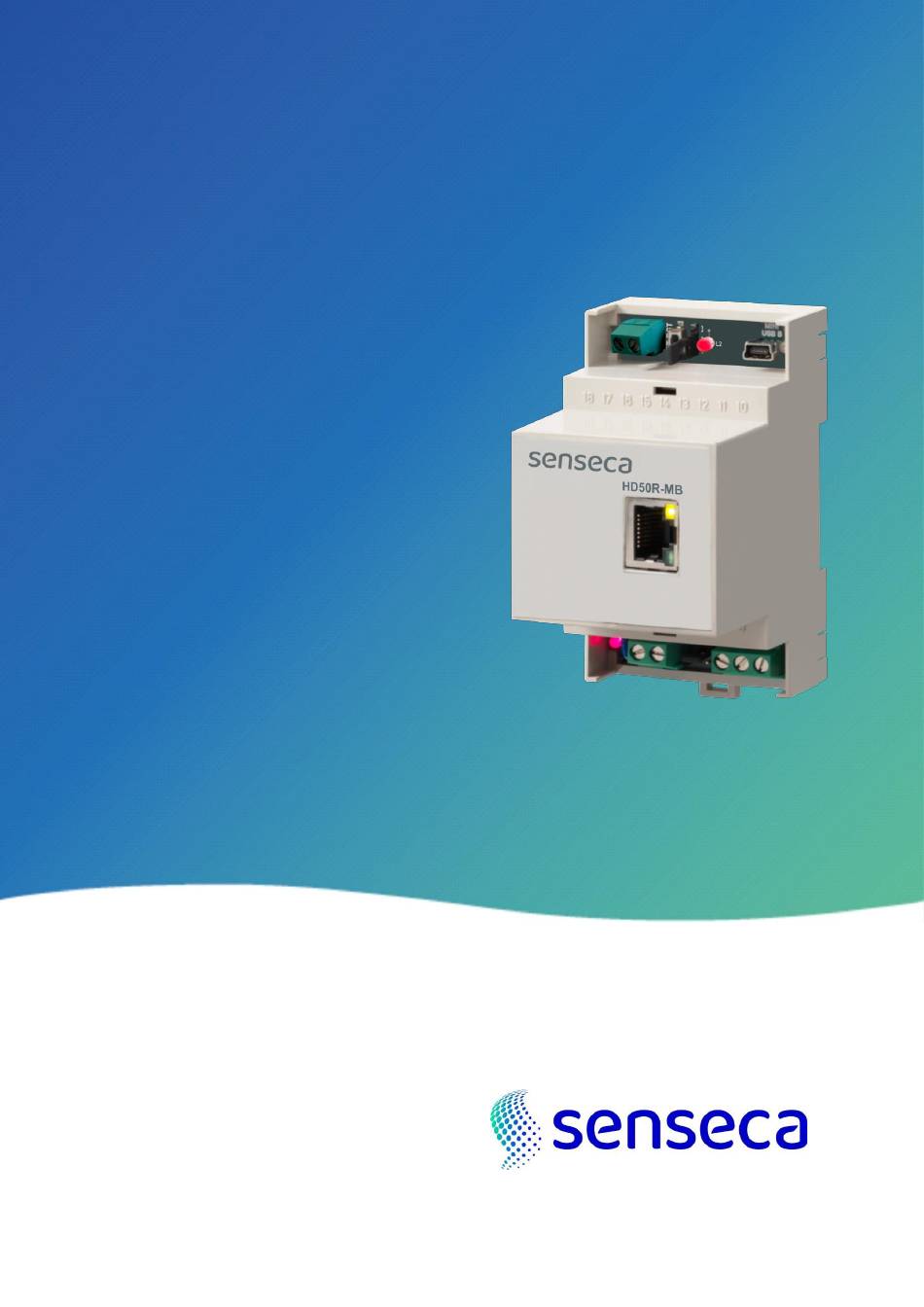

- Page 1 OPERATING MANUAL HD50R-MB Ethernet data logger V2.0...
-
Page 2: Table Of Contents
HD50R-MB – Ethernet data logger V2.0 Contents Introduction ......................3 Technical specifications ..................4 Description ......................5 Connections ......................6 Software ....................... 9 Modbus ....................... 10 Maintenance ....................... 15 Safety instructions ..................... 15 Accessories ordering codes ................16 Page 2 of 20... -
Page 3: Introduction
HD50R-MB – Ethernet data logger V2.0 Introduction The HD50R-MB data logger allows several physical quantities to be monitored in a large variety of application fields. To the “Master” RS485 MODBUS-RTU input you can connect a network of sensors for measuring, for example, temperature, humidity, atmospheric pressure, solar radiation, wind speed and direction, etc. -
Page 4: Technical Specifications
HD50R-MB – Ethernet data logger V2.0 Technical specifications Measuring interval 1, 2, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 30, 60 min Logging interval 1, 2, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 30, 60 min Circular management or stop logging if memory is full. -
Page 5: Description
HD50R-MB – Ethernet data logger V2.0 3 Description Push-button and short-jumper for restoring the factory LAN configuration. Input for contact rain gauge. Red POWER LED: indicates the presence of the external power supply. Power supply input. RS485 line termination. Input for RS485 Modbus-RTU sensors. -
Page 6: Connections
HD50R-MB – Ethernet data logger V2.0 4 Connections OWER SUPPLY RS485 M -RTU ODBUS CONNECTION Thanks to RS485 connection, several sensors can be connected in a multi-point net- work. The instruments are connected in sequence by means of a shielded cable with twisted pair wires for signals and a third wire for the ground. - Page 7 HD50R-MB – Ethernet data logger V2.0 AIN GAUGE CONNECTION Rain gauge contact CONNECTION The data logger can be connected to a PC via the mini-USB connector and the CP23 cable. USB connection doesn’t require the installation of drivers: when the data logger is connected to a PC, Windows®...
- Page 8 HD50R-MB – Ethernet data logger V2.0 simultaneous operation of two communication protocols (proprietary and Modbus TCP/IP) and manages up to 10 “TCP/IP Client” simultaneously. The default setting of the ports is the following: • Port number = 5100 for proprietary protocol (8 sockets) •...
-
Page 9: Software
HD50R-MB – Ethernet data logger V2.0 5 Software The parameters of the instrument (logging parameters, alarm thresholds, quantities to be acquired, network settings, etc.) can be configured by connecting the instru- ment to the PC via USB or Ethernet local network and using the HD35AP-S. -
Page 10: Modbus
HD50R-MB – Ethernet data logger V2.0 6 Modbus The device general information can be read through the function code 0x2B/0x0E: • Manufacturer (Delta OHM) • Model • Firmware version The list of MODBUS registers is shown below. Depending on the connected sensors, some of the registers could not be significant for the system. - Page 11 HD50R-MB – Ethernet data logger V2.0 Address Type Coil description Protection of configuration with password: 0=no, 1=yes Changing the parameter requires the Administrator password (see Holding Register 10036). Input Registers - Read-only parameters Address Type Input Register description Measured values and status of measurement alarms in the set measurement unit (x10).
- Page 12 HD50R-MB – Ethernet data logger V2.0 Address Type Input Register description (HD52.3D anemometer) in m/s (x100). IND SPEED Wind speed (HD52.3D anemometer) alarm: 0=OFF, 1=lower threshold alarm, 2=higher threshold alarm. (HD52.3D anemometer) in degrees (x10). IND DIRECTION Wind direction (HD52.3D anemometer) alarm: 0=OFF, 1=lower threshold alarm, 2=higher threshold alarm.
- Page 13 HD50R-MB – Ethernet data logger V2.0 Address Type Holding Register description lower alarm threshold in the set measurement unit ET BULB TEMPERATURE (x10). Wet bulb temperature higher alarm threshold in the set measurement unit (x10). Lower alarm threshold for in W/m...
- Page 14 HD50R-MB – Ethernet data logger V2.0 Address Type Holding Register description da 20000 User code with ASCII codification of measurement #1. a 20011 da 20012 User code with ASCII codification of measurement #2. a 20023 da 20024 User code with ASCII codification of measurement #3.
-
Page 15: Maintenance
HD50R-MB – Ethernet data logger V2.0 7 Maintenance Do not use aggressive cleaning agents or incompatible with the materials indicated in the technical specifications. For cleaning, use a soft dry cloth or slightly dampened with clean water. 8 Safety instructions... -
Page 16: Accessories Ordering Codes
HD50R-MB – Ethernet data logger V2.0 9 Accessories ordering codes The CP23 USB cable have to be ordered separately. The Ethernet cable is not in- cluded. HD35AP-CFR21 Software option that adds to the features of the basic software (both HD35AP-S and HDServer1), the management of the data logging system in accordance with the FDA 21 CFR part 11 recommenda- tions. - Page 17 HD50R-MB – Ethernet data logger V2.0 OTES Page 17 of 20...
- Page 18 HD50R-MB – Ethernet data logger V2.0 OTES Page 18 of 20...
- Page 19 WARRANTY The manufacturer is required to respond to the "factory warranty" only in those cases provided by Legislative Decree 6 September 2005 - n. 206. Each instrument is sold after rigorous inspections; if any manufacturing defect is found, it is necessary to contact the distributor where the instrument was purchased from.
- Page 20 Senseca Italy S.r.l. Via Marconi, 5 35030 Selvazzano Dentro (PD) ITALY info@senseca.com...
