Summary of Contents for Osmo FC-BP113
- Page 1 LITEMETER USER MANUAL...
- Page 2 INSTRUCTION MANUAL Upper Arm Electronic Blood Pressure Monitor Model No.: FC-BP113 Please read this instruction manual carefully before using your unit. Please keep this instruction manual well for future use. Thanks for choosing the Digital Blood Pressure Monitor. The PATIENT is the designated OPERATOR.
- Page 3 1. Before Using the Unit 1.1 Introduction Thank you for purchasing Upper Arm Electronic Blood Pressure Monitor. The unit uses the oscillometric method of blood pressure measurement. It means the unit detects the movement of your blood through your brachial artery, and converts your blood pressure into a digital reading.
- Page 4 1.2 Important safety notices To assure the correct use of the product basic safety measures should always be followed including the precaution listed as below: Please read all information in the instruction manual and any other literature included in the box before using the unit. Please contact your physician for specific information about your blood pressure.
- Page 5 1.3 Warning and safety notices Regarding the application of the CUFF and its pressurization on any limb where vascular access or therapy, or an arteriole-venous (A-V) shunt, is present because of temporary interference to blood ow and could result in injury to the PATIENT;...
- Page 6 If your arm cuff is broken or not functional, please use a new cuff. A new arm cuff does not include an air plug. Please continue to use the old air plug on the new arm cuff.
- Page 7 Power 4 AA Alkaline Batteries Do not use rechargeable batteries. Instruction Manual Please keep the instruction manual well after using. 2.2 Battery Installation / Removal 2.2.1Remove the battery cover from the battery compartment. 2.2.2 Install 4 “AA” size batteries to match the + (positive) and - (negative) polarities with the polarities of the battery compartment as indicated.
- Page 8 2.3 Settings 2.3.1 To set unit Based on the first step and long press the “SET” button for 3 seconds to change the previous measurement unit (kPa or mmHg), the mark appears and flashes, now the BPM is in mmHg status, and then press the “MEM” button, to change it into , now the BPM is in kPa status.
- Page 9 2.4.2 Remove all clothes from your upper arm allowing the cu to t directly on the skin. 2.4.3 Sit in a chair with your feet at on the oor. Place your arm on a table so as to level the cu to your heart. 2.4.4 Pass the end of the cuff through the metal, and keep the hose outward.
- Page 10 2.4.6 The hose runs down the inside of your arm. The bottom of the cu should be approximately 0.8-1.2 inches (2~3cm) above your elbow. 2.4.7. Wrap the cu tightly around your upper arm by using the Velcro strip. Make sure at least there should be 1-2 fingers space between arm and cuff. Any piece of clothing restricts the arm which must be taken o.
- Page 11 2.5 Considerations for measuring 2.5.1 The correct using method (1) Elbow on the table; comfortably seated; legs uncrossed; back and arm supported; (2) Keep the center of the cu and the heart or nipples at the same height. (3) Do not put the clothes into the cuff. (4) Palms up, and keep relaxed.
- Page 12 2.6 Function 2.7.1 Press the “START/ STOP” button. All display symbols appear on the screen. The cu starts to inflate automatically. 2.6.1. The device has the WHO warning strip “ ” symbol display function, with the blood pressure value change, the higher blood pressure value “ ” symbol will appear relatively in the higher position (refer to WHO definition of high blood pressure levels- reference table).
- Page 13 2.7.2 Measurement start. When pressurized to stop blood ow, the Blood Pressure Monitor stops pressure before automatically leaking air and automatically measuring blood pressure. The heartbeat symbol flashes once a pulse is detected. When the heart beat symbol appears and ashes, the Blood Pressure Monitor detects the pulse and begins to calculate the pulse automatically.
- Page 14 2.8.1 To enter the memory mode & to read the average value Press the “MEM” button while the unit is o, the unit enters the memory mode and the average value of the latest 3 times measurement values of the current user will be displayed.
- Page 15 2.9 About Blood Pressure 2.9.1 Irregular Heartbeat Symbol IHB When the unit detects an irregular rhythm two or more times during the measurement, the irregular heartbeat Symbol will appear on the display with the measurement values. An irregular heartbeat rhythm is defined as a rhythm that is more than 25% slower or 25% faster from the average rhythm which detected while the monitor is measuring the systolic blood pressure and the diastolic blood pressure.
- Page 16 2.9.4 Classification of Blood Pressure After each measurement is completed, the LED display will show your position automatically on the six segments of the bar indicator which corresponds to World Health Organization (WHO) Blood Pressure Indicator. Reference Material: Journal of Hypertension 1999, Vol 17 No.2 *Note! When a person’s systolic and diastolic pressures fall into different categories, the higher category should apply.
- Page 17 2.9.6 Treatment of High Blood Pressure If your blood pressure reaches upper values of 140~160 mmHg and lower values of 90~95 mmHg in repeated measurements over several days, you should consult doctor for detailed medical examination. You can assist the treatment prescribed by your doctor in the following ways: Lose weight and lower your cholesterol level;...
- Page 18 3.1.8 Do not repair or open the machine by yourself. If a defect occurs, Please contact the local distributor. 3.1.9 We will provide circuit diagrams, component part lists, descriptions, calibration instructions, or other information to assist service personnel who is trained by the manufacturer and has got the relevant qualification certificate.
- Page 19 3.5 Technical Data 3.5.1 Specifications To improve performance, these specifications are subject to change without notice. The device, accessories and the packaging should be disposed as waste correctly at the end of its service life, so that the risk of patient or user can be lowered to an acceptable level.
- Page 20 3.5.2 Statement • The unit is intended to be used to measure blood pressure (systolic and diastolic) and heart rate from the upper arm by using the oscillometric method. • The unit is intended for using in only adult population, not applied to the other populations such as newborn babies.
- Page 21 30 cm (12 inches) to any part of the Upper Arm Electronic Blood Pressure Monitor (M/N: FC-BP113), including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could cause.
- Page 22 Table 2 Table 3...
- Page 23 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 24 4. Warranty Information The unit is guaranteed to be free of defects in workmanship and materials under normal use for a period of two years from the date listed on the purchase record. For repair under this warranty, our authorized service agent must be advised of the fault with the period of warranty.
- Page 25 U.S.Agent ABMED SERVICE INC 1312 17th Street Suite 692 Denver, CO US 80202 Tel: 303 8000162 Manufacturer: Shenzhen Finicare Co., Ltd 201, No.50, the 3rd Industrial Park, Houting Community, Shajing Street, Bao'an District, Shenzhen 518104 China E-mail: info@nicare.com Website: https://www.nicare.com/ Made in China...
Need help?
Do you have a question about the FC-BP113 and is the answer not in the manual?
Questions and answers
How do I delete old data ?
To delete old data on the Osmo FC-BP113:
1. Press the “MEM” button. A symbol will appear indicating deletion mode.
2. Press the “START/STOP” button to confirm deletion if you are sure all data for the current user can be deleted.
3. The unit will turn off after deleting the memory records.
Use this function cautiously, as all data for the current user will be permanently deleted.
This answer is automatically generated
Que significa
Osmo FC-BP113 refers to a model of an Upper Arm Electronic Blood Pressure Monitor.
This answer is automatically generated
How do I set the parameters
To set the parameters for the Osmo FC-BP113 Blood Pressure Monitor:
1. Change Measurement Unit:
- Long press the "SET" button for 3 seconds.
- The current measurement unit (kPa or mmHg) will appear and flash.
- Use the "MEM" button to switch between kPa and mmHg.
- Press the "START/STOP" button to confirm the setting.
2. Set User:
- When the device is powered off, press the "USER" button.
- Press the "USER" button again to switch between User 1 and User 2.
- Press the "START/STOP" button at any time to stop the operation.
This answer is automatically generated
I'm having an issue with getting a reading. I get Err2, Err3, or Err6 after DIA How do I get it to read correctly

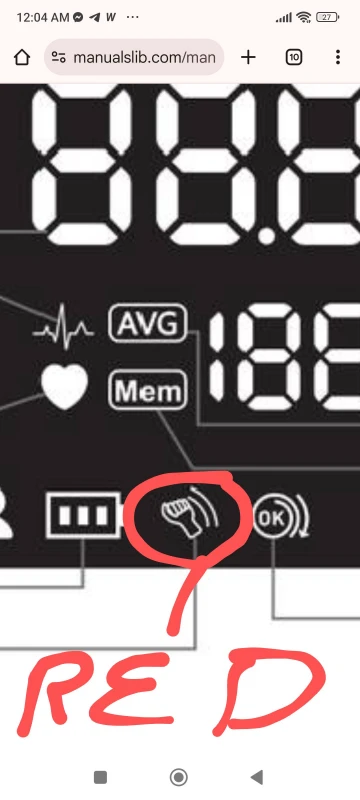

Que significa body motion detection icono en rojo

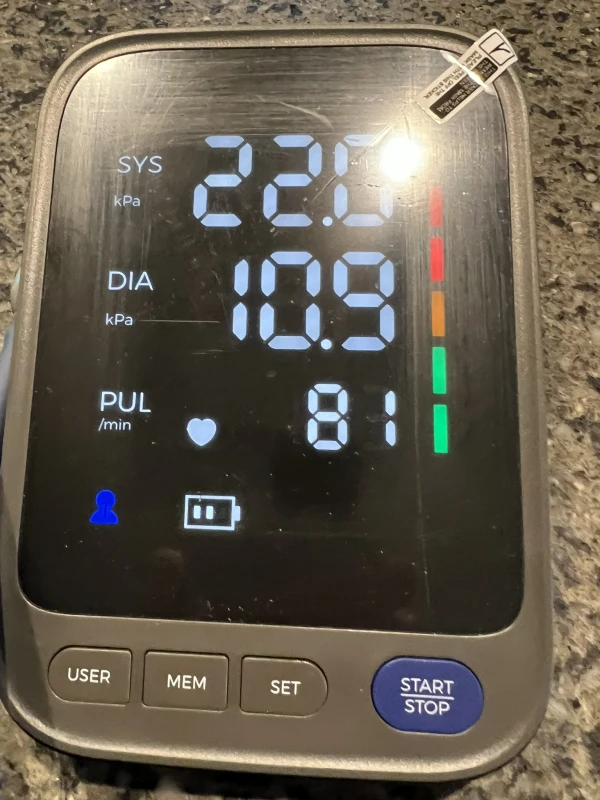

My unit displays as ****.X and not ****. How do I correct this?
WHAT ARE ALL OF THE ERROR CODES AND THEIR DESCRIPTION
