ICE BATHTUB

Installation & Instruction Manual

IMPORTANT NOTE:

Thank you very much for purchasing our product. Before using your unit, please read

this manual carefully and keep it for future reference.

Table of Contents

Need help?

Do you have a question about the WAC-004 and is the answer not in the manual?

Questions and answers

Summary of Contents for W'eau WAC-004

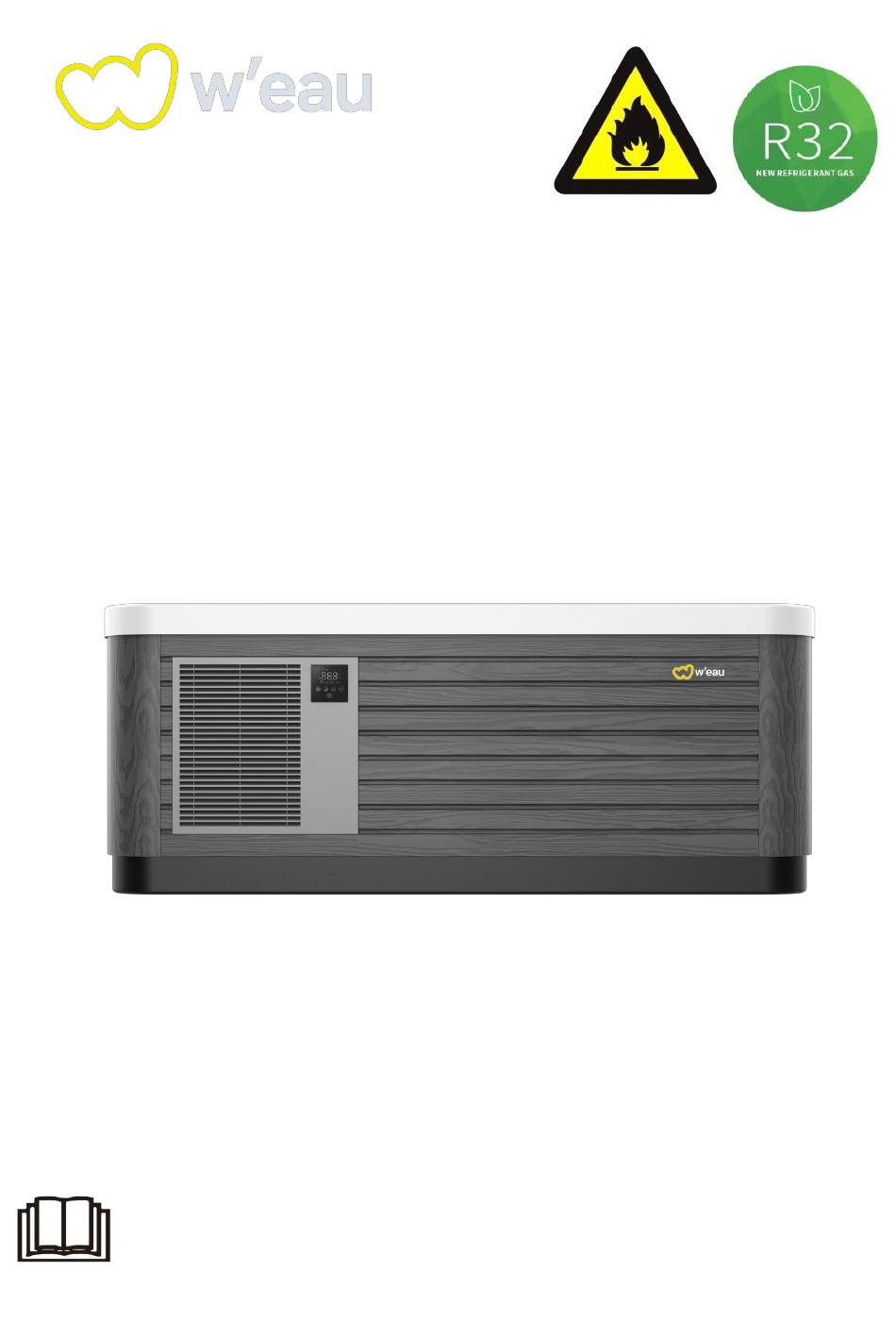

Page 1 ICE BATHTUB Installation & Instruction Manual IMPORTANT NOTE: Thank you very much for purchasing our product. Before using your unit, please read this manual carefully and keep it for future reference.
Page 3: Table Of Contents
CONTENTS ICE BATHTUB ....................1 ICE BATHTUB HARDWARE ORIENTATION ..........3 1. FOREWORD ....................1 2. UNIT INFORMATION .................. 4 3. INSTALLATION ...................7 4. ELECTRICAL CONNECTIONS ..............11 5. FILLING YOUR ice bathtub & STARTING UP .........13 6. REMOTE CONTROLLER OPERATION GUIDANCE ....... 15 7.
Page 4 ICE BATHTUB HARDWARE ORIENTATION Circulation Pump Located in the engine bay of your ice bathtub. This highly efficient, small power usage pump is used in the filtration and circulation of water through the heater. Ozone Ozone gas (O₃) can help destroy and break down bacteria as well as organic matter such as body oil and dirt.
Page 5: Ice Bathtub
1. FOREWORD 1.1. Read the Manual Before Operation Please read the following guidelines and carry out the operation according to all of the instructions to avoid safety accidents. We strongly recommend you to read the following guidelines and follow all instructions. DANGER: Prevent children from privately entering into the ice bathtub.
Page 6 temperature should be controlled under 38℃ (100°F). The human body is exhausted and the force is not left. Long time soaking in hot water can result in high body temperature, the symptoms of  which include non-predictability of danger, for example: water burns can be caused without sensing the heating, the human body is exhausted and unable to leave the massage pool as well as unconsciousness that can result in drowning.
Page 7: Ice Bathtub Hardware Orientation
installation complies with the local electrical safety regulations and the requirements on the water and electrical installation. The electrical circuit in according to the electrical safety regulations and ensure to  connect the power correctly - select a qualified electrical contractor！ Please ensure that the ice bathtub is installed in a place with good ventilation and ...
Page 8: Unit Information
2. UNIT INFORMATION 2.1. Parameter of the Unit Model: WAC-004 Type Heating/Cooling Suggest Water Volume (L) Chilling Time from 23 ℃ to 5 ℃ (h) ＜ 4.1 Heating Water Temp.
Page 9 Power Input (W) Current Value (A) 2.88 6.33 [Heating] Ambient: 15℃, Water Inlet: 26℃, Humidity: 70% Heating Capacity (W) 2530 Power Input (W) Current Value (A) 2.78 3.95 [Heating] Ambient: 27℃, Water Inlet: 38℃, Humidity: 80% Heating Capacity (W) 3380 Power Input (W) Current Value (A) 4.14...
Page 10 2.2. Dimensions of the built-in chiller Dimensions (mm) Model WAC-004 2.3. Main Parts of the built-in chiller Name Name Name Top Cover Fan Guard Net Left Side Panel Fin Heat Exchanger Front Panel Main Board Titanium Heat Filter Power Board...
Page 11: Installation
Flow Switch Compressor Capacitor Capacitance Right Panel Chassis Assembly Clamp Tube Joint Electrical Box Left Rear Pillar 4-way Valve Terminal Board Power Adapter Pressure Switch Electrical Box Cover Pressurizer Clamp PG13.5 Joint DC Fan Motor 3. INSTALLATION 3.1. Preparing A Foundation For Your Ice Bathtub You have perhaps selected a place for the new ice bathtub, either indoors or outdoors, in courtyard or on platform, the following points should be checked.
Page 12 3.1.2. Platform/ Indoor/ Basement Installation If you install the ice bathtub on a platform, please consult a qualified building  contractor or structural engineer to know the maximum load bearing capacity of the platform, in order to ensure that the platform can withstand the weight of the ice bathtub.
Page 13 Please note, the soft ground will have a tendency to sedimentation, so that the ice bathtub is no longer in the leveling state, even if the weight of the ice bathtub has been evenly distributed as much as possible by using the stepping stones. WARNING If the ice bathtub is installed on the grass or muddy ground, the number of floating debris in water will increase and damage the equipment the surface of the ice bathtub.
Page 14 In places open to the public, it is mandatory to install an emergency stop button close to the bath chiller. Power Supply Wires Model Electricity Supply Cable Diameter Specification WAC-004 220-240V~/ 50Hz 3G 1.5mm² AWG 16...
Page 15: Electrical Connections
3.1.6. Electrical Connection Note: Dis means disinfection function ports. They can be used for ozone sterilizer. The control logic refer to Disinfection Function in 6.1 4. ELECTRICAL CONNECTIONS A qualified Registered Electrical contractor must under take all electrical connections .You must also have a certificate of Electrical safety issued by the Electrical contractor at completion of the installation.
Page 16 7) Ensure ice bathtub is permanently and reliably connected to the fixed wiring. 8) ice bathtub should be supplied through a Residual Current Device (RCD) with a rated tripping current not exceeding 30mA. 9) Parts containing live parts, except parts supplied with safety extra-low voltage not exceeding 12V, must be inaccessible to a person in the ice bathtub.
Page 17: Filling Your Ice Bathtub & Starting Up
5. FILLING YOUR ice bathtub & STARTING UP 5.1. Filling Your ice bathtub Before filling your ice bathtub, please open the filtration box, unpack and install  the cartridge filter first. Before filling your ice bathtub ,please tighten the barrels union.The barrels union ...
Page 18 5.2. Starting Up If ice bathtub is a plug-in model, plug the power cord into the power point and  switch the power on. If the ice bathtub is hard wired, turn power on at the main isolator. When the unit is powered up, it is normal operation that the ice bathtub pumps may turn on and run for up to 4 minutes depending on the type of controller.
Page 19: Remote Controller Operation Guidance
6. REMOTE CONTROLLER OPERATION GUIDANCE Item Icon Item Icon Function or mode key Wi-Fi Timer key Defrosting " " Alarm "-" key Lock ON/OFF key Timer on/off Heating mode Real-time clock Automatic mode Disinfection Cooling mode Fan motor...
Page 20 6.1. Key Operating Instruction Item Operation Way Under the main interface, press to turn on/off. OFF will be ON/OFF showed in the display if you turn off the unit If the unit has no input operation for 60 seconds, the ...
Page 21 disinfection function will be started 20 minutes for every 20 minutes. In the main interface, press for 5 seconds to  enter the real-time clock setting interface, the hours and minutes of the clock will flash together. In the real-time clock setting interface, press the ...
Page 22 When the timing shutdown time is set, press the  to confirm the setting timing switch time of the current group,then press the , you can enter the next set of timing switch time setting, the setting method is consistent with the timing group 1. If the time group is valid, the serial number of the time ...
Page 23 Long press for 3s to enter, and then press to turn up and down the page query. Code Parameter Remark Exhaust temperature Return gas temperature Outlet temperature Refrigeration coil temperature Outdoor coil temperature Outdoor ambient temperature Main route electronic expansion valve opening degree 1:heating Outdoor operation mode...
Page 24 0:The water pump is not closed during constant temperature shutdown. 1: When shutting down at constant temperature, the water Water pump working mode pump delays the compressor to turn off for 60 seconds. Every (L8) minutes open 5 minutes The running interval of the water pump when shutting 3～180min down at constant...
Page 25 6.4. Trouble Shooting Fault Analysis Solution 1. Loose wiring or poor connection of high pressure switch 2. There is something wrong with high pressure switch 1. Reconnect the wire. 3. Main board is broken 2. Replace the high pressure switch. 4.
Page 26 open. 1.2.3 Change the pump according to 1.2.2 Waterway blockage, may appear in the water flow and water head. 1.2.4 Replace the water pump. the heat exchanger or valve part. 1.2.3 Improper water pump selection 2. Vacuumize and refill the refrigerant 1.2.4 The water pump is broken .
Page 27 1. Please wait 1. Compressor protection time patiently for the end of interval is not up protection time Unit is not running 2. Water temp. of the unit does 2. Normal after starting up not reach starting up water phenomenon and wait temp.
Page 28 6.6. Wi-Fi Settings 6.6.1. Software Installation Method 1: Search ”Smart life” in your APP store ,install “ ”.Click “GET” to install. Method 2: Scan the QR code below. For IOS and Android Users 6.6.2. Software Startup After installation,click “ ” on your desktop to start up Smart Life.
Page 29 6.6.3. Software Registration and Configuration 1. Registration Users don’t have account can click “Register” to create an account: Register Enter your phone number Get Verification Code Enter Verification Code Set Code; After registration, you need to Create a Home:Create a Home Set Home Name Set Home Location...
Page 30 2. Account ID+ Password Login Existing accounts can be logged in directly, in the following order. If you forget your password you can choose to login with your verification code and select "Forget Password": Enter your phone number Get verification code .
Page 31 After creating a home or logged in,enter the main interface of APP. Note: Click the device to check the status, and you can set the operating mode, ON/OFF, timer. Click “＋” to add devices. 1. Wi-Fi Module configuration steps:...
Page 32 Method 1 Step 1: EZ Mode: When power is on, press and hold the " " and " " keys at the same time for 3 seconds to enter the distribution network. The " " icon will flash rapidly;. Step 2: Turn on the phone's Wi-Fi function and connect to the Wi-Fi hot-spot.
Page 33 Step 4: After selecting "Smart Heat Pump", enter the interface of "Add Equipment", and confirm that the wire controller has selected the EZ mode. After the indicator light under " " flashes rapidly , click" Confirm indicator rapidly blink ". Enter the Wi-Fi connection interface, enter the Wi-Fi password of the mobile phone (it must be the same as the Wi-Fi of the mobile phone), click "Next", and then directly enter the connected status of the...
Page 34 Step 5: When “Scan devices”, “Register on Cloud”, “Initialize the device” are all completed, connect succeeds. Method 2...
Page 35 Step 1 AP Mode: Press and hold the " " and " " and " "keys at the same time for 3 seconds to enter the distribution network. The " " icon will flash slowly. Step 2&3 Same with EZ Mode above. Step 4 After entering the add device interface, click "EZ Mode"...
Page 36 Enter the mobile phone Wi-Fi connection interface, find the “Smart Life_XXXX” connection, and the APP will automatically enter the device connection status. Step 5 : Same as EZ mode above. Note: If the connection is failed, please enter the AP mode manually and reconnect according to the above steps.
Page 37 6.6.4. Software Function Operation  After the device is bound successfully, enter the operation interface of “Smart heat pump” (Device name, modifiable)  In the main interface of “Smart Life”, click “Smart heat pump” to enter the operation interface. Back More: You can change device name, select device installation location, check networking status, add Shared users, create device cluster, view device information, and more.
Page 38 Click in the following order to enter device details, and click "Device Name" to rename the device.  Device sharing  To share a bound device, the user should do so in the following order.  After successful sharing, the list will be added to show the person shared ...
Page 39  Enter the account of the shared, click "Done", and the share success list shows the newly added account of the Shared.  The interface of the person to be shared is as follows. The received shared device is displayed. Click it to operate and control the device.
Page 40  Mode settings Click “ ” on the main interface to switch modes,select what you need.  Timer setting...
Page 41 1.Click “ ” on the main interface to enter timer setting interface, as shown below, click to add timer. 1.After entering timer setting, swipe up/down to set timer,set up repeat weeks and on/off,then click “save” to save your settings as follows. Hours Minutes Set the repetition...
Page 42: Ice Bathtub Maintenance
Set power ON/OFF Save your modification 6.6.5. Device Removal Click “ ” on the top right corner of the main interface to enter the device details interface, and click “device removal” to enter EZ mode. Indicator light under“ ” flashes rapidly for 3min, The network can be reconfigured within 3 minutes, and the network can be quit if it is not connected within 3 minutes.
Page 43 the surface of the water sometimes leaving a scum line around the perimeter of your Ice bathtub shell. Use a recommended cleaner or simply wipe down with a soft cloth and a non-abrasive cleaner. (eg methylated spirits). Clean while Ice bathtub is drained for servicing or water change-over.
Page 44 7.3. Cleaning Your Filters You should clean your filters regularly. Once a week you should remove your filters and hose any debris out of them with a high pressure hose. Once a month you should soak your filters in a cartridge filter cleaning solution and then hose off with a high pressure hose.
Page 45 Replace filters basket and face plate. Important: When you remove your filters, ALWAYS ensure that the power to your ice bathtub is off before doing so! If you leave your power on and anything is drawn into your pump or heater.causing either to fail, fault will not be covered under warranty. 7.4.
Page 46 the headrest from falling into the Ice bathtub. Headrests can be wiped with methylated spirits, then coated with a high grade vinyl rejuvenator to rejuvenate the faded, powdered look. 7.6. ice bathtub Cabinet When cleaning the Ice bathtub cabinet, you can only use a soft cloth or sponge dipped in neutral soapy water.
Page 47 times a week. Therefore, it would be recommended that a ice bathtub be drained at least every 8-12 weeks. Note: Be sure the power to your ice bathtub is turned off before draining. Damage to equipment due to dry running is not covered under warranty. 7.10.
Page 48 dealer). This insulation device can also help maximize energy efficiency of the ice bathtub. Note: When the weather is warmer (temperatures of about 16°-21°C or 60-70°F),the insulation device must be removed to prevent overheating of the jet pump. DANGERS Please only use non-toxic glycol to prevent freezing (available from most RV or marine supplies store).
Page 49 Step two:Remove the top cover Remove the screws around the top cover; Lift up and lift out the top cover. As the following figure shows Step three:Remove the front panel Remove the screws on the front panel; Disconnect the fan cable connector; Completely remove the front panel.
Page 50 Step five: Remove the electrical box Remove the remaining screws from the electrical box; Completely remove the electrical box. As the following figure shows Step six: Remove left rear pillar Remove the remaining screws from the left rear pillar; Completely remove the left rear pillar. As the following figure shows 7.13.
Page 51: Drain Your Ice Bathtub
!! Important: Unscrew the water nozzle of inlet pipe to let the water flow out. When the water in machine freezes in winter season, the titanium heat exchanger may be damaged. c. Cover the machine body when not in use. 8.
Page 52: Water Quality & Maintenance
9. WATER QUALITY & MAINTENANCE 9.1. Three Aspects For Water Quality Maintenance • Filtration • Chemical Regulation/pH Value Control • Disinfection The users have the responsibility to maintain the water in health status and regularly add qualified disinfectant to the water (if needed, add it every day). Through chemical methods, you can control bacteria and viruses in the tap water or in the water after using the ice bathtub.
Page 53 • pH Value • Disinfectants Recognizes and recommends the following two test methods: Test with reagent is a method of higher accuracy. The agent can be in liquid or  tablet form. The test with test paper is a simple method and many ice bathtub users use this ...
Page 54 9.4. How To Add Chemicals To The Water Important: All ice bathtub chemicals, including the sodium dichloro cyanurate exc disinfection powder, MPS (monopersulfate), powdered pH value - increasing agent and inhibitors, powdered total alkalinity - increasing agent, calcium hardness- increasing agent, descaling liquid and defoaming liquid, must be added directly into or before the filtration box during the operation of the jet pump, which must run at least 10 minutes.
Page 55 standard, it could lead to a water chemistry imbalance. This will damage the ice bathtub tub and its components, and makes the user discomfort. 9.7. Total Alkalinity (TA) Adjustment Water total alkalinity (TA) is 125-150ppm.  Total alkalinity means a metrics of the total content of carbonates, heavy ...
Page 56 Once the calcium hardness reaches balance, it will usually remain unchanged -  although the reading will increase and decrease after adding the water with high or low calcium content otherwise. You can carry out the next operation, after the calcium hardness has entered into ...
Page 57 Alkaline water Add pH inhibitors to reduce pH value (scaling zone) Comfort Zone Ideal range Alkaline water Add pH inhibitors (Corrosion zone) to reduce pH value Note: If the pH value is too high, you can add sodium bisulfate (pH value/alkalinity inhibitors) to the water to reduce the pH value.
Page 58 Water Quality Maintenance Quick Reference Ideal range (PPM) Chemicals used Step Inhibitors Minimum Maximum Increasing agent Total Sodium bicarbonate Sodium bisulfate Alkalinity or baking soda Mix 75% hard Calcium Calcium hardness water with 25% Hardness increasing agent soft water, or use detergents pH Value Sodium bicarbonate...
Page 59 Note: By replacing the cartridge ﬁlter, please refer to the instruction of previous “Clean Your Filters” . 9.13. Chloride (Sodium Bichloride) Chemical disinfectants such as chlorine, are oxidants used to kill bacteria and  germs in water. The free residual chlorine (FAC) means the measurable chlorine amount remaining in the water, that can be used for disinfecting the ice bathtub.
Page 60 Important: By improperly storing, the granular form chlorine (sodium bichloride) will be decomposed. We recommend the purchase and use the chlorine in 1 pound, 2 pounds or 5 pounds package. To maintain performance, please store it in a cool and dry location. 9.14.
Page 61 For example, two persons regularly use the ice bathtub, one time per night and 20 minutes each time. In this case, the disinfectant demand is relatively clear and generally ﬁxed. In the ﬁrst month of use, the two users can accurately determine the required quantity of disinfectants to maintain proper residual chlorine.
Page 62 Note: The content of minerals in the well water is higher. A low ﬂow water filter with ultrafine pores can help filter out many of the larger particles. 9.19. Foam Inhibitors Because the soap will be piled more and more in the water, so the water needs to be ...
Page 63 9.21. Clean Of The Ozone Jet Sometimes, the ozone jet can be blocked due to mineral accumulation, that will lead to interruption of the ozone bubble ﬂow or lower speed of the ozone bubble ﬂow. In order to prevent this situation, please clean the jets in according to the following instructions: Cut off the power of the ice bathtub.
Page 64 9.22. Precautions The use of acid and hydrochloric acid to reduce the pH value of the ice bathtub and  swimming ice bathtub is forbidden. It is forbidden to splash the pH value increasing agent into the wall.  The use of solid disinfectant is forbidden. ...
Page 65 The floating device is unable to control the speed of the disinfectant dissolved in  water. When the floating device has just been placed in a ice bathtub, the concentration of the disinfectant could be extremely high and lead to chemical burns or discoloration on the ice bathtub tub or cover back.
Page 66 Answer: More touching of any chemical is harmful to the human body. But many chemicals at lower concentration have a good function. For the ice bathtub water, chemicals recommended by CALDERA water quality maintenance program are required, in order to protect the users from hazards of aquatic pathogens (disease-causing microorganisms), while preventing corrosion of the ice bathtub components.
Page 67 amount is the amount of chemical disinfectants that can be used to kill bacteria, germs and algae. Corrosion: Refers usually to gradually damaging to metal parts of the ice bathtub due to chemical reaction. Under normal circumstances, the correction can happen, if pH value is low, or the level of TA, CH, pH value and disinfectants exceeds the recommended range.
Page 68: Trouble Shooting
Total Alkalinity: Refers to the amount of heavy carbonate, carbonates and hydroxides in the ice bathtub water. A proper total alkalinity is every important for pH value control. If the total alkalinity is too high, it is difficult to adjust the pH value. If the total alkalinity is too low, the pH value is difficult to maintain at an appropriate level.
Page 69 higher, total alkalinity and pH need to remove deposits, drain out water, value is too high clean fouling, adjust total alkalinity and pH value after re-adding water If your ice bathtub seems not to work properly, please refer to the "Starting Up" and "Operation"...
Page 70: Service
does not work • If the jetsymbol does automatically reset. If the problem persists, notshine, it is a control please contact your Authorized ice bathtub switch malfunction Dealer. • Disconnect the power supply and contact Jet pump or motor • Water level is too lower your dealer.
Page 71 Some of them are more sensitive and can close the water pump at a lower  temperature. High temperature: All models of the ice bathtub are equipped with a jet pump and  the motor of the jet pump will generate heat. Your ice bathtub has an air outlet leading to outside of the ice bathtub cabinet to prevent the jet pump motor from overheating.
Page 72 recommended ice bathtub surface chemicals or ice bathtub tub surface cleaning agents and cause damage will let the limited warranty invalid. Damage caused by the attachment of the insoluble ice bathtub disinfectants on  the ice bathtub tub surface (no ice bathtub tub surface material can withstand this kind of abuse) and the damage of the components or the ice bathtub tub surface due to improper water chemistry maintenance will let the limited warranty invalid.
