Summary of Contents for HOLTER SUPPLIES AFT 1000

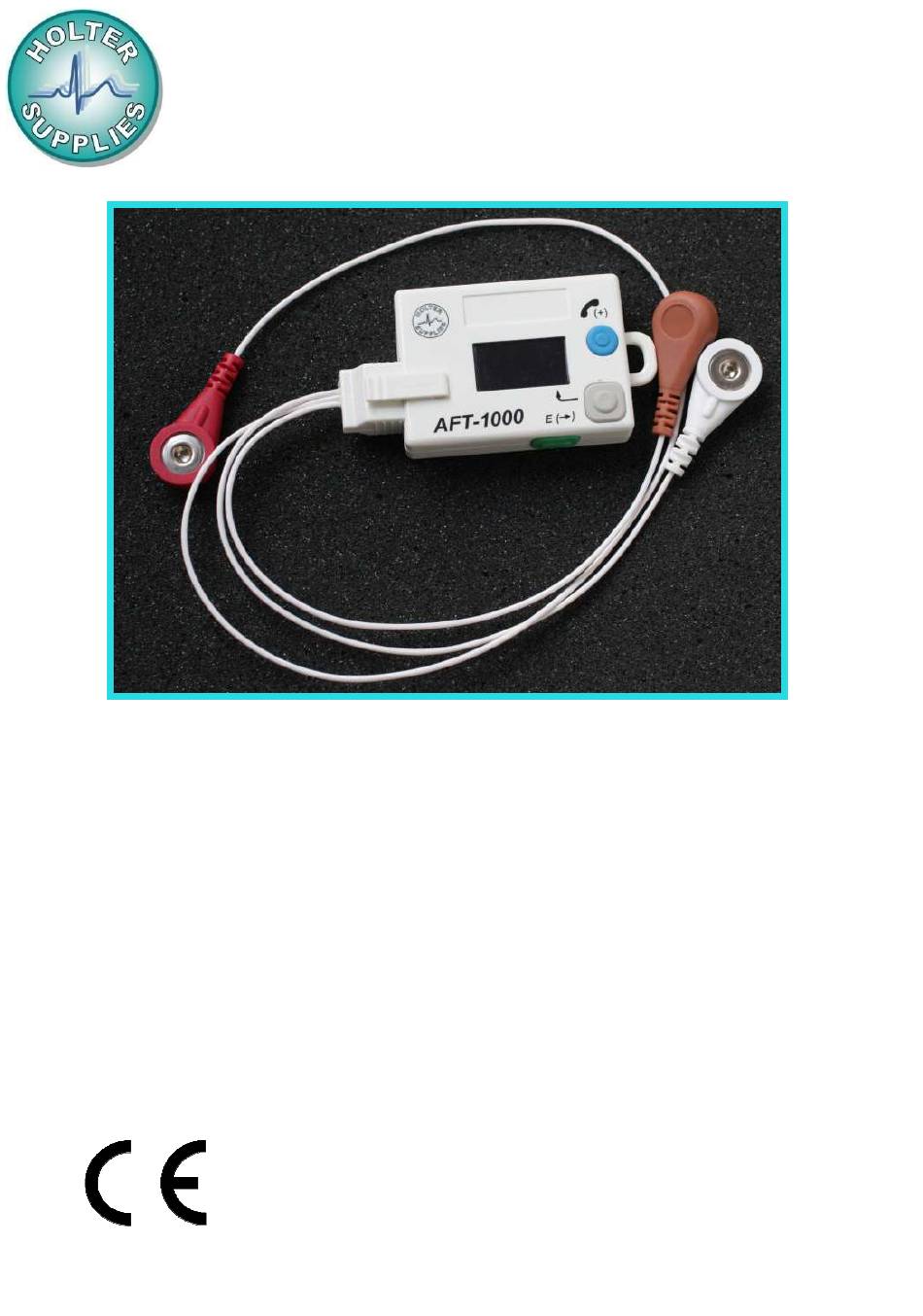

- Page 1 AFT 1000 Digital Holter recorder USER GUIDE Software version 1.64 et + réf.: AM710_GBA4_09A 0459 0459 year CE : 2008...
-
Page 2: General Description

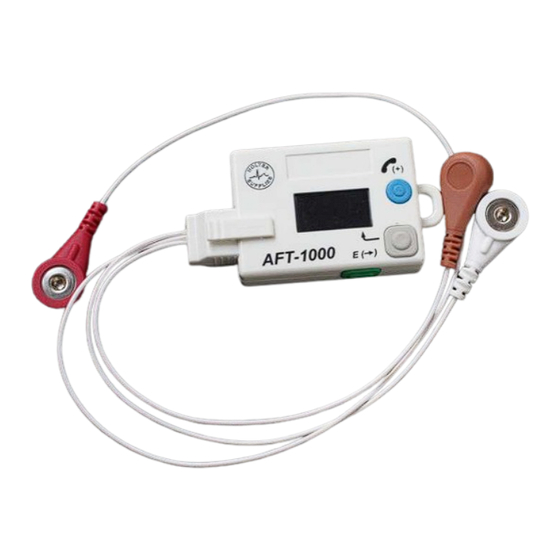

I. Introduction The AFT1000 is an ECG (Electrocardiogram) Holter recorder using an internal flash memory. The AFT1000 records 1, 2 or 3 tracks of ECG in standard quality (250Hz/10µV) or in High Quality (1000Hz/2,5µV). The recorded data are transferred via a USB2 "High Speed" (480Mbauds) cable to a PC running the “Quick Reader®”... -
Page 3: Electrodes Placement
"QuickReader". The software has it's own guide. Look at if there is a new version of this software on the Download page of Holter Supplies web site. An After Sales Service file to fill in case of failure (directory SAV). - Page 4 2 channels recording 3 electrodes. Ca ble : RFT00-2L3-250 or RFT00-2L3-1000 Place the electrode with the red connector (A+) over a rib at V5, the electrode with the brown connector (B+) over the xiphoid at the bottom of sternum and the electrode with the white connector (common -) on the manubrium.
- Page 5 3 channels recording 4 electrodes 250Hz. Cable RFT00-3L4-250 This configuration is the same as the 2 channels recording 3 electrodes, with an antero-posterior lead more. The blue connector (C-) is placed posteriorly and paravertebrally facing V2. white A channel B channel blue brown C channel...
-
Page 6: Starting The Recorder
IV. Starting the recorder Put the battery: Open the battery case, at the back of the device. Install a new alkaline battery AAA (or a rechargeable battery) and respect the polarity as indicated in the battery case (see below). pole + Install and close the battery cover until the Index is positioned on "O"... - Page 7 Place the recorder in a disposable protective pouch PCT03 economic & lanyards PCT05 The pouch must be changed for each patient. Switch on the recorder Put the index on "I": move the battery cover by pushing the central beam. The recorder switches on and displays the main display after a memory check Normal stop by cover STOP/...
- Page 8 V. Menu of the AFT1000 Except the time, date, selection of disconnection alarm and if case the sampling frequency, there is not anything to set in the adjustment screen. The only one button to use is the button "Display" which commands the next screen in the menu. Main diagram: Incorrect Date/hour Initialization screen:...
- Page 9 During the recording, the button commands the display of the main screen. In this case, the wheel turns. IMPEDANCES MEASUREMENT: The AFT1000 permanently checks the impedance of the cables and the electrodes. Channel More the connection is good, Impedance of higher is the line of the channel impedance.
-
Page 10: Data Transfer
VI. Data transfer: After the device stopped, and after setting the index of the battery cover on "O", you can process to the transfer of the data to a PC under Windows (XP, Vista, 7..),which has a minimum of 1 Gigabyte of memory, 10 Gigabytes free on the hard disk, and a USB "2 High Speed" connector (see Quick Reader specifications). - Page 11 that the correction doesn’t interfere with the internal management by checking the memory of the recorder (start -> main screen or time adjust screen). A sudden hard drive failure can happen ! Don't forget to secure your download data on the PC: create an copy of each record in a second hard disk of the PC (internal of external) or by write on a flash memory or a DVD with all the last data.
-
Page 12: Technical Spécifications
VIII. Technical spécifications ECG features: • • • • Recording ............without compression (delta 8 bit optimized) • • • • Channels ............1 to 3 channels • • • • Resolution ............12 bit, 10µV & 2,5µV (1000 H.Q.* model) •... -
Page 13: Electromagnetic Compatibility
WARNING: If a patient wearing an AFT1000 recorder needs to be defibrillated, it is mandatory that the recorder’s electrodes be removed before the defibrillator is used. WARNING: The AFT1000 shall not be used in environments with flammable aesthetic mixtures with oxygen or nitrous oxide. WARNING: The recorder can be disturbed by strong electrostatic discharges, particularly if it is out of its protective pouch. -
Page 14: Warranty
X. Warranty AFT1000 guaranteed for parts and labour during two years from the date of delivery. The accessories as the ECG cables are not guaranteed after their first use. After-sales service is available after the warranty has expired. WARNING: the warranty is only valid under the condition that no attempts have been made to open or repair the device, or to write or erase the flash memory - as virus -. - Page 15 Guidance and manufacturer's declaration - electromagnetic immunity The AFT1000 is intended for use in the electromagnetic environment specified below. The customer or the user of the AFT1000 should assure that it is used in such an environment. Electromagnetic environment — guidance IEC 60601 Compliance Immunity test...
- Page 16 Tel. : +33 1 47 51 40 04 www.holtersupplies.com Note: These data are indicatives and don't engage Holter Supplies: depending of the hardware and software versions, several points can change and functioning be different from those indicated. We invite the user to verify the functioning of his device with its ECG cables and its battery.
