Summary of Contents for sewercam SR60-2WL

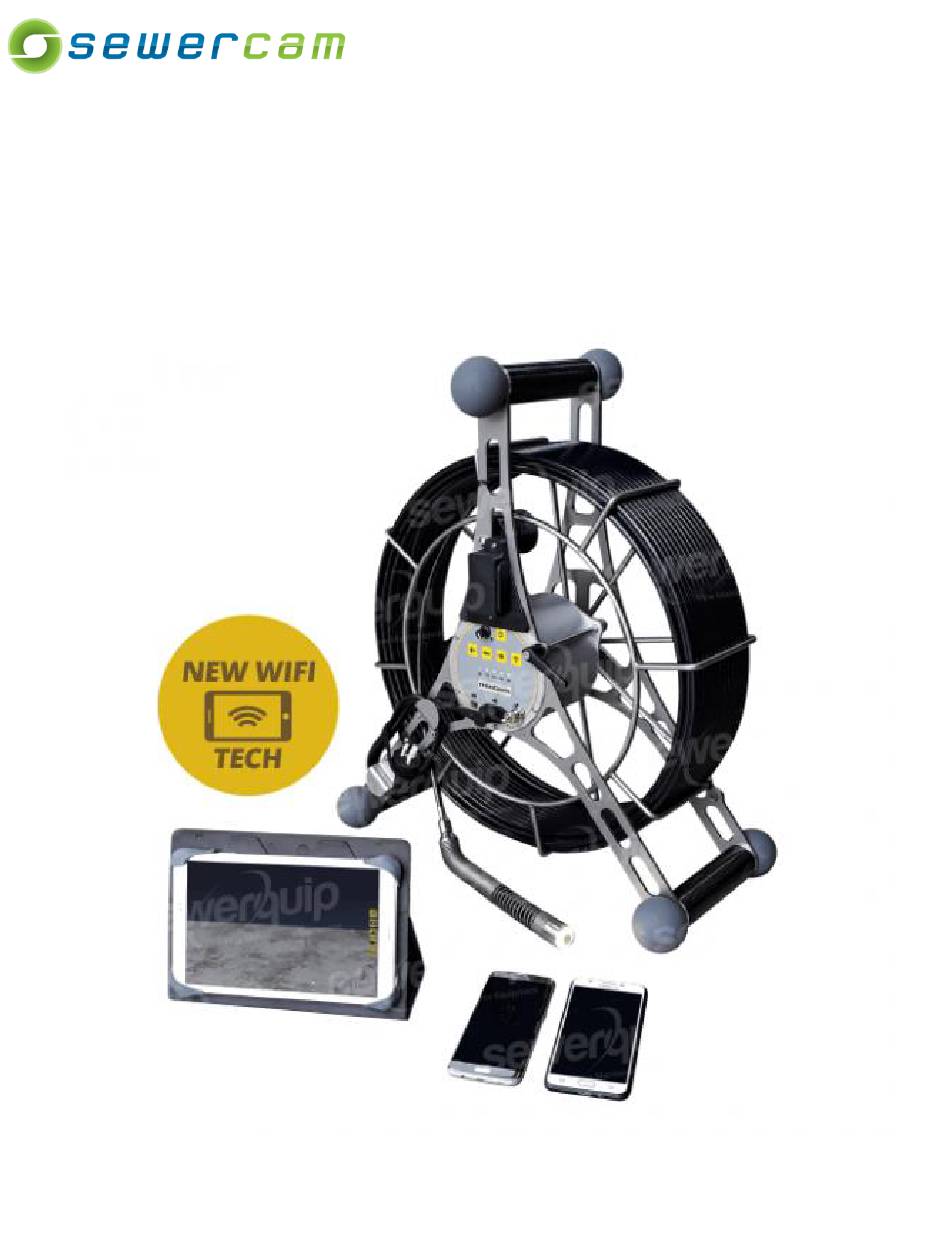

- Page 1 User Guide SEWERCAM SR60-2WL WIFI DRAIN CAMERA CCTV PIPE INSPECTION SYSTEM...
-
Page 2: Table Of Contents
2019 Table of Contents Pg. 3 SEWERCAM™ Warranty Statement. Pg. 4 General Warnings & Advice. Pg. 5 General Safety Information. Pg. 6-11 Description of Standard Components. Pg. 12 Operation • Pre Checks • Camera Head Lighting • Meter counter •... -
Page 3: Sewercam™ Warranty Statement
Product testing and checking are an essential objective in the manufacturing of the SEWERCAM camera systems. However failures cannot be excluded totally. If failure occurs due to defects in materials or workmanship, you will be covered by our generous warranty. -
Page 4: General Warnings & Advice
• Should there be any need of repair, please contact SEWERQUIP or an authorized dealer. • Only ever use genuine SEWERCAM™ spare parts and an authorised SEWERCAM™ repair agent. Failure to do will lead to termination or your warranty. •... -
Page 5: General Safety Information
Some countries have regulations concerning battery disposal. Please follow all applicable regulations. • Only an Authorised SEWERCAM™ repair agent should ever remove the front control panel. PERSONAL SAFTEY • Always wear appropriate clothes. Do not wear loose clothes or jewellery which could be caught in moving parts. -
Page 6: Description Of Standard Components
DESCRIPTION OF STANDARD COMPONENTS. Your SEWERCAM™ pipe inspection system is made up of four major components. 1. Camera Head(s). 2. Camera push cable(s). 3. Reel frame. Camera Push Cable WIFI - dongle Reel Frame Camera Head... - Page 7 The front lens is Sapphire scratch & impact resistant to withstand impacts in Clay and Cast Iron pipe. Some SEWERCAM™ camera heads have a self-levelling feature. This is where the camera head module is always levelled in the upright position.
- Page 8 ALWAYS make sure the camera connector nut is tight before carrying out an inspection. 2. Push Cable The SEWERCAM™ push cable is a vital part of your system, without the cable your inspection system will not function. The push cable consists of a fibreglass core with imbedded conductors and hard plastic cover.
- Page 9 3. Reel & Controller The SEWERCAM™ Push Reel & Controller is the main frame & control system for your inspection system. The controller module in the reel, controls important functions like battery, camera head light brightness intensity, sonde transmitter and meter counter.
-
Page 10: Operation
DO NOT use or store the camera system in heavy rain or damp environments. • DO NOT remove the control panel for any reason. Doing so will void your warranty. Any repair work is only to be carried out by an approved SEWERCAM™ repair agent. 4. Monitor SEWERCAM™ SCD 8.4” RECORDING MONITOR... -
Page 11: Recording Videos & Photos
Your SEWERCAM™ camera is fitted with a 33 kHz location transmitting sonde for accurate location of the camera head. The sonde can be located up to 4m deep depending on the ground type, pipe type, locator receiver and surrounding services. - Page 12 The network name and password are located on the back of the drum. Connect to the network and enter the password. Once connected it will tell you that you do not have access to the internet. The wifi connection does not require your device to have a mobile or wifi connection to operate. Videos will be stored as MPEG-4 file with the AVI extension.
-
Page 13: Storing Photos
To view the video on your device you will need to download VLC media player. Storing a Photo PHOTO BUTTON To take a photo press the photo button. Taking a photo while video recording Taking photos while recording can be done by simply pressing the photo button whilst recoding a video at the same time. -
Page 14: Maintenance And Cleaning
Maintenance and Cleaning Camera Head 1. The camera head requires very little maintenance apart from keeping the camera LED light ring and Sapphire window clean for optimal performance. 2. The Camera head can be cleaned with warm soapy water and soft fibre whips. Do not use alcohol or Solvents. - Page 15 Adapter with gold plated collector ring and spring-pins to enable fast changes of camera-heads. • 10 bar (100m) Pressure rating • Temperature: -10° to +40°C Camera cables • 60m x 7.2mm SEWERCAM™ EASYPUSH glass fiber push rod cable with inner conductors. (max 80m)
- Page 16 • 30m x 5.5mm SEWERCAM™ MICOPUSH glass fiber push rod cable with inner conductors. • 20m x 5.5mm SEWERCAM™ MICOPUSH glass fiber push rod cable with inner conductors. Safety hints • This operation manual shall help you to get acquainted with this camera system.
