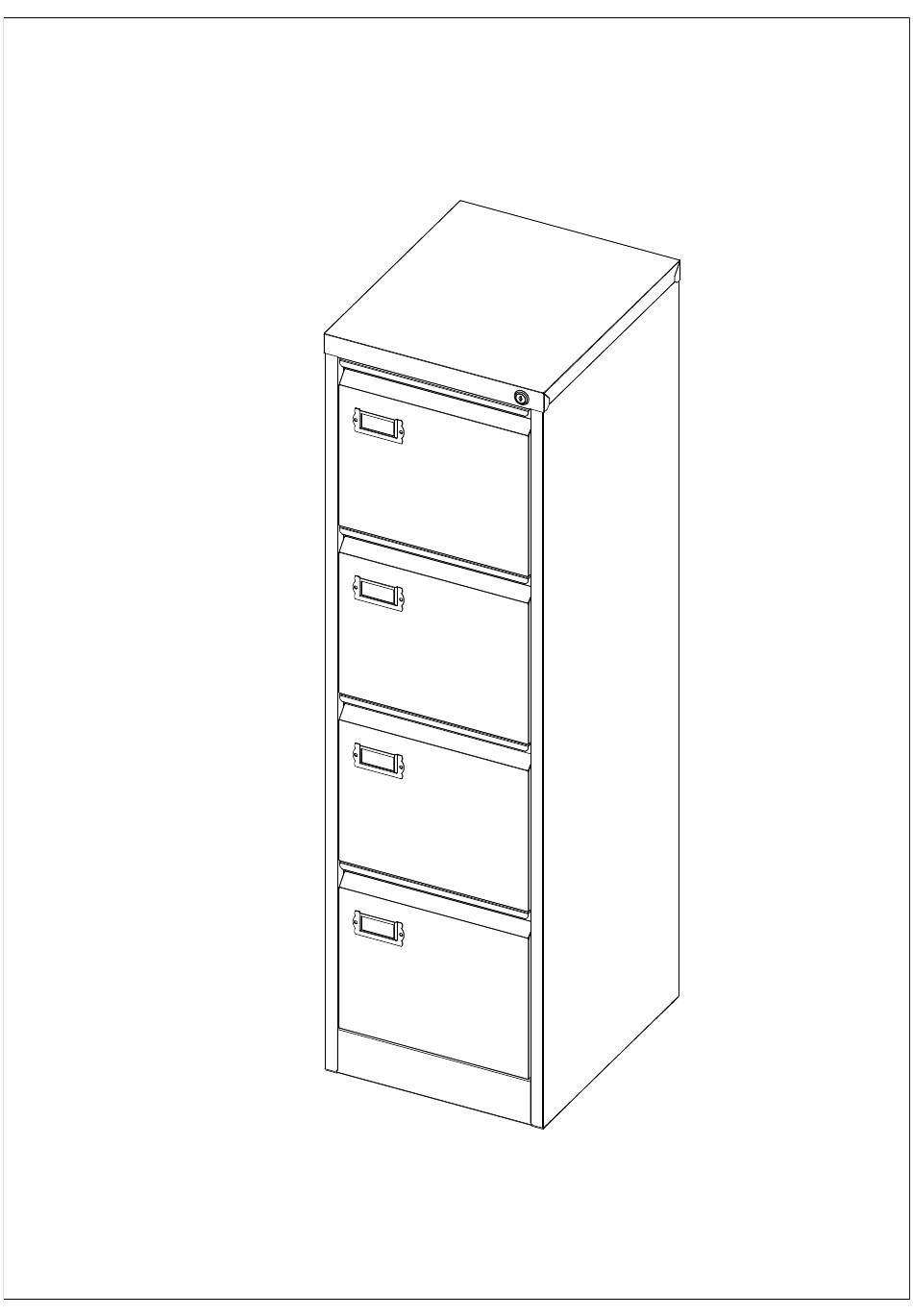

Summary of Contents for ZAOUS DB89416
- Page 3 A×1 B×1 C×1 D×1 E×4 F×4 G×4 I ×4 J×36 K×1 L×4 M×8 H×2...
- Page 4 step 1 Insert Part H into the channels of the two side panels, and put eight screws in the holes to make them in place. J×8...
- Page 5 step 2 Put the rear wall C into the cabinet from above, and put six screws to hold it in place. J×6...
- Page 6 step 3 Slowly push the lock bar on the right side UP until the lock on the top plate D can be inserted into the small hole. Then push the top plate D down into place. J×6...
- Page 7 step 4 The cabinet can be fixed to the wall as needed. Wall K×1...
- Page 8 step 5 Insert the tabs at the bottom of the drawer faces E into the drawer body F and bend the tabs. Bend the side walls of the drawer to vertical.
- Page 9 step 6 Bend the tabs on the drawer faces. Put four screws to hold them in place. L×1 M×2 J×4...
- Page 10 step 7 Insert the drawer back wall from the inside. Ensure that the bottom piece of Part G totally insert into the drawer.
- Page 11 step 8...
- Page 12 step 9 Pull out the two sliding rails at thearrow position of the cabinet completely. Snap the two holes on both sides of the drawer into the rail clips. Push down the drawer while pulling up the rails to snap it into place.
- Page 13 step 10 Ensure that you have pushed down the drawers hard enough to fasten the rail snaps before closing them. If the drawers do not snap into place, they will not work properly. You can verify that the drawers are in place by checking the snaps at four locations inside the drawer .
- Page 14 step 11 Install the other three drawers in the same way. Note: The pushing of the top drawer will squeeze the spare key.
-
Page 15: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM 1: The (top) drawer will not close or didn’t fit Check to see if the drawer is properly snapped into the rail, and make sure you have pushed the drawer down hard enough to make it snap completely into the rail-hanging holes. If the drawer is not seated at the bottom, it will be partly higher and unable to close.
