Sumsir IMTP-4002.1 Operation Manual

Knx 4 inch touch panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KNX 4 inch touch panel operating guide
IMTP-4002.1
IMTP-4003.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMTP-4002.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sumsir IMTP-4002.1

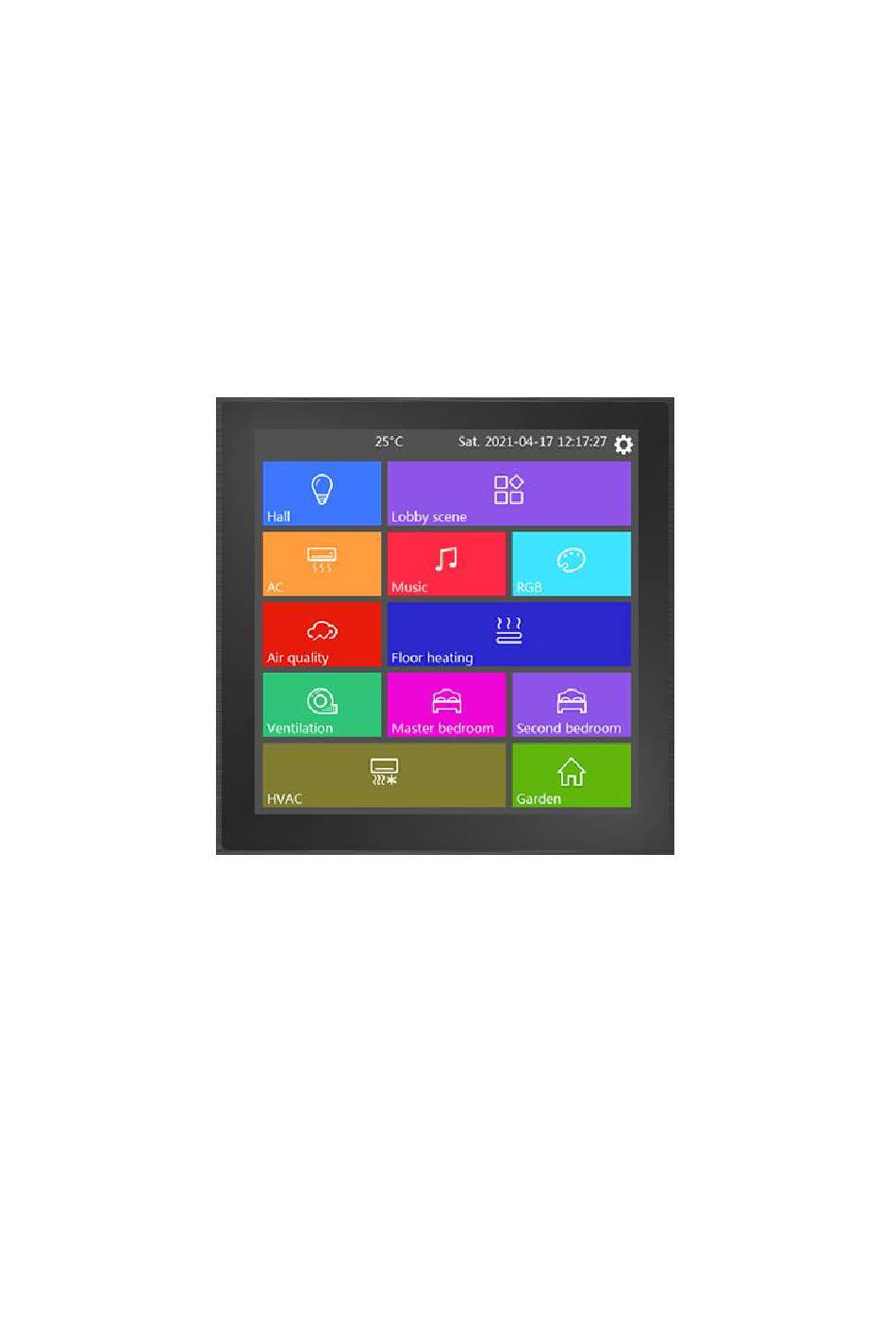

  • Page 1 KNX 4 inch touch panel operating guide IMTP-4002.1 IMTP-4003.1...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ............................. 4 1.1 Pages switching ........................4 1.2 Pages switching logic ......................5 2. Homepage ............................6 2.1 Pages and operation method ..................6 2.2 Homepage Style type ......................7 3. Control page ............................9 3.1 Pages and operation method ..................9 3.2 Controls introduction ......................10 4.
  • Page 3 5. Screensaver function ........................33 5.1 Analog clock ........................33 5.2 Digital clock ........................33 6. Screen lock password page ..................... 34 7. Bus data update page ........................34 8. Icon list ............................35 8.1 homepage navigation icon list ..................35 8.2 Button function icon list ....................36...

  • Page 4: Introduction

    1. Introduction 1.1 Pages switching Settings page Homepage Control page...

  • Page 5: Pages Switching Logic

    On the homepage, you can click the button in the page to enter the control page. By clicking the setting button in the upper right corner to enter the settings page. By clicking the home button in the upper right corner to back to the homepage.

  • Page 6: Homepage

    password was set you will enter the password screen lock page when you turn on the panel. The panel will enter the update page when receives the update command from the bus. 2. Homepage The main page has 3 styles according to the configuration, and users can configure them on the panel according to their preferences.

  • Page 7: Homepage Style Type

    2.1.2 Operation method With click navigation button jump operation, other functions are slightly different according to different styles. 2.2 Homepage Style type 2.2.1 Blockly Style Blockly Style ① For the current sensor temperature, click to switch between centigrade and Fahrenheit. ②...
  • Page 8 2.2.2 Squares Squares Traditional Squares style, you can slide up and down to display the page, click the icon to enter the current control page. 2.2.3 Windows Style Windows Style Imitating the Windows style, the color block will have random animation effects for a certain period of time.

  • Page 9: Control Page

    3. Control page The control page is configured by the ETS, and the button type, icon, name, and layout can be configured. If the name is not displayed properly, it needs to be configured as UTF8 characters in the project. 3.1 Pages and operation method 3.1.1 The overall function of the Pages Control page function...

  • Page 10: Controls Introduction

    3.1.2 Operation method Different controls are slightly different, and the touch panel is mainly operated by clicking. Some controls have long press function. 3.2 Controls introduction 3.2.1 Switch Click to the switch on and off. For example, the current chandelier. 3.2.2 dimming Click to switch the current on and off.
  • Page 11 Relative adjustment curtain Percentage adjustment curtain Relative adjustment blind...
  • Page 12 Percentage adjustment blind 3.2.4 Scenario Click to send the current scenario. The scenario can be configured to save the scenario function, long press to bring up the secondary dialog. Click OK, you can call the save scenario function. Saving scenario dialog 3.2.5 Customize function Similar to the scenario function, click to send messages to the bus for control.
  • Page 13 3.2.6 Air condition Air condition Power button: Switch the AC control on and off. A semi-transparent mask layer will appear in the shutdown state. Dial: It can adjust the current set temperature value, 16 to 31 degrees Celsius. Plus and minus buttons: Increase or decrease the current set temperature value, the minimum value is 16 degrees Celsius, the maximum value is 31 degrees Celsius.
  • Page 14 Timing dialog The timing can be set to an interval of 30 minutes, up to 24 hours. Turn the power on or off regularly. 3.2.7 Music Music dialog Power button: Switch the music control on and off. A semi-transparent mask layer will appear in the shutdown state.
  • Page 15 adjustment, no absolute adjustment function. More function buttons: Display the music secondary dialog. To set play mode and play source. Music secondary dialog Play mode: random, single, loop, list Play source: SD，USB，AUX，FM 3.2.8 HVAC HVAC Power button: Switch the HVAC control on and off. A semi-transparent mask layer will appear in the shutdown state.
  • Page 16 Plus and minus buttons: Increase or decrease the current set temperature value, the minimum value is 5 degrees Celsius, the maximum value is 40 degrees Celsius. Heating cooling mode: Click to switch. Heating or cooling. Mode: Click to switch. Comfort, standby, night, protection. Fan speed: Click to switch.
  • Page 17 3.2.9 RGB Power button: Switch the RGB control on and off. A semi-transparent mask layer will appear in the shutdown state. Color panel: You can slide to adjust the current color. Indicates the color currently selected in the circle. Brightness slider: adjust the current brightness value. Color selection area: Click to set the current color, long press to save the current color.
  • Page 18 Secondary timing dialog: You can select the interval time and the number of color block to switch automatically. After the timing is turned on, the next color can be switched after the interval time is up, and the switching will be performed cyclically.
  • Page 19 3.2.11 Floor heating Floor heating Power button: Switch the floor heating control on and off. A semi-transparent mask layer will appear in the shutdown state. Dial: It can adjust the current set temperature value, 16 to 31 degrees Celsius. Plus and minus buttons: Increase or decrease the current set temperature value, the minimum value is 16 degrees Celsius, the maximum value is 31 degrees Celsius.
  • Page 20 The timing can be set to an interval of 30 minutes, up to 24 hours. Turn the power on or off regularly. 3.2.12 Ventilation Ventilation Power button: Switch the ventilation control on and off. A semi-transparent mask layer will appear in the shutdown state. Dial: It can adjust the current set fan state.

  • Page 21: Setting Page

    Timing dialog The timing can be set to an interval of 30 minutes, up to 24 hours. Turn the power on or off regularly. 4. Setting page The user can set the application. Including language, date and time, timeswitch, homepage, slide page, screensaver, password, display, sound, programming, about. Setting page Back button in the upper left corner.

  • Page 22: Language Setting

    4.1 Language setting Language setting Configurable Chinese or English display. 4.2 Date & Time setting Date & Time setting Date setting: year, month, day. Time setting: hours and minutes. Click on the date to display the date setting dialog.

  • Page 23: Timeswitch Setting

    Date setting dialog Click on the time to display the time setting dialog. Time setting dialog 4.3 Timeswitch setting Timeswitch setting...

  • Page 24: Homepage Setting

    Click on the selection buttons of each timer at the bottom of the page to switch between different timers for setting. You can enable or disable the current timer by switch. Click to set the time. Time setting 4.4 Homepage setting There are 3 styles, which have been introduced on the homepage before.

  • Page 25: Slide

    Homepage image setting 4.5 Slide page setting You can configure the time of automatically returning to the home page and 6 kinds of background images Slide page styles setting...

  • Page 26: Screensaver Setting

    Background image setting 4.6 Screensaver setting There are 2 types of screensaver that can be configured. Analog clock and digital clock. Screensaver enable and types...

  • Page 27: Password Setting

    Time to enter screensaver Enter the screensaver time can be configured 30 seconds, 1 minute, 5 minutes, 30 minutes. 4.7 Password setting 4.7.1 password setting page Password setting page Show whether a password is currently configured.
  • Page 28 4.7.2 Password clear and modification Password clear and modification Clear password: You can clear the password. Modification password: You can change the password. 4.7.3 Lock screen function Lock screen function Enable: You can enable or disable the password function Time to enter the lock screen page. You can configure 30 seconds， 1 minute， 5 minutes，...
  • Page 29 4.7.4 Password enter page Password setting page You need to enter the corresponding password to enter the password setting page. 4.7.5 Initial password setting page Initial password setting page Need to enter a four-digit password...

  • Page 30: Display Setting

    4.7.6 Password confirmation page Password confirmation page The four-digit password can be set only if it is the same as the initial password. You can click reset button to back the initial password setting page. 4.8 Display setting Backlight brightness configuration Set the backlight brightness value through the slider.

  • Page 31: Sound Setting

    Turn off time setting Screen off time: configure 30 seconds, 1 minute, 5 minutes, 30 minutes, 1 hour. In order to protect the screen, be sure to turn off the screen. 4.9 Sound setting Sound setting Enable and disable the sound. After enabling, click to have a key tone. A total of 8 kinds of sounds can be configured, corresponding to the loudness becomes larger.

  • Page 32: Program Setting

    4.10 Program setting Program setting Programming enable button: let the device enter and exit programming mode. Reset: You can restore the original state of the ETS after downloading. 4.11 About page About page Display current version and software update date.

  • Page 33: Screensaver Function

    5. Screensaver function 5.1 Analog clock Analog clock 5.2 Digital clock Digital clock...

  • Page 34: Screen Lock Password Page

    6. Screen lock password page Screen lock password page Four-digit password, input correctly to enter the panel. 7. Bus data update page Update page Enjoy it after the update is complete.

  • Page 35: Icon List

    8. Icon list 8.1 homepage navigation icon list Light Dimming Curtain Scene HVAC system VRV system Ventilation system Floor heating system Background music RGB Led dimming Sensor display Safe General room...

  • Page 36: Button Function Icon List

    Living room Bedroom Kitchen Training room Office Meeting room Video room 8.2 Button function icon list Switch icon 1 Switch icon 2 Switch icon 3 Switch icon 4 Switch icon 5 Switch icon 6...
  • Page 37 Dimming icon 1 Dimming icon 2 Dimming icon 3 Dimming icon 4 Dimming icon 5 Dimming icon 6 Curtain icon(up/down) Curtain icon(right/left) Louver Scene 1 Scene 2 All on All off Back home...
  • Page 38 Leave home Relax Button 1 Button 2 Power Stairs light Night light Game Sleep Party Welcome Video Music Meeting...
  • Page 39 Reading Ventilation Socket Timing Maintenance Cleaning Do not disturb Protection Lock door Meal...
