Summary of Contents for XQ XIAO QIAO B0CJDV7BSD
- Page 1 User’s Manual...

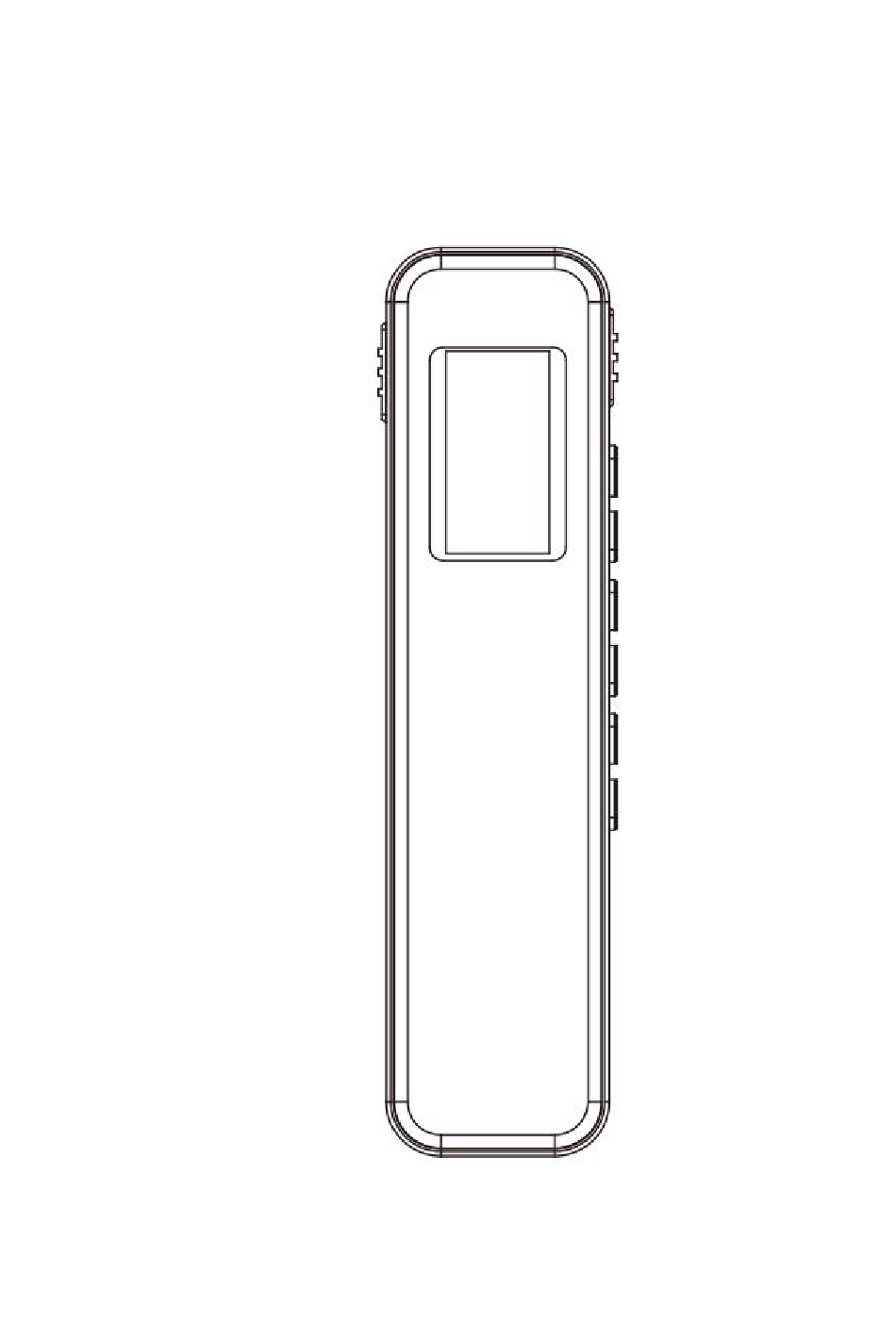

- Page 2 1.Recording Switch 2. Play/Stop/Validate 3. Menu/Back 4.Previous Song 5. Next Song 6.Volume increase 7.Volume Down 8.Power Switch 9.Micro USB 10.SD Card Slot 11.Hang Rope Hole 12.Display Screen 13.Headphone Hole 14. Reset 15.Loudspeaker...
- Page 3 Introduction ● charging This machine uses a built-in lithium battery for power supply. When the battery indicator is " ", please charge it promptly. Machine charging considerations： (1) Disable the mobile phone fast charging charger (2) Disabled the chargers and charging tools and equipment with DC voltage above 5V (3) The charging time is about 2 hours, and when the battery is fully charged, unplug the machine.
- Page 4 （2）Save the recording: In the course of the recording session, push down the recording switch “REC / SAVE" to save the current recording file. （3）Stop recording：During the recording, press " "switch to pause, if you need to continue recording, please press " "switch again.
- Page 5 the" "button to confirm, select“YES”or“NO”,and press the" "button again to confirm. ●Last song / next song, fast forward / quick back In the play state, short press the " " key to switch to the next file, and short press " "...
- Page 6 In the music file or recording file playing state,long Press the“ ” button to enter the submenu.Short press the “ ”button or the ”button to select“Cycle mode”, then short press the“ “ ” button，there are“Repeat All”,“Repeat One”,“Shuffle”.Select the menu by pressing the" "button or the "...
- Page 7 Short press" "key into the“Recordings Library”, and display list of recording files named by the date and time. Select the file that you need to play for and short press" "key to start playing. 2.REC Settings "key into the “REC Settings”,and display Short press"...
- Page 8 2.4 Gain Setting Short press " "key to enter the recording gain sub menu and press " "key or " "key to select the desired level. Level 0 to Level 7.(Default level 4) 2.5 off:Monitor Short press the“ ” key to select off or on. 2.6 Timed recording Press "...
- Page 9 Short press " " key to enter the language selection, short press " "key or " " key to select the required language , and then short press " " key to confirm and return to the previous level. 4.3 Backlight timer Press "...
- Page 10 4.8Factory setting Short press " " key to enter the factory setting, short press " "key or " " key to select whether to restore the factory setting, short press " " key to confirm and return to the previous level. Last Played 1.Play the last time of the file.
- Page 11 Shape Size 100X25X12MM Screen 128*128 dot matrix 0.96 inch TFT colour Data interface MICRO 5PIN USB2.0 External memory 4GB – 128GB Battery 3.7V/210MA Polymer Music format MP3 form 32Kbps–128Kbps Recording format WAV form 512kbps –1536kbps Maximum 2X20MW(16ohm) output Frequency 20Hz to 20KHz Headphone output response signal to...
