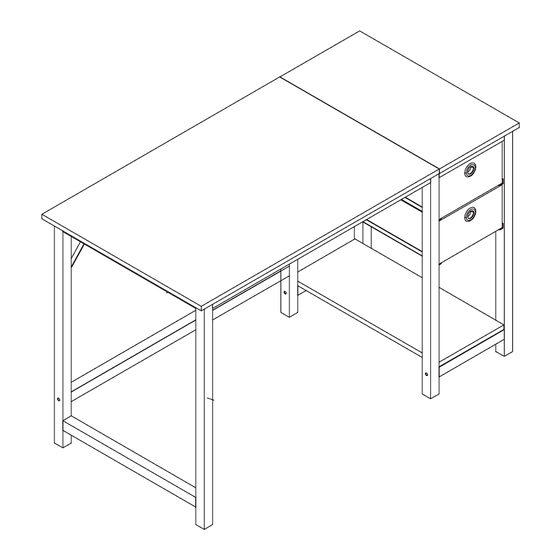

- Page 1 Drawers Instruction Manual D-F02BC-40IN D-F02BC-47IN D-F02BC-55IN HJ-Customer-Service@outlook.com (909)637-7665 | (909)637-7593 EST 9:00AM--17:00PM...
-
Page 2: Component List
Component List Desktop Board Splice Board Left Leg Frame Drawer Left Frame Fixed Frame Inclined Reinforcement Lower Panel Connector Tube Tube Drawer Right Frame Drawer Rear Reinforcement Tube Supplied Parts and Hardware M6x30mm M6x16mm Hook Wrench Screws Screws... - Page 3 Step 1 Install Fixed Frame (E) to the Left Leg Frame (C) with Screws (1)*2.
- Page 4 Step 2 Install Connector Tube (H)*4 to the Drawer Frames (D&I) with Screws (1)*8. Step 3 With Screws (1)*4, install Fixed Frame (E) Part to the Drawer Left Frame (D) Part, and then install Rear Reinforcement Tube (K) to the bottom of the Left Leg Frame (C) and Drawer Left Frame (D).
- Page 5 Step 4 Install Desktop Board (A) to the installed frame with Screws (1)*6. Two Screws (1)*2 need to pass through the Inclined Reinforcement Tube (F)*2 before installation. Step 5 Install Inclined Reinforcement Tube (F)*2 to the Left Leg Frame (C) and Drawer Left Frame (D) with Screws (2)*2 and install Lower Panel (G) to the Connector Tube (H)*2 with Screws (1)*4.
- Page 6 Step 6 With Screws (1)*4, install Splice Board (B) to the Connector Tube (H)*2 1. When installing the table panel (B), it is necessary to align it with NOTE: the holes on the steel frame, as the spacing between the holes on both sides of the table panel (B) is di erent, and misalignment can lead to deviation in installation.
- Page 7 Step 8 Attach Hook (3) to the Left Leg Frame (C) with Screw (2).
- Page 8 Technical Support (909)637-7665 | (909)637-7593 Other Info HJ-Customer-Service@outlook.com Thank you for choosing this product. We strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us.
