Satco Nuvo S21410 Installation And Safety Instructions

LED PL LAMP A + B
5CCT SELECTABLE G24Q
Models: S21410, S21412
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing fixture. Retain for future reference.
WARNING:
• DANGER: Risk of shock-disconnect power before
installation.
• Caution: Risk of fire. If the lamp or luminaire exhibits
undesirable operation (buzzing, flickering, etc.), immediately
turn off power, remove lamp from luminaire and contact
manufacturer.
If installed as ballast compatible, this lamp only operates on
electronic ballasts. If lamp does not light when the luminaire
is energized, remove lamp from luminaire and contact lamp
manufacturer or qualified electrician.
• WARNING: Risk of fire or electric shock. LED Retrofit
Kit installation requires knowledge of luminaire electrical
systems. If not qualified, do not attempt installation.
Contact a qualified electrician.
• WARNING: Product must be installed by a qualified
electrician in accordance with the applicable and appropriate
electrical codes. The installation guide does not supersede
local or national regulations for electrical installations.
• WARNING: Install this kit only in luminaries that have
the construction features and dimensions shown in the
photographs and/or drawing and where the input rating of the
retrofit kit does not exceed the input rating of the luminaire.
• WARNING: To prevent wiring damage or abrasion, do not
expose wiring to edges of sheet metal or other sharp objects.
• WARNING: To avoid potential fire or shock hazard, do not
use this retrofit kit in luminaries employing shunted bi-pin
lampholders. NOTE: Shunted lamp holders are found only
in fluorescent luminaries with instant-start ballasts. Instant-
start ballasts can be identified by the words "Instant Start"
or "I.S." marked on the ballast. This designation may be
in the form of a statement pertaining to the ballast itself,
or may be combined with the marking for the lamps with
which the ballast is intended to be used, for example F40T
12/IS, for more information contact the LED luminaire
retrofit kit manufacturer.
Do not make or alter any open holes in an enclosure of
wiring or electrical components during kit installation.
Installers should not disconnect the existing wire from
lampholder terminals to make new connections at
lampholder terminals. Instead installers should cut existing
lampholder leads away from the lampholder and make
new electrical connections to lampholder lead wires by
employing applicable connectors.
Installers should examine all parts that are not intended to
be replaced by the retrofit kit for damage and replace any
damaged parts prior to installation of the retrofit kit.
The units covered by this report were intended to retrofit surface mount, Type IC or non-IC recessed mount Listed fluorescent
luminaires that use maximum 2 tubular lamps, the minimum lamp compartment dimensions are tabulated below.
Item Number-Description
S21410 – 9PL/LED/HV/5CCT/A+B/4PIN
S21412 – 16PL/LED/HV/5CCT/A+B/4PIN
© Copyright 2023 Satco Products, Inc. 06/23 v1.3
• WARNING: Check the existing wiring for damage before
• "This luminaire has been modified and can no longer
• Only use the control provided with or specified by these
• Suitable for damp locations.
• NOT FOR EMERGENCY LIGHTING.
• This device complies with Part 15 of the FCC rules.
Minimum Lamp
Volts/Hz Compartment Dimensions
(Length x Width x Height)
120-277V/ 31 1/2 x 26 4/7 x 16 1/7 inches
50/60Hz (800 x 675 x 410 mm)
1

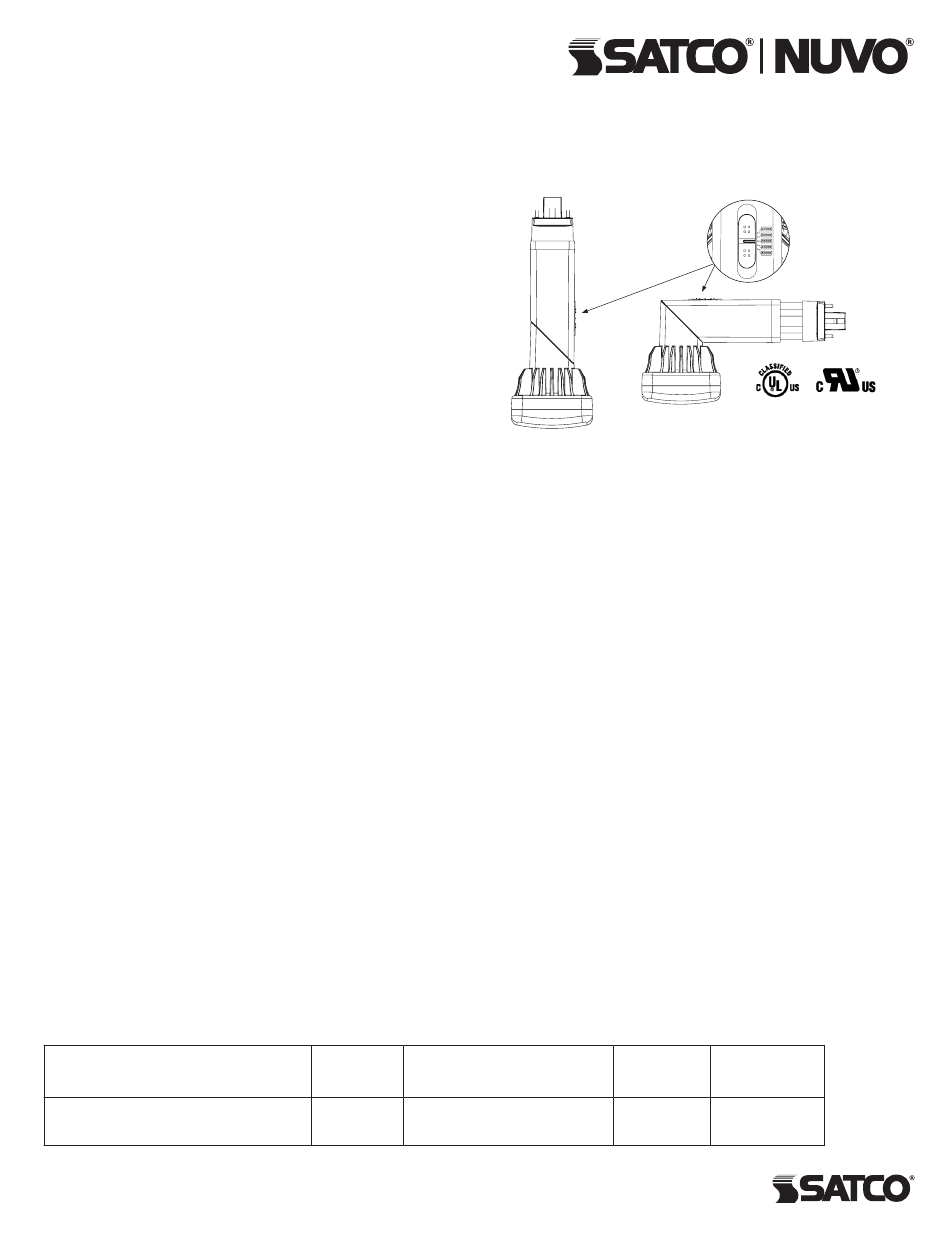

• Vertical or horizontal installation
• 90º rotatable and lockable cap for horizontal lamp
• Cap extendable
installing upgrade kit. Do not install if existing wires are
damaged.
This retrofit kit is accepted as a component of a luminaire
where the suitability of the combination shall be determined
by authorities having jurisdiction.
Type B Lamp – intended for operation in luminaires with
traditional fluorescent-type lamp holders wired directly
to the branch circuit. This includes both factory-wired
luminaries as well as those converted for this purpose
under a retrofit program.
operate the originally intended lamp," shall be marked on
the retrofit luminaire where readily visible by the user during
normal maintenance including lamping.
instructions to control this lamp. This lamp will not operate
properly when connected to a standard (incandescent)
dimmer or dimming control. Only operate with specific
dimmer MEX.G1.NA.45W manufactured
by Jiaxing Super Lighting.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) This device must accept any interference received,
including interference that may cause undesired
Lamp
Quantity
2
• 5 Color
temperature
selectable
operation.
Lamp-to-Lamp
Spacing
2 3/8 inches
(60mm)
