Summary of Contents for SCUMAXCON RCD360

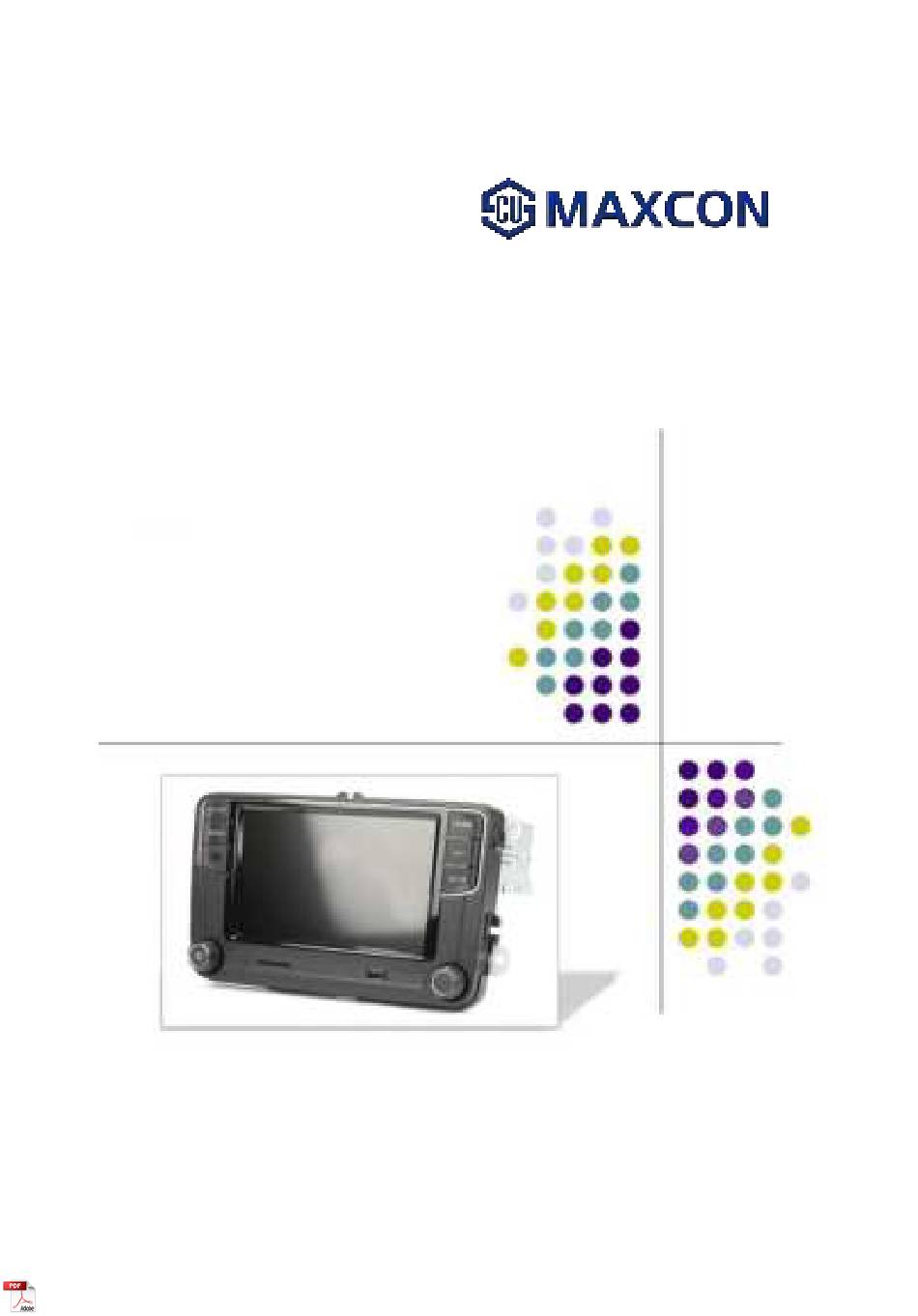

- Page 1 Car radio User manual RCD360 [VWA6138/VWA6138-CM]...
-
Page 3: Table Of Contents
RCD360 English Manual Unit overview..........2 Main Function...........3 Compatibility..........4 Power Adapter Instruction.......6 2 versions of the radio.......7 Instruction and installation vedio....7 Frequently Asked Question......8 After-sales Service........16 Youtube Home Page......16 Multi-language Manual Welcome to scan the QR code to see the user manual. -
Page 4: Unit Overview
Overview - 2 -... -
Page 5: Main Function
Main Function Function\Version RCD360 RCD360 PRO RCD360 PRO2 Language English English German German Russian Spanish FM/AM Media Bluetooth Bluetooth Apple Carplay Android auto Mirrorlink Optional Rear View Camera AV Dynaudio System Fender System Mic. built-in built-in Output 4x25W 4x25W Panel Size... -
Page 6: Compatibility
Car Compatibility For VW Golf MK6 2008 - 2014 Golf MK5 2003 - 2009 Golf A6(R) 2008 - 2013 Golf Plus 2004 - 2013 T5 Transporter 2010 - 2013 Tiguan 2007 - 2014 Scirocco 2008 - 2013 Touran 03/2003 - 2014 Passat B6(Sedan) 2005 - 2010 Passat CC 2008 - 2014 EOS 05/2006 - 2014... - Page 7 - 5 -...
-
Page 8: Power Adapter Instruction
Power Adapter Instruction There are two power cables (A and B) for this radio, we send cable A by default, if you need B cable, please contact our after sale service. Volkswagen cars have three different power interfaces, namely PQ quadlock, ISO plug and MQB quadlock. See the diagram below: - 6 -... -
Page 9: Versions Of The Radio
Attention: If your original radio is MQB Quadlock, or your car is Polo 6C with MQB Quadlock, the RCD360 is not compatible with your car.Please contact after-sales service to change a RCD360 PRO2 or the radio special for POLO 6C. -
Page 10: Frequently Asked Question
We’d like to help you out. 3.Multi-function steering wheel ·If your car is produced before 2010, we recommend you to purchase the radio RCD360 PRO2. Otherwise the radio cannot support Multi-function Steering Wheel. Please contact our service for help. · If the multi-function steering wheel is a little older version, like 8-button or 4-button, you need to choose the radio RCD360 PRO2 and an adapter. - Page 11 If you don’t want to change to RCD360 PRO2, you need to upgrade the gateway. After installation, it will be necessary to use VCDS (VA GCOM Diagnostic System) to encode. The new gateway model number is 11 digits, for example: (7N0 907 530 A G).
- Page 12 Solution for RCD360: please pull off the yellow pin of the power adapter, and connect it to the power source. Then, connect the power source to the fuse box on the left side of the steering wheel.
- Page 13 External device caused the battery leakage issue. 1）Disconnect all the external devices except the main unit. Check one by one. 2) If the camera caused the battery leakage problem, unplug the camera power cable. 5.Apple Carplay problem Please connect your iPhone through the USB port, and the device will automatically detect your iPhone.
- Page 14 Carplay no sound: If you decide to use the Carplay function, usually you do not need to connect Bluetooth to the radio. If you have connected both Bluetooth and Carplay, it may cause a conflict. Please turn on the Allow Carplay switch on your phone, otherwise the radio cannot communicate with your phone.
- Page 15 If you need the antenna cable, please contact us to buy it. 7.RCD360 camera issues If you like to order a rear camera, please choose the one with AV port. You could contact our service for help, and please tell us the model and the year of your car. It will be helpful, if you could send us some pictures about your license Plate Light with the correct length and width.
- Page 16 ▶ If your original car is equipped with a Volkswagen factory MIB interface, we recommend you to purchase our RCD360 PRO II radio. ▶ After installing the camera, please test it by closing the trunk to avoid the camera not working due to the reverse lights not functioning.
- Page 17 8.Protection mode -Display, system, power amplifier temperature protection mode When the temperature is lower than or equal to minus 20 degrees Celsius or higher than 60 degrees Celsius. The radio will enter the temperature protection mode, the screen will display [not in the operating temperature range. The screen/entertainment system will be shut down soon].
-
Page 18: Youtube Home Page
minutes before reconnecting it. This will reset the car amplifier and allow it to properly match with the audio system. ▶ If the above steps do not resolve the issue, please contact customer support for further assistance. 10.Microphone no sound If the person you are calling cannot hear your voice, please check if both the car's Bluetooth and CarPlay are connected at the same time. -
Page 19: After-Sales Service
After-sales Service Facebook Whatsapp 1.Facebook page: automodificationclub 2.YouTube: @scumaxcontechnology2770 3.Email: service@scumaxcon.com YOUTUBE VEDIOS Welcome to scan the QR code to watch the vide - 17 -...
