Feather Carbon Fiber 29X Power Wheelchair

Owners Manual

Product: Feather Carbon Fiber 29X Power Wheelchair

Sku: F-CF-29XC

Brand: Feather

Congratulations on buying the World's Lightest Power Wheelchair!!

At only 29Lbs, the Feather Carbon Fiber 29X Power Wheelchair is one of the lightest wheelchairs in the world.

Transporting individuals has never been easier! With brand-new materials, the Feather Wheelchair sets a new standard

for lightweight wheelchairs. Anyone can lift this wheelchair into a car, truck, or SUV. The chair also folds down into a

compact package. The Feather Power chair is available in an array of color choices and upgrade features.

Feather Carbon Fiber 29X Power Wheelchair Owners Manual

JULY2024_02

Table of Contents

Need help?

Do you have a question about the Carbon Fiber 29X and is the answer not in the manual?

Questions and answers

Summary of Contents for Feather Carbon Fiber 29X

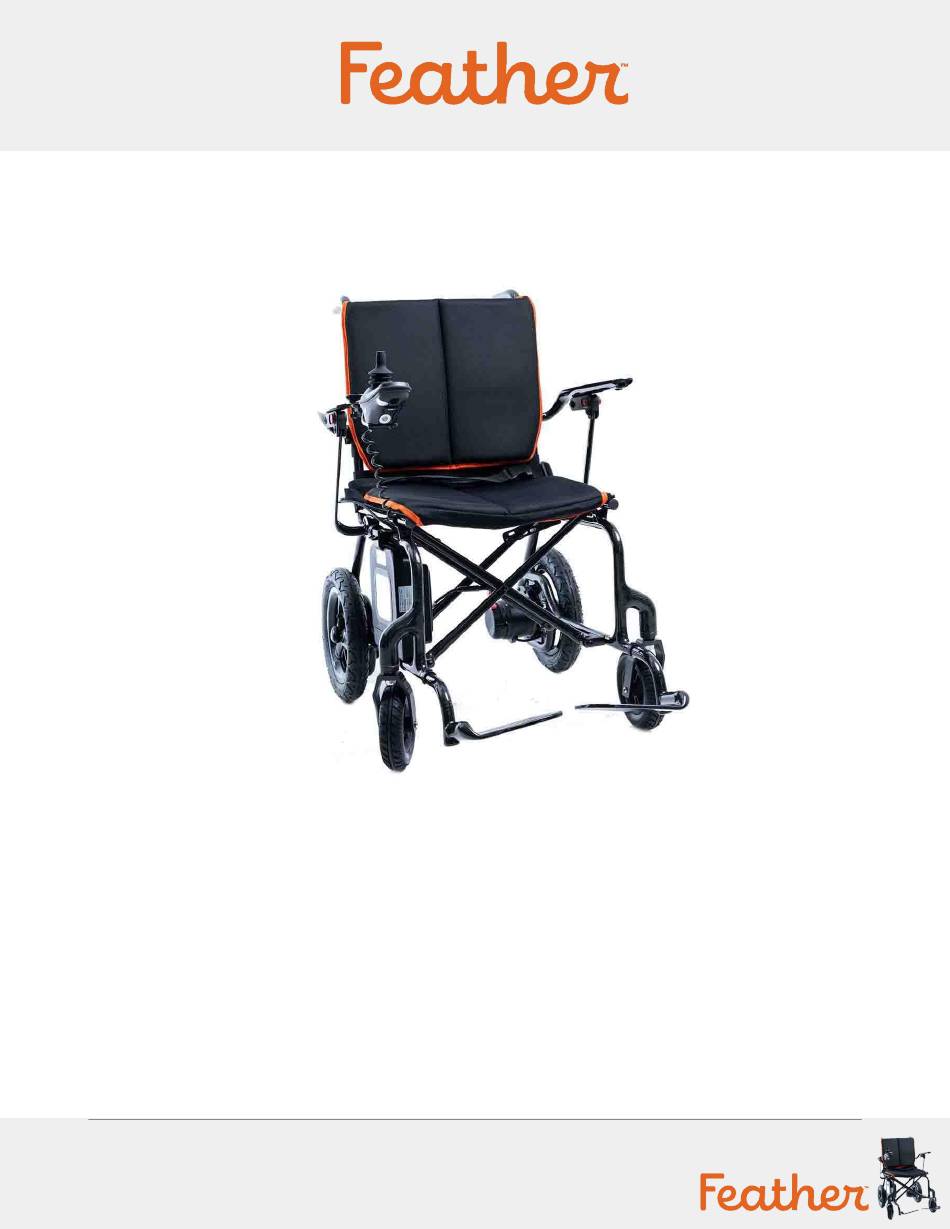

Page 1 Congratulations on buying the World’s Lightest Power Wheelchair!! At only 29Lbs, the Feather Carbon Fiber 29X Power Wheelchair is one of the lightest wheelchairs in the world. Transporting individuals has never been easier! With brand-new materials, the Feather Wheelchair sets a new standard for lightweight wheelchairs.
Page 2: Table Of Contents
Precautions For Safe Use…………………………………………….…….…….…….……..…….…….…….……….……..………3 Performance And Structure…………………………………………….…….……...…….…….…….…….…….…….……….…13 Technical Features………………………………………….…….…….…….…….…….……….………...……..……….…….……..15 Assembling, Folding, And Adjusting…………………………………………….…….……..……….……..……….…….……..16 Use And Operation…………………………………………….…….…….…….…….…….……….…….……..……….…….……..20 Fault Analysis And Troubleshooting…………………………………………….…….…….……….……..……….…….……..24 Safety Protection Device And Accident Handling…………………………….……………….……..……….…….……..24 Maintenance And Repair…………………………………………….…….…….…….…….…………………..……….…….……..24 Transportation And Storage…………………………………………….…….…….…….…….…….……….……….…….……..27 General Guidance…………………………………………….…….…….…….…….…….…….…….……………..…….…….……..27 Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 3: Introduction
Attention! Failure to heed the attentions in the manual may result in damage to the wheelchair. This product manual is applicable to the Feather Carbon Fiber 29X Power Wheelchair. 1) This product integrates advanced technology and modern style. In particular, its quick disassembly and assembly structure is very convenient for you to store or place in the trunk of your car when you travel.
Page 4 Disclaimer JYD Imports, HOVER, 1800 Wheelchair, or Feather Mobility, its afﬁliates, and partners, cannot be held responsible for personal injury or property damage that results from the unsafe or improper operation or maintenance of the Feather wheelchair and/or other JYD Imports, HOVER, or 1800 Wheelchair products purchased.
Page 5: Precautions For Safe Use
Please sit up well and buckle the seat belt, keep your head as far back as possible, and lean against the backrest in case of an out of control movement. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 6 We recommend driving slowly at the beginning for each use and gradually accelerate. 27) Indications for use: The Feather power electric wheelchair is a motor driven, indoor and outdoor transportation vehicle with the intended use to provide convenience for disabled and elderly individuals with limited mobility.
Page 7 WARNING: Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Feather power chair, including cables speciﬁed by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
Page 8 Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 9 Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 10 WARNING! Do not use the wheelchair in manual mode without accompanying the person, which may cause personal injury. WARNING! When sitting in the wheelchair, please do not move by yourself, which may cause personal injury. Ask your accompanying person for help if necessary. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 11 Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 12 Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 13 Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 14 Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 15 Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 16: Performance And Structure
The Power wheelchair is mainly composed of front wheel, drive wheel, frame, controller, motor and drive devices, armrest, push-handle, backrest, seat cushion, footrest, battery box, and charger. The structural diagram is below. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 17 No; Whether the wheelchair has a signal output and input part: No; Permanent installation of equipment or non-permanent installation of equipment: mobile devices Electric diagram of power wheelchair Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 18 Legrest Type Fixed, Foldable foot plates Planar Angle 3.5° Maximum Clearance 1” Maximum Speed 4mph Minimum Turning Radius 35” Backrest Angle 8.5° Driving Distance 6 miles Maximum Climbing Degree Angle 3° Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 19: Assembling, Folding, And Adjusting
Assembling, Folding, And Adjusting 1) Place the wheelchair on the ground, pull the left and right frames apart, and push down the seat bottom. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 20 2) Lift the handles upward on both sides until the spring clasp snaps into the holes. 3) Attach the pedal assemblies to the frame, align it with the holes, and snap the latches in. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 21 [I} Power on the Right, [II} Power on the Left, [O] No Power Supply connected 5) Insert the joystick controller into the armrest tube. Keep the controller horizontal and lock the screw. Connect the joystick controller wires and armrest mounting bracket lock nut. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 22 7) There are small red levers on the left hand and right hand rear wheel motors. Pull back on the levers to set manual mode (unlocked) and push forward on the levers to engage electric/power/drive mode (lock). For proper operation, both levers must always be in the same position. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 23: Use And Operation
The power indicator speed light and battery gauge will also turn on. Press it again, the power is off, then the speed light and the battery gauge will also turn off. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 24 CAUTION! If you connect any devices other than the supplied battery charger into the socket, causing damage to the control system, then the warranty is invalid. WARNING! Do not press the joystick hard by hand when getting on/off the wheelchair to avoid any accident. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 25 Battery Removal & Replacement The battery can be removed from the wheelchair and recharged. If the battery needs to be replaced, release the battery pack buckle underneath the seat, and then take it out. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 26 In this case, please ask your assistant to help you. Do not set your wheelchair in manual mode when it is on an incline. Otherwise, the wheelchair could be out of control to roll down by itself, and result in personal injury. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 27: Fault Analysis And Troubleshooting
Swap the plugs for the LH and RH motors. If the ﬁrst great light ﬂashes, the right hand motor is faulty. If the second great light still ﬂashes after swapping, the controller is faulty. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 28: Maintenance And Repair
The frame surface has been sprayed with a clear sealant coating. You can apply a light coat of car wax to keep the surface a high gloss. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 29 Perform the following inspections prior to using your wheelchair: ■ Check all wheels are in full operating condition and free from dings, erosions, and are making full contact with the ground. ■ Check all hand brakes. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 30 In addition, all removable wheelchair parts, including the armrests and front riggings should be removed and/or properly secured during movement. ● Never sit in this Feather product while in a moving vehicle. In an accident or sudden stop you may be forced out of the wheelchair from the impact.
Page 31 Always exercise extreme caution when negotiating an incline. WARNING! You should not travel up or down a potentially hazardous incline (ie areas covered with snow, ice, cut grass, or wet leaves) Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 32 WARNING! Operating in rain, snow, salt, mist or spray conditions, and on icy or slippery surfaces can have an adverse affect on your wheelchair. Maintain and store your wheelchair in a dry and clean condition. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 33 Obey all local pedestrian trafﬁc rules. Wait until your path is clear of trafﬁc and then proceed with caution. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 34 WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle. Nor is your wheelchair suitable for use as a seat in any vehicle. Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
Page 35 Replacing any hardware or wheelchair components with non-approved parts may result in faulty operation of your Feather product and may cause harm to the end user. Using non-ofﬁcial brand parts or making unauthorized changes to a Feather product will void the product warranty.
Page 36 See the complete line at FeatherMobility.com — the World’s Lightest Wheelchairs and Scooters https:/ /feathermobility.com Feather Carbon Fiber 29X Power Wheelchair Owners Manual JULY2024_02...
