- Page 1 IT7100 HMI User Guide Suzhou Inovance Technology Co., Ltd. Add.: No. 16 Youxiang Road, Yuexi Town, Wuzhong District, Suzhou 215104, P.R. China Tel: (0512) 6637 6666 Fax: (0512) 6285 6720 www.inovance.com...
-
Page 2: Revision History
Read this guide carefully before using to ensure safety. For details on use of the user program development environment and design of user programs, see the help file of InouTouch PAD, a software tool developed by Inovance. Visit our website (www.inovance.com) for the latest version of the guide. - Page 3 4. Use this equipment according to the designated environment requirements. Damage caused by improper usage is not covered by warranty. 5. Inovance shall take no responsibility for any personal injuries or property damage caused by improper usage. ■ Safety Levels and Definitions : The "DANGER"...
- Page 4 CAUTION ◆ Do not set any switch that may result in personal injury of the operator or equipment damage on the touch screen. A separate switch is required for important operation to avoid accidents caused by abnormal output or faults; ◆...
- Page 5 CAUTION ◆ Cut off the main power supply before connecting the power supply of the equipment. Failure to comply may result in electric shock. ◆ The input power of the equipment is 24 VDC. If the power input is not within 24 VDC±20%, the equipment may be damaged.
-
Page 6: Product Information

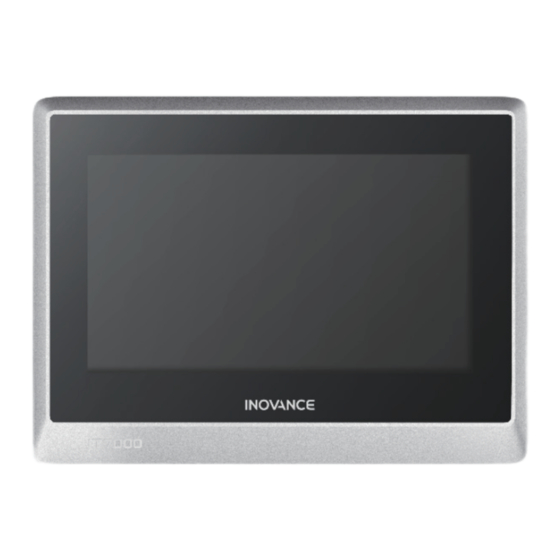

1 Product Information 1.1 Appearance and Model Number ■ Appearance ■ Model Number 1.2 Basic Parameters Product Model Item IT7100E IT7100S Cortex A8 1GHz Supported DRAM 256MB DDR3 128MB DDR3 Flash 256 MB 128 MB One Micro SD interface SD card interface No SD card interface (Supports Micro SD cards, push-push type) - Page 7 Product Model Item IT7100E IT7100S COM1 (RS422/RS485) Serial port COM2 (RS232) COM1 (RS422/RS485) COM3 (RS485) One 10M/100M adaptive RJ45 Ethernet port Ethernet port Cable: within 100 meters, CAT5 and above Mini USB type B One USB type B port port One USB type A port USB type A port Note: The USB type A port only use for mouse, keyboard and U-disk...
-
Page 8: Installation Environment
2 Mechanical Design Reference 2.1 Installation Environment This equipment operates stably only within -10° C to 55° C (14° F to 131° F). Temperature out of this range may cause damage, malfunction or performance degradation of components. For special occasions, please consult your supplier; 1) Install the equipment in an environment free from strong mechanical vibration;... - Page 9 2) Put the 4 clasps (delivered with the equipment) into the 4 mounting holes in top and bottom sides or left and right sides of the equipment from the back of the mounting plate; 3) Tighten the clasp screws until the equipment is securely fixed on the mounting plate.
-
Page 10: Terminal Description
3 Electrical Design Reference 3.1 Terminal Description Name Description HMI 24 VDC power input terminal Power supply terminal (A power connector is included in the delivery) Communication port between HMI and peripherals Built-in COM1, COM2 and COM3 serial ports (for IT7100S, only built-in COM1 is available) DB9 male connector COM1: RS422 or RS485... - Page 11 Name Description The main USB communication port to read/write a USB drive and USB type A port connect devices such as a mouse or a printer RESET button Restores default settings Mounts a Micro SD card for data read/write and project file Micro SD card interface download Note: No Micro SD card interface is available in IT7100S...
- Page 12 equipment. ● The DC power must be isolated from the AC main power supply. To avoid interference, this equipment must not share the same power supply with inductive load circuits (such as a solenoid valve). ● The 24 V power supply cable and communication cables must not be close to cables with strong interference, such as AC power cables and motor drive cables.
- Page 13 Signal Pin No. COM1[RS485] COM1[RS485] COM2 COM3 2 Wires 4 Wires [RS232] [RS485] RS485- RS232 RXD (data reception) RS232 TXD (data transmission) TX+ (transmission positive) GND (signal ground) RS485+ RS485- RX- (reception negative) RS485+ RX+ (reception positive) TX- (transmission negative) ◆...
- Page 14 Pin No. Signal Pin No. Signal Cable connection Inovance H1U/H2U/H3U RS422 IT7070/IT7100 HMI COM1[RS422] communication ports Compatible HMI Note: This cable is not suitable and Port Mitsubishi FX1N/2N/3U/3G RS422 for IT7150E. communication ports HMI user program In the HMI user project, set the COM1 port as “RS422/RS485” ;...
-
Page 15: Ethernet Connection
HMI user program In the HMI user project, set the COM2 port as "RS232"; setting The HMI and PLC must have the same communication protocol and for this cable data format settings. ■ Precautions on Communication Connection 1) Cable requirements: Different cables are required for the connection of different external devices. -
Page 16: Programming Reference
5. Ethernet port or USB port: for uploading/downloading screen program 6. Operating system: Windows 7 or Windows 10 Connect an Inovance PLC to the port of the product as shown in the figure below. ■ Programming Cable (connecting with Inovance PLC) For this product, a miniUSB communication cable is used as the programming cable, which is available as an option from Invoance (order number: 15041200). -
Page 17: Touch Screen Calibration
5 Touch Screen Calibration If the touch screen becomes unresponsive or malfunctions, you can use the touch screen calibration program to fix the problem. ■ Starting the Calibration Program Access the program through the system setup menu: After the HMI is powered on and the screen displays “Long press to enter the Setup screen”... -
Page 19: Warranty Agreement
If there is any problem during the service, contact us or our agent directly. You are assumed to agree on terms and conditions of this warranty agreement by purchase of the product. This agreement shall be interpreted by Inovance Technology.
