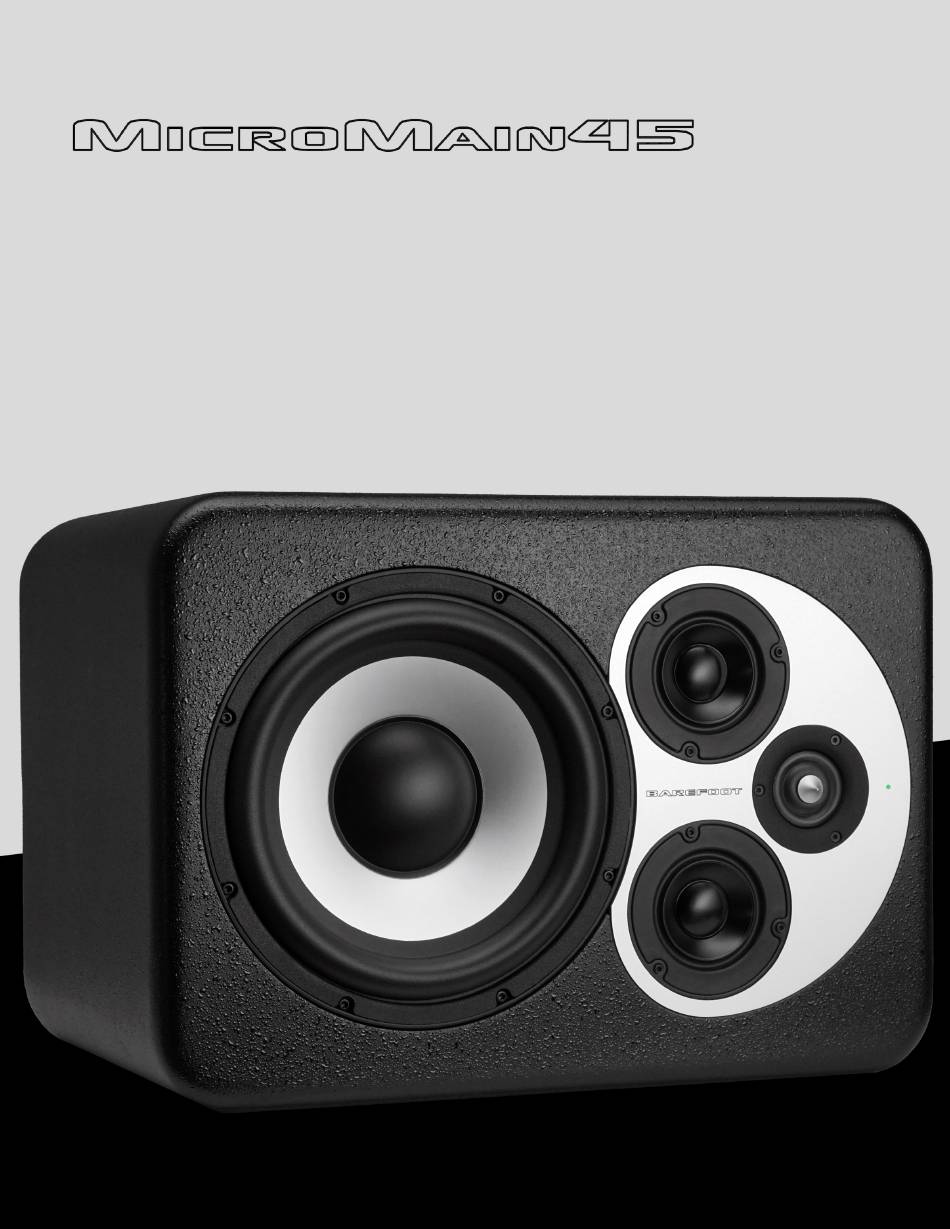

  • Page 1 Owner’s Manual...
  • Page 2 PROTECT YOUR BAREFOOT MONITORS We will keep the model number and date of purchase of your new Barefoot Sound product on file to help you refer to this information in twhe event of an insurance claim such as loss or theft.

  • Page 3: Table Of Contents

    Owner’s Manual CONTENTS Description Warnings! (please read carefully) Inputs and Controls Startup Protection / Limiters Signal Flow Diagram Positioning Widening the Stereo Field Cooling MEME™ MEME™ Voices MEME™ Voicing Frequency Responses MEME™ Voice Selector Connection Cabinet Design Specifications Drawings and Dimensions Limited Warranty Warranty Conditions Obtaining Warranty Service...
  • Page 4 Barefoot Sound’s flagship MiniMain12, the parency, while Barefoot Sound’s state-of-the-art MEME™ MicroMain45 is streamlined to deliver Barefoot’s renowned technology provides four voice models, allowing you to resolution and translation at a more affordable price. This...
  • Page 5 The Mains Voltage Select switch (VAC Select) on the rear panel must be in the 230V position for AC power line voltages over 132 VAC. Connecting the power cord to AC power line voltages over 132 VAC while the VAC Select switch is in the 115V position will damage the amplifier. Such damage is NOT covered under warranty.

  • Page 6: Inputs And Controls

    The analog signal is converted to 24bit/192kHz digital audio via a precision, ultra-high-fidelity analog to digital converter section inside the MicroMain45. [VOICE] 3.5mm stereo phone jack for connection to MEME™ Se- lector Switch. See MEME™ settings and connection details. The default setting with no switch connected is Flat.

  • Page 8: Positioning

    Positioning The acoustic center of the MicroMain45 is located at the center of the tweeter. The MM45 is designed to work equally well as a nearfield or mid-field monitor. The minimum recommended listening distance is 1 meter (39.4”).
  • Page 9 Example: Symmetrical stereo arrangements.

  • Page 10: Widening The Stereo Field

    Since the MicroMain45 has such wide off-axis dispersion, the angle relative to the listener can be changed by up to 10 degrees with less than 1 dB variance in the frequency response across the audible spectrum.
  • Page 11 Vertical Orientation For center channel applications it might be desirable to stand the MicroMain45 in the vertical orientation. This orientation is acceptable, however, it does sacrifice horizontal dispersion. Section 13 shows off-axis frequency response graphs in the horizontal (13.1) and vertical (13.2) planes for the MM45 mounted in the normal horizontal orientation.

  • Page 14: Meme Voices

    MEME™ (Multi Emphasis Monitor Emulation) However, it’s also a fact that crowding your console Barefoot MEME (pronounced “meam” like “team”) with those extra boxes degrades the sound field of technology allows you to box up your secondary the primary reference monitors. Not to mention, these reference monitors for good.

  • Page 15: Specifications

    Specifications Analog Input XLR female, Pin 1 ground, Pin 2 positive, Pin 3 negative Input Impedance = 20k Ohms Input Sensitivity (1m) = 90 dB @ -15 dBV (pass band) Analog to Digital Word Length: 24 bit Conversion Sample Rate: 192 kHz Oversampling = 128x Signal/Noise ≥...

  • Page 18: Limited Warranty

    Shipping fees incurred from returns for under-warranty liable for any loss, cost, expense, inconvenience or service in the first 30-days will be paid by BAREFOOT damage that may result from use or inability to use SOUND. All shipping fees both to and from BAREFOOT the product.

  • Page 19: Post Warranty Repair

    BAREFOOT shipped part(s) will be billed at the then current price. SOUND will not accept any shipments without a RMA 5. BAREFOOT SOUND will pay for shipping to and from number. the customer only within the first thirty days following 2.

  • Page 20: Warranty Exclusions

    BAREFOOT SOUND will not warrant any problems website is correct. Service Request In order to serve you better, please complete the service request form in the following link for your Barefoot Sound studio monitors. Once submitted and reviewed, a service representative will contact you. https://barefootsound.com/service-request/...
  • Page 21 Barefoot Sound LLC barefootsound.com...
