Channel Master CM-3098XSPA Instruction Sheet

CM-3098XSPA
Instruction Sheet

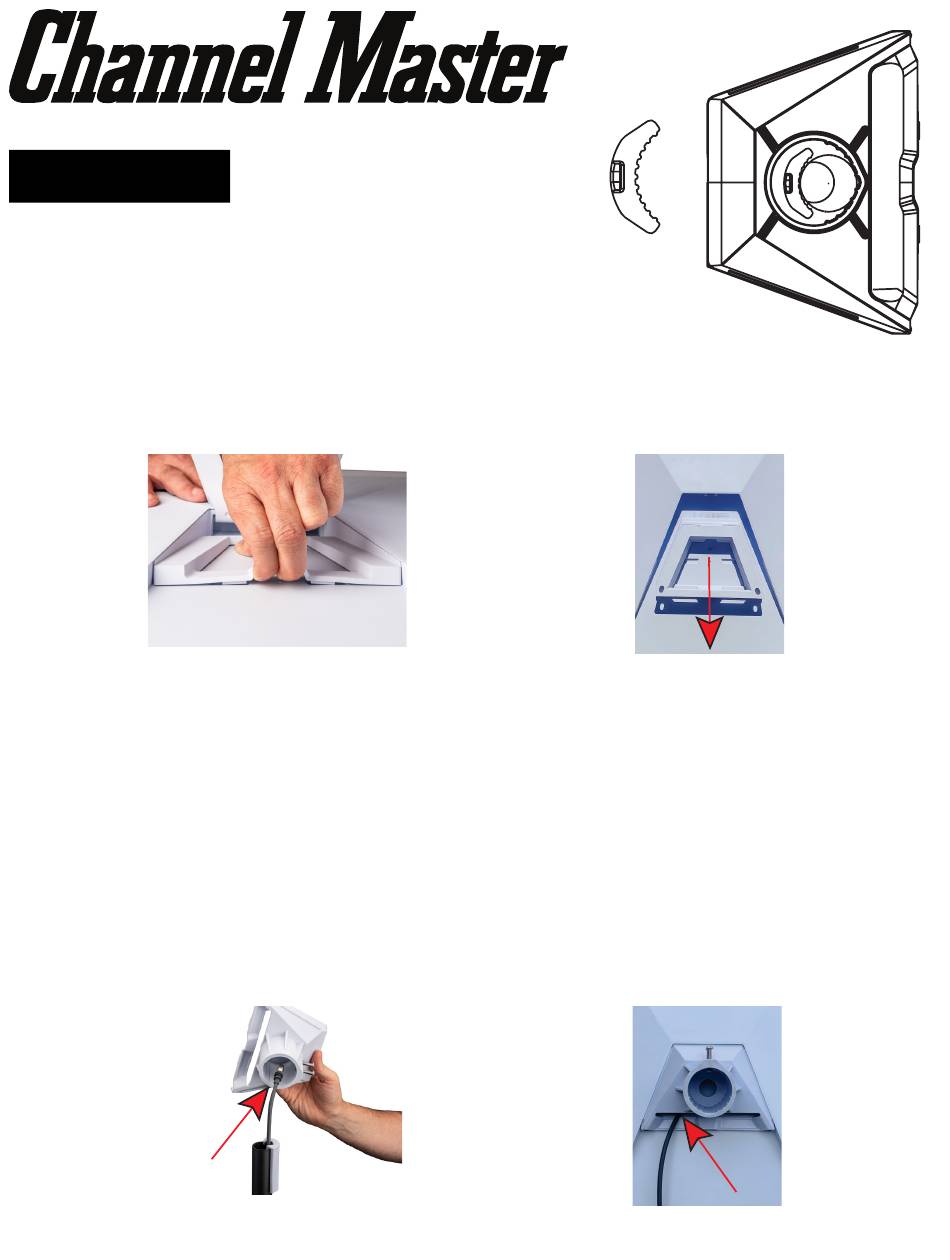

Step 1: Remove the Kickstand or Mount from the Starlink Dish.
• Lift the bottom section of the kickstand to unseat the two tabs from their recessed slots, as shown in Figure 1.
• Slide the kickstand down and away from the Starlink Dish to remove it, as shown in Figure 2.
Fig. 1
Step 2: Route the Starlink Cable Through the Adapter.
Option A: Route Cable Through the Pole
• Feed the cable up through the pole or mast.
• Route the cable through the center of the adapter as shown in Figure 3.
• Connect the cable to the Starlink Dish. Ensure the connector clicks into the port on the dish and is weather-sealed by
the rubber boot on the connector.
Option B: Route Cable on the Outside of the Pole
• Feed the cable through the slot in the adapter as shown in Figure 4.
• Connect the cable to the Starlink Dish. Ensure the connector clicks into the port on the dish and is weather-sealed by
the rubber boot on the connector.
Fig. 3
ChannelMaster.com
© 2024 Channel Master. Channel Master is a registered trademark. Specifications subject to change. All rights reserved. © 2024 Channel Master. Channel Master es una marca registrada. Especificaciones sujetas a cambio. Todos los derechos
reservados. © Channel Master, 2024. Channel Master est une marque déposée. Les caractéristiques peuvent être modifiées sans préavis. Tous droits réservés. Pub_CM-3098XSPA_2024
Fig. 2
Fig. 4
