- Page 1 PixxSplitter DR8+ User manual...
-
Page 2: Table Of Contents
PixxSplitter DR8+ For your own safety, please read this user manual and warnings carefully before installation. Contents Decription ........................3 Data Sheet ........................4 Connection ......................... 5 Status Display ......................7 Settings ........................8 Input lock ........................8 Menu guide ......................... 9 Set number of Pixel .................... -
Page 3: Decription

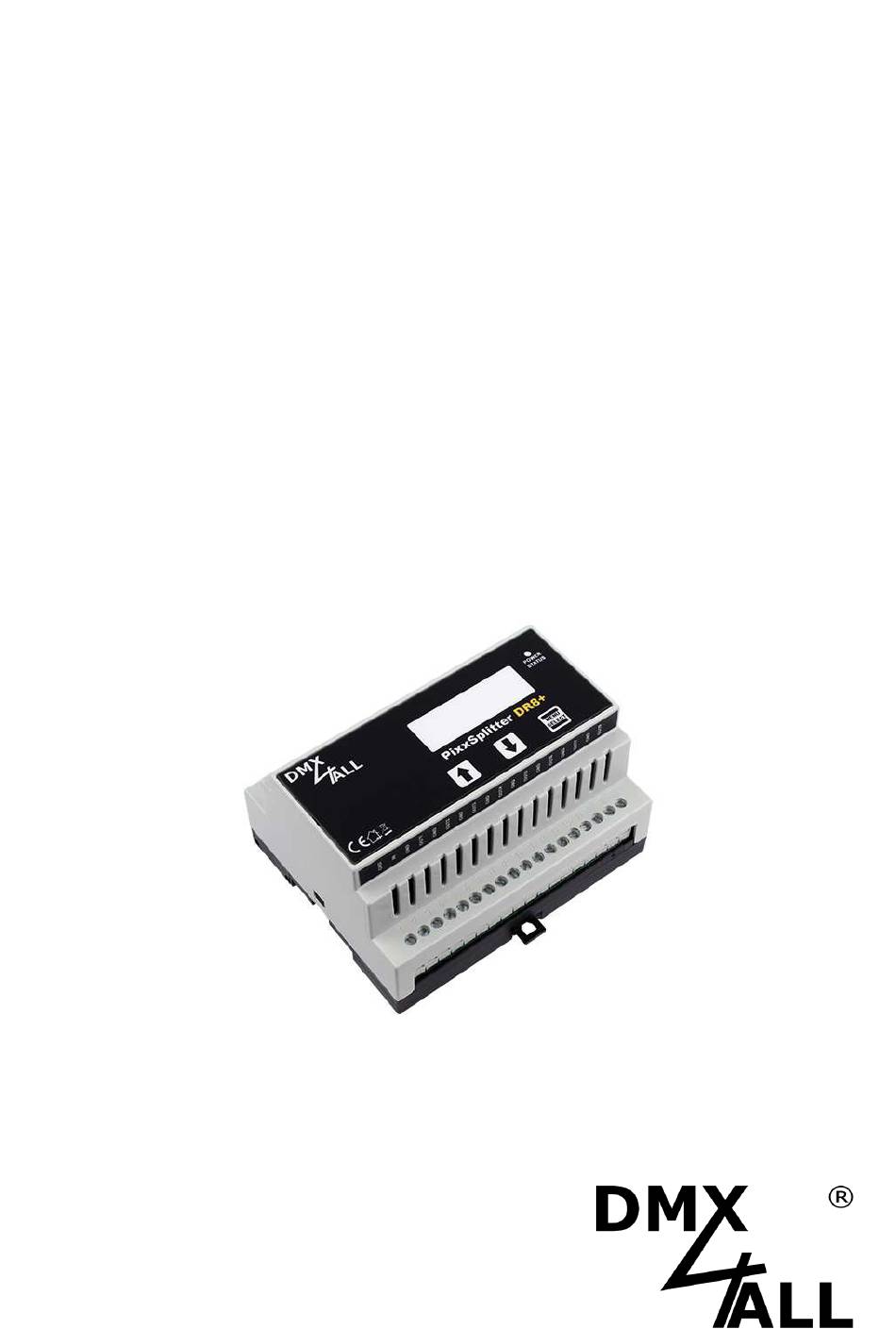

PixxSplitter DR8+ Decription The PixxSplitter DR8+ is a manifold for a digital LED signal to up to 8 connected digital LED-Strips. Up to 999 RGB or RGBW pixels can be connected to each output. The input signal, coming from a pixel controller, contains control information for all connected pixels. -
Page 4: Data Sheet
PixxSplitter DR8+ Data Sheet Power supply: 8-24V / 100mA 5V / 100mA via Mini-USB connector Input: Control signal for digital LED-Stripes Output: 8x control signal for digital LED-Stripes Compatible LED-Types: SK6812 GS8208 INK1002, INK1003 WS2811, WS2812(B) Color sequence: RGB / RGBW (adjustable) Number Pixel/Output: 1 - 999 Pixel Display:... -
Page 5: Connection
PixxSplitter DR8+ Connection Power supply 8-24V POWER 8-24V PixxSplitter DR8 Pixel Controller DATA POWER LED... - Page 6 PixxSplitter DR8+ Power supply 5V or USB PixxSplitter DR8 Pixel Controller DATA POWER LED...
-
Page 7: Status Display
PixxSplitter DR8+ Status Display The integrated RGB-Status Display is a multifunctional display. Status Display 1100 . Power supply not connected / Display is off No signal detected at input GREEN Signal detected at entry Device is ready for operation... -
Page 8: Settings
PixxSplitter DR8+ Settings The settings on the PixxSplitter DR8+ can be made via the 7-segmant display and the 3 buttons. 7-Segment-Display Status Display 1100 . Input lock Button Button Button MENU Input lock After switching on the PixxSplitter DR8+ or if no button is pressed for ca. 15 seconds, the input lock is automatically activated and the display shows the set number of pixels for the first output. -
Page 9: Menu Guide
PixxSplitter DR8+ Menu guide Several menu items are settable which can be set, using the buttons on the display. The menu item is displayed with a letter codes followed by the set value. The letter codes are assigned as follows: color number AutoOff time The menu navigation is shown as follows:... -
Page 10: Set Number Of Pixel
PixxSplitter DR8+ Set number of Pixel The number of pixels per output can be set from 1 up to 999. To select the output for which output the input is made please use the MENU button. The number before the dot corresponds to the output (1-8). The number after the dot corresponds to the set number of LEDs (001-999). -
Page 11: Display Switch Off
PixxSplitter DR8+ Display Switch Off The displays on the PixelSplitter DR8+ can be switched off, so there are no disturbing light sources during the operation. The automatically switch off is set within the menu oFF. Pressing the button adjusts the switch off time range between 1 and 9 minutes or OFF (-). -
Page 12: Firmware-Update
Please proceed as following: Turn off the device Press UP and DOWN simultaneously Meanwhile connect the PixxSplitter DR8+ to PC with a USB-Cable Start Update-Software DMX4ALL USB-Updater Select the PixxSplitter DR8+ from the list Click Firmware-Update Select and confirm Firmware-File (.bin) -
Page 13: Factory Reset
PixxSplitter DR8+ Factory Reset Read all the steps carefully before carrying out the factory reset. To set the PixxSplitter DR8+ into the factory settings please proceed as follows: Switch on the device (power supply on) Switch within the menu to oFF (Display Switch Off) Press and hold all buttons simultaneously ( and MENU) until - - - -... -
Page 14: Accessories
PixxSplitter DR8+ Accessories Digital LED Stripes / Pixel Stripes - Digital LED Stripe SK6812 - Digital LED Stripe WS2812(B) - Digital LED Stripe GS8208 USB-Cable A → Mini B 5pin. 5V/1,5A Mini-USB Power Supply... -
Page 15: Ce-Conformity
PixxSplitter DR8+ CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary. -
Page 16: Risk-Notes
PixxSplitter DR8+ Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary. Initiation risk: For the installation of the board, the board must be connected and adjusted to foreign components according to the device paperwork. - Page 17 Germany Last changes: 10.07.2024 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
