OmniMetrix TrueGuard-PRO PowerZone 410 Install Manual

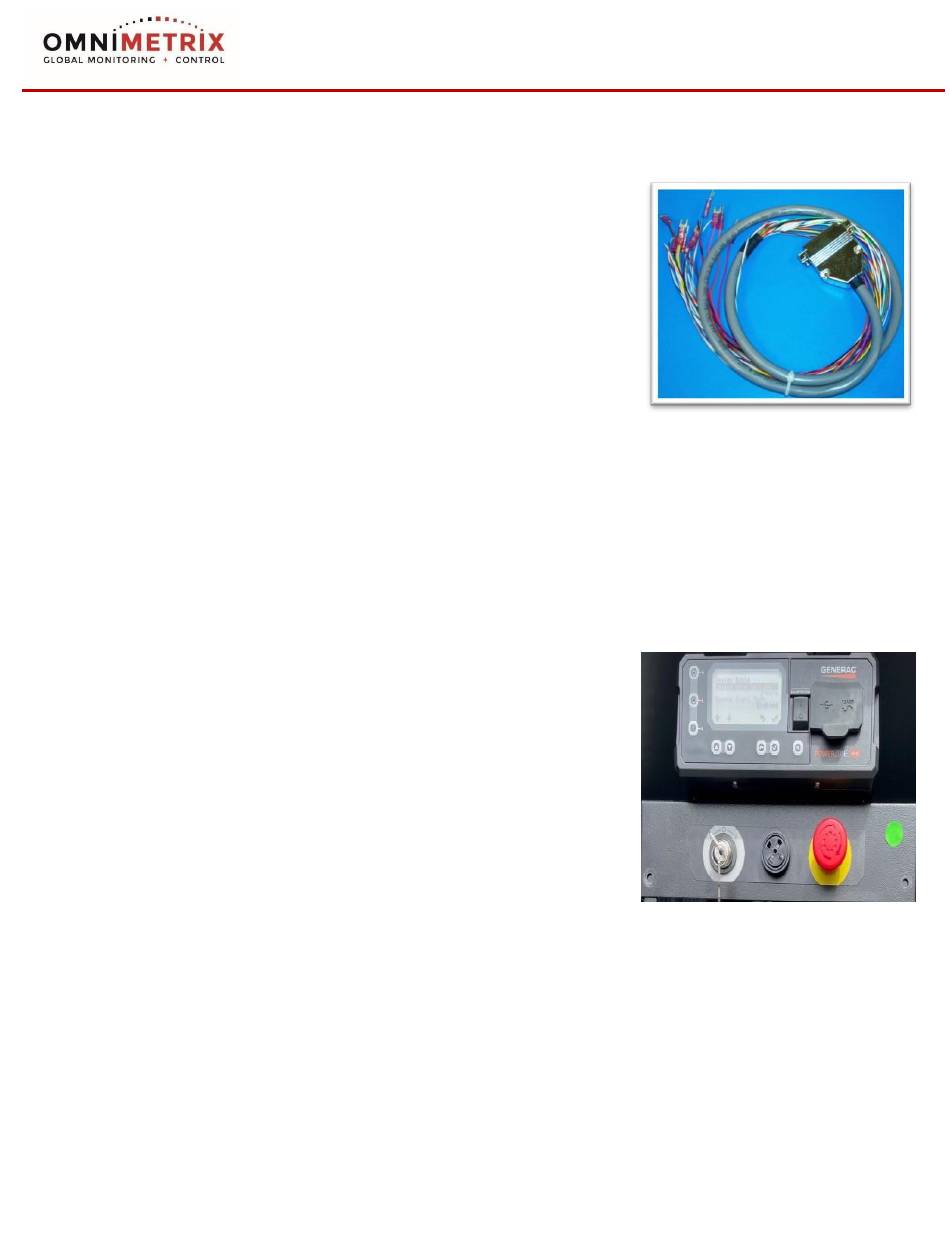

1. Unpack the monitor, antenna and the data/power cable. The 25-pin
connector plugs onto the front of the OmniMetrix® monitor. This cable
includes wires to power the monitor as well as wires for alarm inputs,
relay outputs and analog inputs. Take a moment to inspect all
components to verify there is no shipping damage.
2. Place the antenna vertically on the roof of the generator and route the
antenna cable into the area of the generator control. The antenna used
for transmitting must be installed to provide a separation distance of at
least 20 cm from all persons and must not transmit simultaneously with
any other antenna transmitters. BE SURE to provide a drip loop lower
than the monitor to keep water from running down the antenna cable
into the monitor connection.
3. Attach the monitor via its magnetic feet, on top of the engine
controller or other appropriate location. Horizontal surfaces are best, but
the unit may be mounted vertically or even upside down if necessary.
Note: If mounted vertically, install the monitor with the cables down to
prevent water from entering the enclosure.
4. Route the data/power cable through the cable entry on the bottom of
the generator control.
5. Wiring options for PowerZone 410,
1. J4 Connection: connect OMN Red (+12VDC) to J4-3 and Black
(GND) to J4-2, OMN White (Data+) To J4-6 and Green (Data-) to
J4-5 as shown in the photo.
2. Terminal Strip: connect OMN Red (+12VDC) to TB2-3 and Black
(GND) to TB2-2, OMN White (Data+) To TB2-6 and Green
(Data-) to TB2-5 as shown in the photo.
6. On Controller, verify that Baud Rate is set to 9600 and Parity to None
7. Attach the antenna cable to the front of the monitor and tighten thumb
tight.
8. Turn on the monitor and confirm that the LEDs light up and blink. If
not, check for power on the terminal strip. If, after 5 minutes, the only
LED lit is the Power LED, check the antenna mount and cable
connection.
9. Allow 15 minutes for the monitor to log into the network and then call
OmniMetrix at 770-209-0012 to confirm installation. Access to machine
data is through the OmniView® web interface at
www.omnimetrix.net. Contact OmniMetrix for login instructions and web
training.
TrueGuard-PRO ™
P a g e | 1
PowerZone 410
RS-485 Modbus
Data / Power Cable
PowerZone 410 Controller
