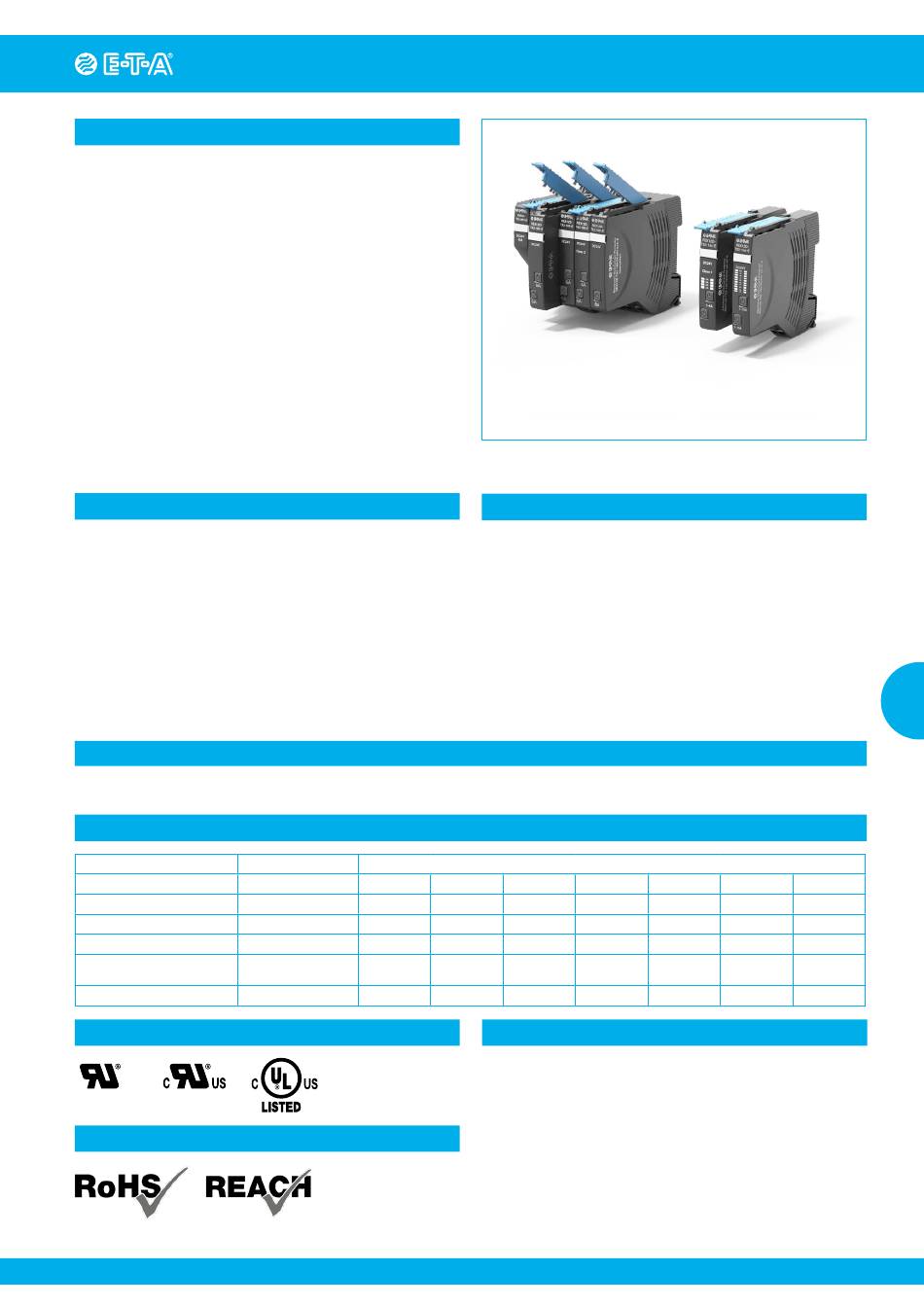

E-T-A REX12-T-E Series Manual

REX12-Tx-E electronic circuit protector
Description
The compact and flexible all-in-one solution REX consists of several
coordinated modules. It comprises the EM12-T type supply modules
for the plus and minus potential, via a single or double channel
REX12-T electronic circuit protector, which can be mounted side by
side in any number, and the PM12-T potential extension modules
for plus and minus multiplication. The 12.5 mm slim modules are
designed completely in push-in technology and thus allow a tool-free
and time-saving wiring.
The protection modules can be mounted on the mounting rail side by
side in combination with the EM12-T and the PM12-T, just as needed.
Furthermore, no additional accessories are required, as they can
be connected electrically via flap-hinged mechanism. The REX12-T
circuit protector offers selective overcurrent protection, by reacting
faster to short circuits and overload than the connected switch
mode power supply. Capacitive loads up to 20.000µF are switched
on without any problem. The circuit protectors are available in all
common fixed and adjustable current ratings ranging from 1 A to 10 A.
Besides the UL508listed approval, UL 121201, Class Division and
NEC Class2, REX12-T exclusively meets the requirements of cable
protection according to EN60204- 1.
Features
Combination of supply modules, overcurrent protection and
l
power distribution
Selective load protection via electronic trip curve
l
No accessories required for connecting the components
l
Width per channel only 12.5 mm (1-channel) or 6.25 mm
l
(2-channels)
Fixed and adjustable current ratings 1 A – 10 A
l
Integral fail-safe element, adjusted exactly to current rating
l
Switching capacitive loads up to 20,000 µF
l
Manual ON/OFF/Reset momentary switch
l
Clear status indication by means of LED and signal contact
l
Connection via push-in terminals including orange release buttons
l
Preferred types – for more details on all configurations please see page 4
Preferred types are E-T-A products most frequently used by E-T-A
customers. We produce our preferred types in very high quantities. At
Preferred types
Preferred types Short description
REX12-TA1-E 1-channel
REX12-TA1-107-DC24V-
REX12-TA2-E 2-channel
REX12-TA2-107-DC24V-
2-channel,
REX12D-TE2-E
adjustable
REX12D-TE2-100-DC24V-
Approvals
NEC Class2
Conformity
2045
Benefits
Saves costs, as no further accessories are required
l
Saves 50 % time by way of innovative and flexible mounting and
l
connection technology
Saves space, as modules are only 12.5 mm wide
l
Flexibility by simple mounting/demounting and modularity
l
Cuts inventory costs, as only one product is required for all
l
current ratings
the same time, our preferred types have shorter delivery times than
other versions.
Preferred current rating (A)
2 4 6
x x x
2 4 6
1A – 10A
x
Data sheet
The current data sheet is available on our website: www.e-t-a.de/e359
www.e-t-a.de
10 2/2 4/4
x
10 2/2 4/4
x x
4
6/6
6/6
x
1
