Slitting Blade
Adjustment
"V" Block
OPERATION
Ringing
1. Adjust Ring Blade Depth Adjustment knob as
needed. Rotate toward "+" to increase depth.
Rotate toward "-" to decrease depth.
2. Open jaw and insert cable into cable holder
(ringing) according to cable diameter.
3. Rotate tool around cable 2-3 times. Open jaw
and remove cable. Remove jacket.
www.cleerline.com | 1-866-469-2487

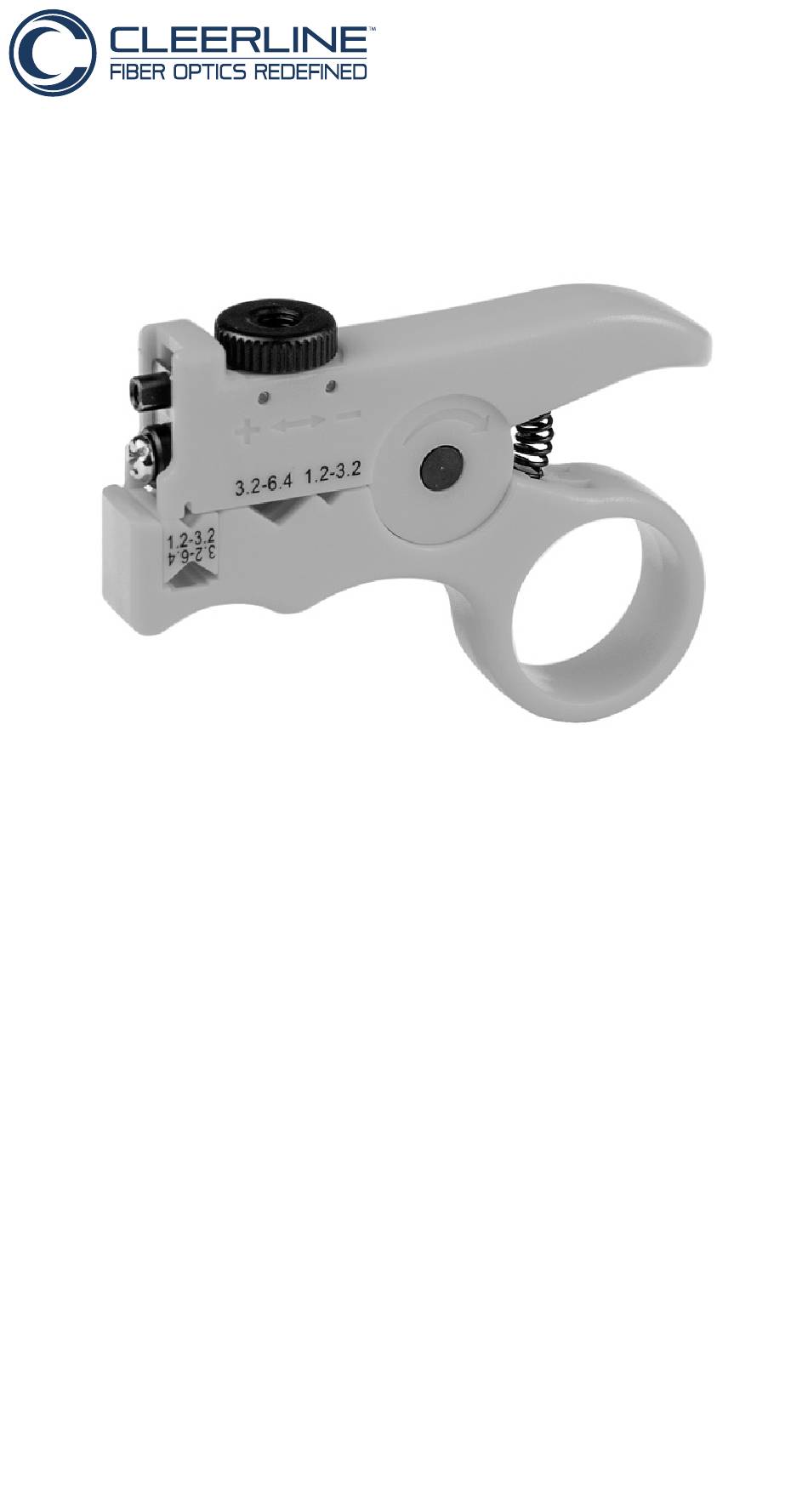

SSF-FCS1264
Ring Blade Depth
Adjustment
Cable Holder (Ringing)
Advertisement
Summary of Contents for Cleerline SSF-FCS1264
- Page 1 Rotate toward “+” to increase depth. Rotate toward “-” to decrease depth. 2. Open jaw and insert cable into cable holder (ringing) according to cable diameter. 3. Rotate tool around cable 2-3 times. Open jaw and remove cable. Remove jacket. www.cleerline.com | 1-866-469-2487...
- Page 2 SPECIFICATIONS Cut Type Slit or Ring Cable Type Jacketed Cable Diameter 1.2-6.4 mm / 0.05-0.25 in 72 x 14 x 54 mm Tool Size 2.8 x 0.6 x 2.1 in Weight 22.8 g / 0.05 lbs www.cleerline.com | 1-866-469-2487...
